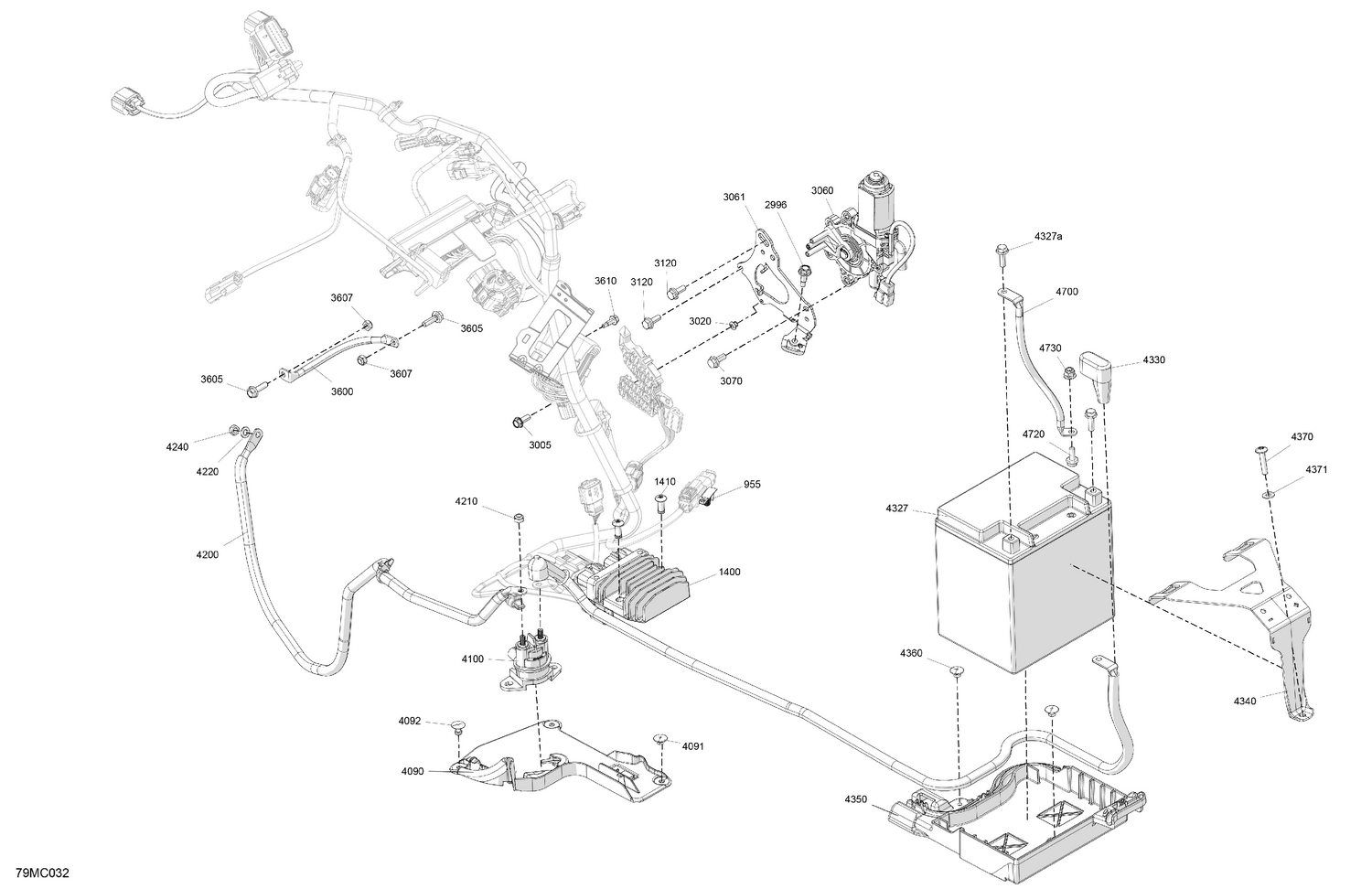

08- Electric - Lower Section
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 955 | 515178223 | Clip Connector |
| 1400 | 710010539 | Voltage Regulator This part replaces 710005569. |
| 1410 | 293150182 | Monobolt Rivet 6.4 |
| 2996 | 250000911 | Hex. Flange Screw M5 X 16 |
| 3005 | 250001062 | Hex. Flange Screw M6 X 16 |
| 3020 | 390402200 | Pop Rivet 3/16" |
| 3060 | 515180200 | Motor Ass'y |
| 3061 | 515179332 | Stop Plate |
| 3070 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3120 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 3600 | 515178338 | Ground Wire |
| 3605 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3607 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 | 250000911 | Hex. Flange Screw M5 X 16 |
| 4090 | 515178244 | Starter Relay Support |
| 4091 | 293150103 | Pop Rivet 3/16" |
| 4092 | 293150104 | Pop Rivet 3/16" |
| 4100 | 278003012 | Starter Relay |
| 4200 | 515178336 | Battery Wire |
| 4210 | 232561434 | Elastic Stop Nut M6 |
| 4220 | 234061410 | Flat Washer 6 mm |
| 4240 | 232561434 | Elastic Stop Nut M6 |
| 4327a | 250000282 | Battery Bolt Kit |
| 4330 | 710001817 | Protector Cap |
| 4340 | 515178658 | Battery Strip |
| 4350 | 515178659 | Battery Support Under |
| 4360 | 293150103 | Pop Rivet 3/16" |
| 4370 | 250000843 | Torx Truss Screw M6 X 30 |
| 4371 | 224061121 | Flat Washer |
| 4700 | 515178564 | Cable |
| 4720 | 207661644 | Hex. Flange Screw M6 X 16 |
