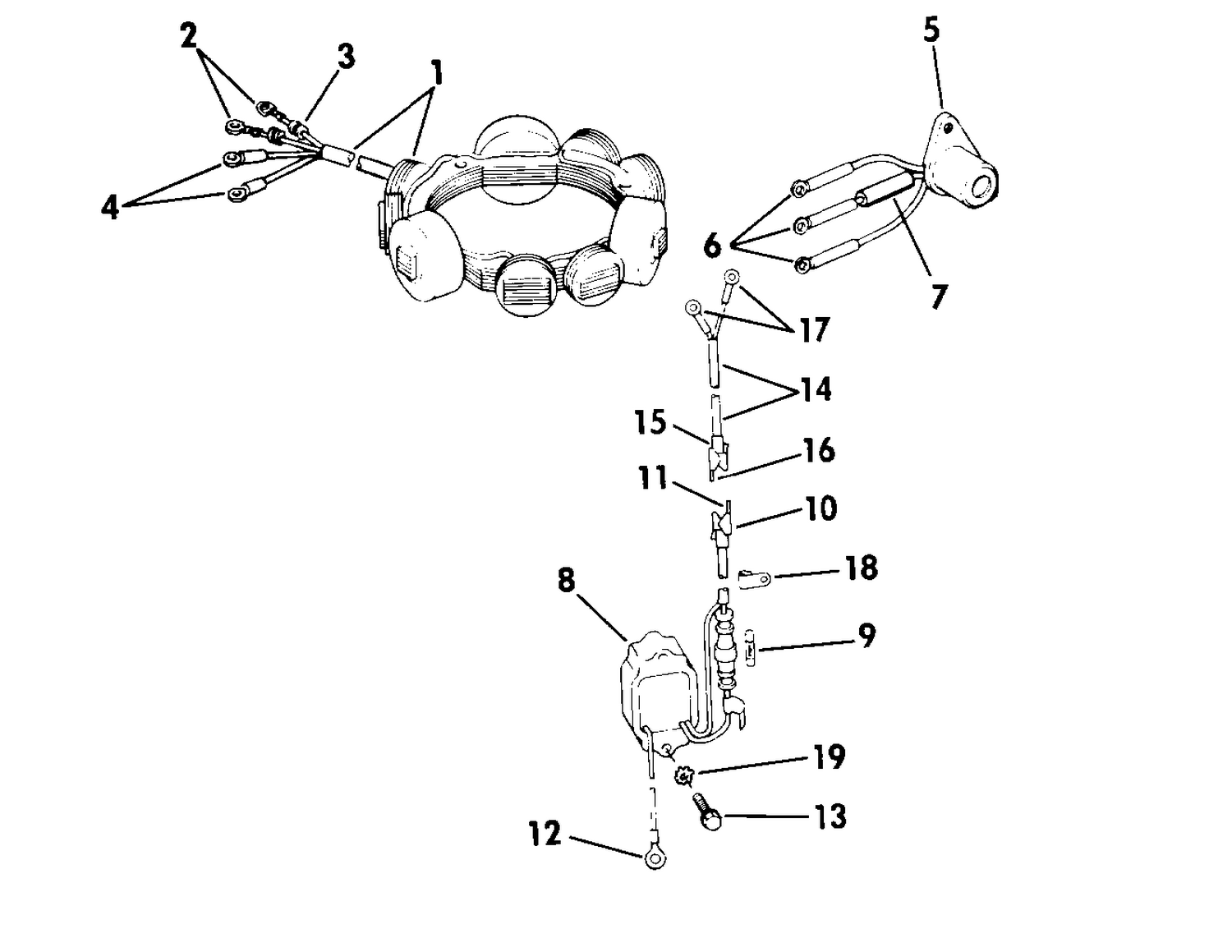

12 AMP ALTERNATOR CONVERSION KIT 50-70 & 75 HP
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0581301 | STATOR ASSY., 12 amp |
| 1 | 0581302 | STATOR ASSY., 12 amp |
| 7 | 0511050 | TUBE, Heat shrink |
| 8 | 0581580 | VOLTAGE REGULATOR This part replaces 0581307. |
| 13 | 0316565 | SCREW ,Box to bracket |
| 14 | 0172761 | LEAD ASSEMBLY |
| 18 | 0330151 | CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 0172651 | 0172651 | ALTERNATOR CONVERSION KIT, 12 amp |
| 0172652 | 0172652 | ALTERNATOR CONVERSION KIT, 12 amp |
