Home / BRP / Can-Am SXS / 2025 / 002 - SSV - North America - Defender HD7 Series / Defender MAX HD7 - BASE - North America, 2025 / North America - Defender Max - HD7 - BASE - 8ZSA - Compass Green - 62" Width CALI, 2025 0008ZSA00 / 07- Body - Skid Plate

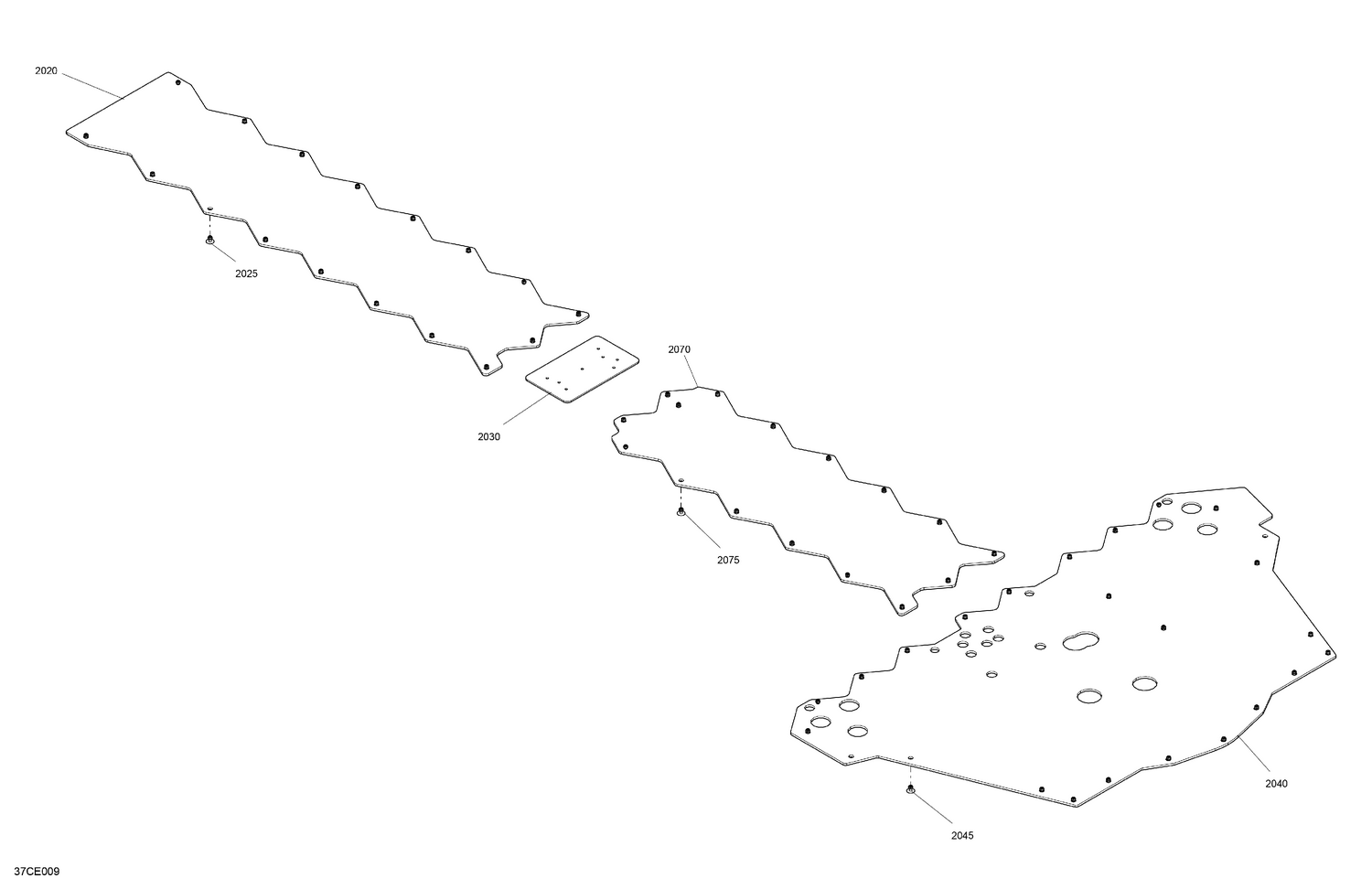

07- Body - Skid Plate

07- Body - Skid Plate

Parts (6)

RefPart NumberDescription
2020 705017204 Central Skid Panel
2025 293150292 Black, Pop Rivet 3/16 X ,550
2030 705010884 Connection Plate
2040 705017205 Rear Skid Panel
2045 293150292 Black, Pop Rivet 3/16 X ,550
2070 705010588 Rear Central Skid Plate
