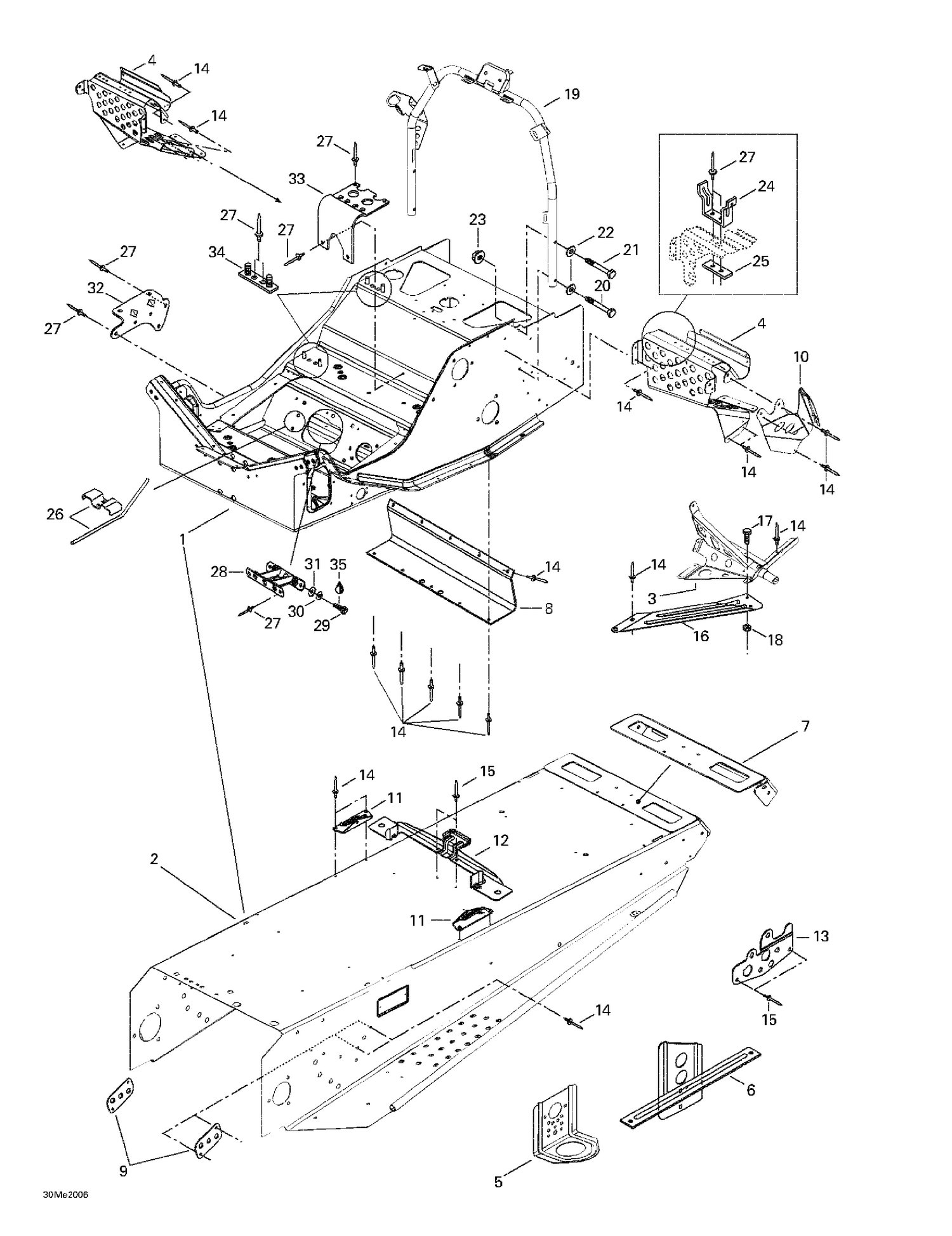

09- Frame And Accessories
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Tunnel |
| 3 | 518320506 | RH Footrest Support |
| 4 | 518318933 | RH Front Footrest |
| 5 | 518312495 | Front Bracket |
| 6 | 518318903 | Rear Bracket R.H |
| 7 | 518321302 | Rear Cap |
| 8 | 518321867 | Deflector |
| 9 | 518201321 | REINFORCEMENT PLATE - Call your local BRP dealership |
| 10 | 518308715 | Upper Plate R.H |
| 11 | 517266900 | RH Tank Bracket |
| 12 | 518317506 | Seat Bracket |
| 13 | 518321882 | RH Rear Bracket |
| 14 | 390402200 | Pop Rivet 3/16" |
| 15 | 390402400 | Pop Rivet 3/16" |
| 16 | 518321958 | RH Reinforcement Plate |
| 17 | 207151644 | Hex. Screw M5 X 16 |
| 18 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 19 | 518321428 | Handle Steering Support |
| 20 | 207064044 | Hex. Screw M6 X 40 |
| 21 | 207063544 | Hex. Flange Screw M6 X 35 |
| 22 | 234061410 | Flat Washer 6 mm |
| 23 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 24 | 518202100 | Belt Guard Bracket |
| 25 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 26 | 518313700 | Guide Rope |
| 27 | 390402200 | Pop Rivet 3/16" |
| 28 | 518304741 | Reinf. Plate |
| 29 | 207182044 | Hex. Screw M8 X 20 |
| 30 | 234181401 | Lock Washer 8 mm |
| 31 | 224081201 | FLAT WASHER - Call your local BRP dealership |
| 32 | 518206300 | Muffler Support |
| 33 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 34 | 518315300 | Support Plate |
| 517267000 | LH | Tank Bracket 517267000 |
| 518308714 | Upper | Plate L.H 518308714 |
| 518318904 | Rear | Bracket L.H 518318904 |
| 518318934 | LH | Front Footrest 518318934 |
| 518318934 | Repose-Pied | Avant GA 518318934 |
| 518320507 | LH | SOOTREST SUPPORT - Call your local BRP dealership 518320507 |
| 518320507 | Support | Repose-Pied GA - Appelez votre concessionnaire BRP local 518320507 |
| 518321883 | LH | Rear Bracket 518321883 |
| 518321959 | LH | Reinforcement. Plate 518321959 |
