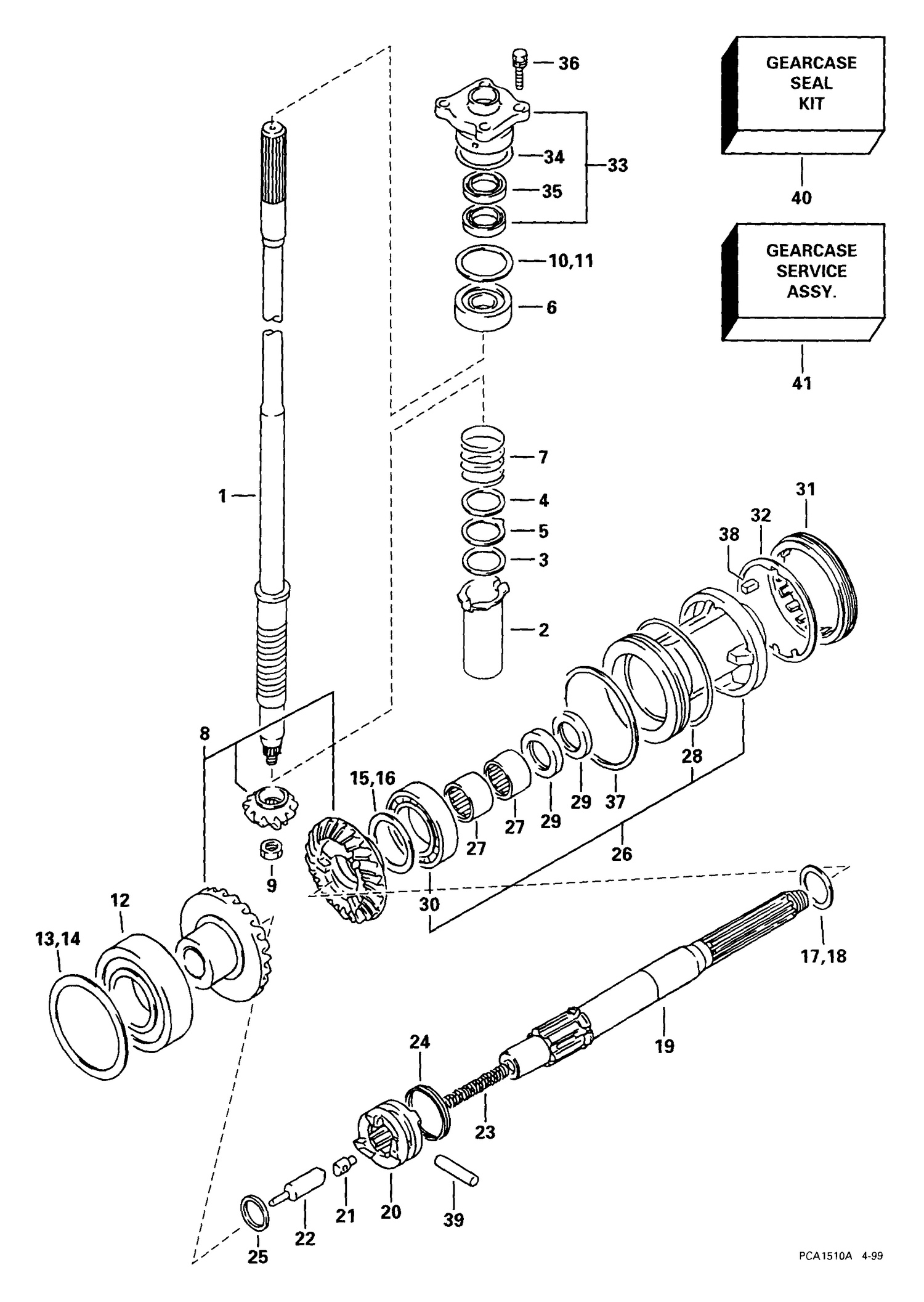

DRIVESHAFT & PROPELLER SHAFT
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030914 | DRIVESHAFT ASSY. |
| 2 | 5030915 | COLLAR, Driveshaft |
| 3 | 5030916 | PROTECTOR, Driveshaft collar |
| 4 | 5030455 | WASHER, Driveshaft |
| 5 | 5030474 | WASHER, Driveshaft |
| 6 | 5030532 | BEARING |
| 7 | 5030598 | SPRING, Driveshaft |
| 8 | 5030917 | GEAR & PINION ASSY. |
| 9 | 5030421 | NUT |
| 10 | 5030975 | SHIM KIT, Driveshaft |
| 12 | 5030533 | BEARING, Forward gear |
| 13 | 5030918 | SHIM KIT, Forward gear |
| 15 | 5030919 | SHIM KIT, Reverse gear |
| 17 | 5030920 | THRUST WASHER KIT |
| 19 | 5030921 | PROPELLER SHAFT ASSY. |
| 20 | 5030922 | SHIFTER, Clutch dog |
| 21 | 5030518 | PIN |
| 22 | 5030923 | ROD, Push |
| 23 | 5030595 | SPRING |
| 24 | 5030599 | SPRING, Clutch dog pin |
| 25 | 5030443 | WASHER |
| 26 | 5030910 | BEARING HSG., Propeller shaft |
| 31 | 5030911 | STOP |
| 32 | 5030912 | WASHER |
| 33 | 5030913 | BEARING HSG & SEAL Assy |
| 36 | 5030398 | BOLT |
| 37 | 5030457 | SPACER |
| 38 | 5030592 | KEY, Bearing housing |
| 39 | 5030510 | PIN, Clutch dog |
| 40 | 5030973 | GEARCASE SEAL KIT |
