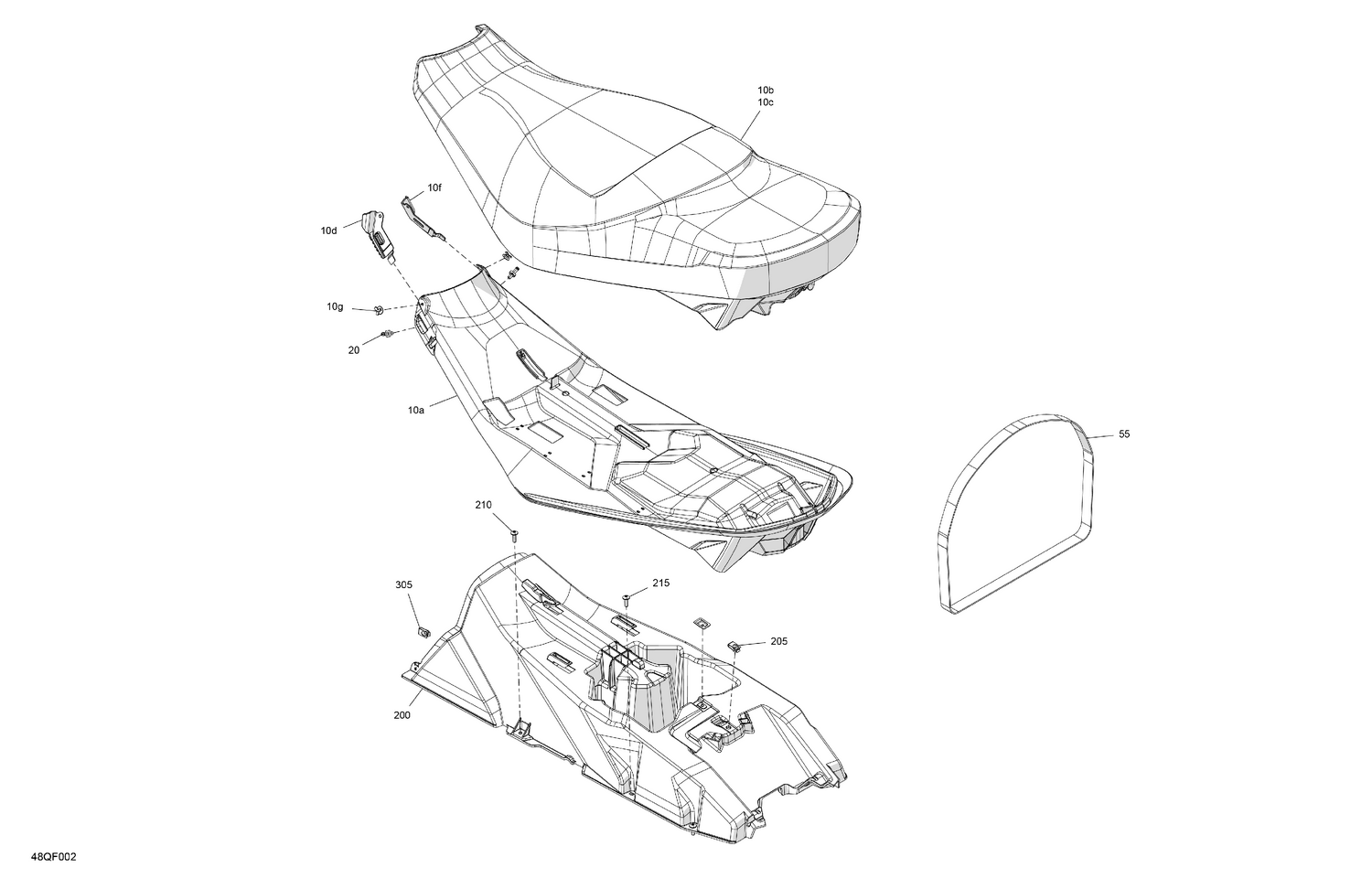

07- Body - Seat
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 510007793 | Foam Seat |
| 10c | 510007748 | Seat Cover |
| 10d | 510006530 | LH Seat Latch |
| 10f | 510006531 | RH Seat Latch |
| 10g | 293150222 | Pop Rivet 3/16" |
| 20 | 510007411 | Seat Pin |
| 200 | 510007687 | Seat Anchorage |
| 205 | 250000958 | Panel Nut M5 X 0.8 |
| 210 | 250000984 | Hex. Torx Screw M6 X 20 |
| 215 | 517305109 | Rivet Plate |
