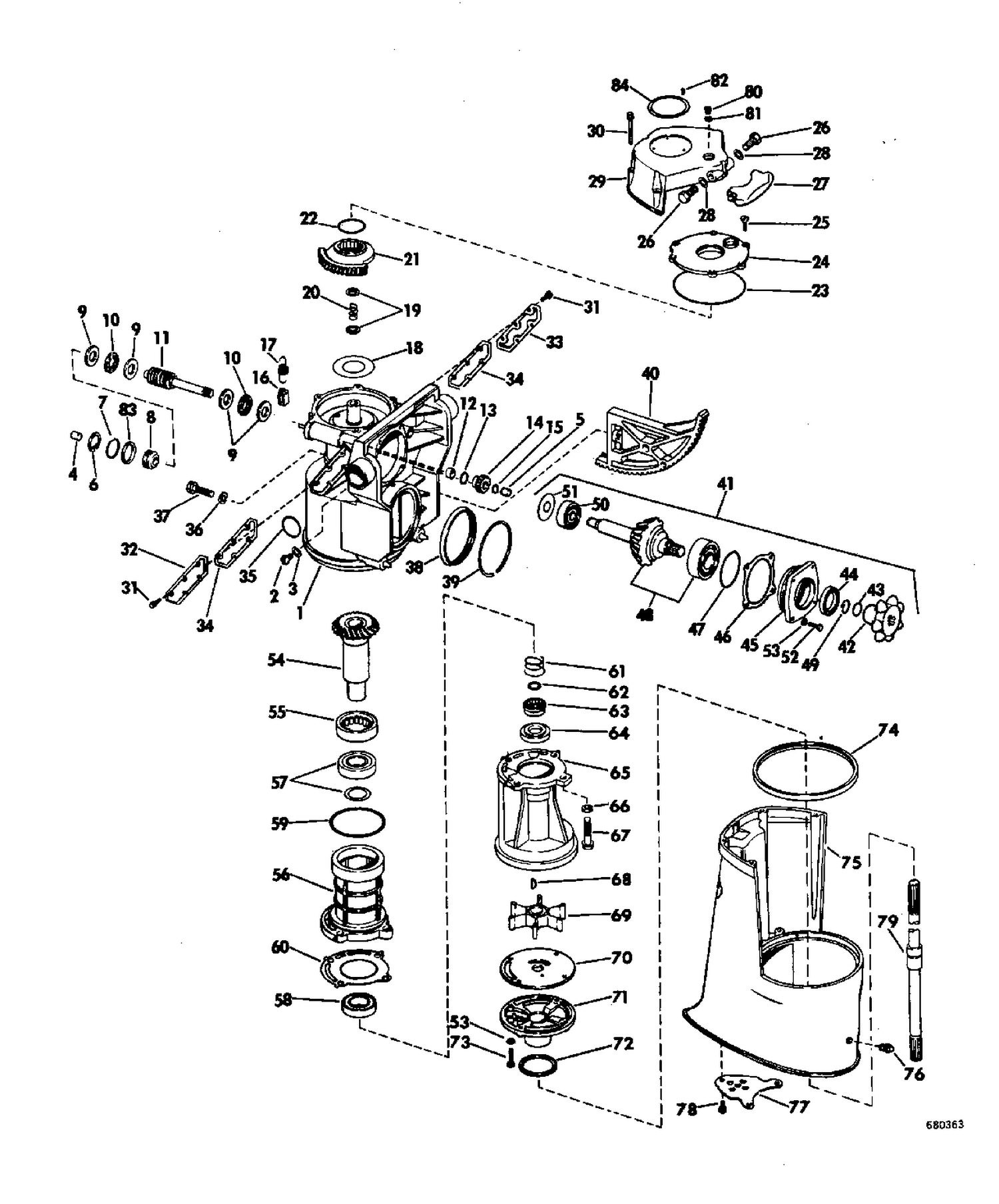

| Ref | Part Number | Description |
|---|
| 1 |
0980804 |
GEAR HOUSING & BUSHING ASSY This part replaces 0382340. |
| 4 |
0310962 |
PLUG, Rear |
| 5 |
0310963 |
PLUG, Front |
| 6 |
0308625 |
RETAINING RING |
| 7 |
0308624 |
O-RING |
| 8 |
0384386 |
RETAINER BUSHING & SPACER ASSEMBLY This part replaces 0308594. |
| 9 |
0312815 |
THRUST WASHER, Worm gear |
| 11 |
0313234 |
SORM GEAR,Steering |
| 12 |
0308883 |
BUSHING |
| 14 |
0313235 |
GEAR |
| 15 |
0911317 |
RETAINING RING, Shaft This part replaces 0313236. |
| 16 |
0909550 |
GUIDE, Cable This part replaces 0308450. |
| 17 |
0308896 |
SPRING |
| 18 |
0313220 |
SHIM |
| 19 |
0309018 |
WASHER |
| 20 |
0309019 |
SPRING |
| 21 |
0313183 |
WORM WHEEL |
| 23 |
0313175 |
O RING, Cover |
| 24 |
0313228 |
COVER, Gear housing |
| 25 |
0308684 |
SCREW, Cover to housing |
| 27 |
0379259 |
BUMPER ASSEMBLY |
| 28 |
0307708 |
RONDELLE GROWER |
| 29 |
0980758 |
COVER,Exhaust housing This part replaces 0382463. |
| 30 |
0981185 |
SCREW, Cover to base This part replaces 0308686. |
| 32 |
0308591 |
COVER,Starboard |
| 33 |
0308699 |
COVER,Port |
| 34 |
0308592 |
GASKET, Water cover |
| 35 |
0308626 |
O RING |
| 36 |
0120177 |
L'WASHER, Alternator to brkt |
| 37 |
0308843 |
SCREW, Gearcase to housing |
| 38 |
0308768 |
EXHAUST SEAL |
| 39 |
0308590 |
SPRING, Seal |
| 40 |
0313223 |
TILT QUADRANT |
| 41 |
0382219 |
BALL GEAR,Shaft & bearing |
| 42 |
0314579 |
BALL GEAR, Shaft This part replaces 0313157. |
| 44 |
0981268 |
SEAL, Bearing retainer This part replaces 0313191. |
| 45 |
0313184 |
BEARING RETAINER |
| 46 |
0313202 |
SHIM, Retainer hsg. 0.002" |
| 46 |
0313203 |
SHIM, Retainer hsg. 0.003" |
| 46 |
0313204 |
SHIM, Retainer hsg. 0.004" |
| 46 |
0313205 |
SHIM, Retainer hsg. 0.005" |
| 46 |
0313206 |
SHIM, Retainer hsg. 0.010" |
| 47 |
0308621 |
O RING, Retainer to housing |
| 48 |
0383116 |
SHAFT & BEARING This part replaces 0382912. |
| 49 |
0314295 |
RETAINER, O-ring |
| 50 |
0375761 |
BEARING, Roller |
| 51 |
0313162 |
SHIM BEARING TO HOUSING, .002" |
| 51 |
0313163 |
SHIM BEARING TO HOUSING, .003" |
| 51 |
0313164 |
SHIM BEARING TO HOUSING, .004" |
| 51 |
0313165 |
SHIM BEARING TO HOUSING, .005" |
| 51 |
0313166 |
SHIM BEARING TO HOUSING, .006" |
| 51 |
0313167 |
AHIM,Bearing to hsg.,.007" |
| 51 |
0313168 |
SHIM BEARING TO HOUSING, .008" |
| 52 |
0308707 |
SCREW |
| 54 |
0382228 |
GEAR ASSEMBLY |
| 55 |
0378635 |
BEARING |
| 56 |
0313231 |
RETAINER,Bearing |
| 57 |
0379130 |
BEARING & SHIM ASSY |
| 58 |
0309990 |
OIL RETAINER |
| 60 |
0313229 |
GASKET |
| 61 |
0302539 |
SPRING |
| 63 |
0379097 |
RETAINER & SEAL ASSEMBLY |
| 64 |
0308677 |
SEAL |
| 65 |
0313230 |
GEAR |
| 66 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 67 |
0313226 |
SCREW |
| 69 |
0377992 |
IMPELLER |
| 70 |
0308597 |
PLATE,Impeller |
| 71 |
0308712 |
SWIVEL HOUSING |
| 72 |
0308598 |
THRUST WASHER |
| 74 |
0308596 |
SEAL, Exhaust hosing |
| 75 |
0382235 |
EXHAUST HOUSING & PLUG |
| 76 |
0313221 |
PLUG, Exhaust housing |
| 77 |
0308838 |
PLATE, Back pressure |
| 79 |
0378729 |
DRIVESHAFT |
| 80 |
0313224 |
PLUG,Oil fill |
| 82 |
0308873 |
DRIVESCREW, Applique to lever |
| 83 |
0314390 |
RETAINER |
| 84 |
0205830 |
EMBLEM,Evenrude |
| 84 |
0308786 |
EMBLEM (OMC) |
| 0382267 |
0382267 |
RETAINER,Bearing & shim assembly |
