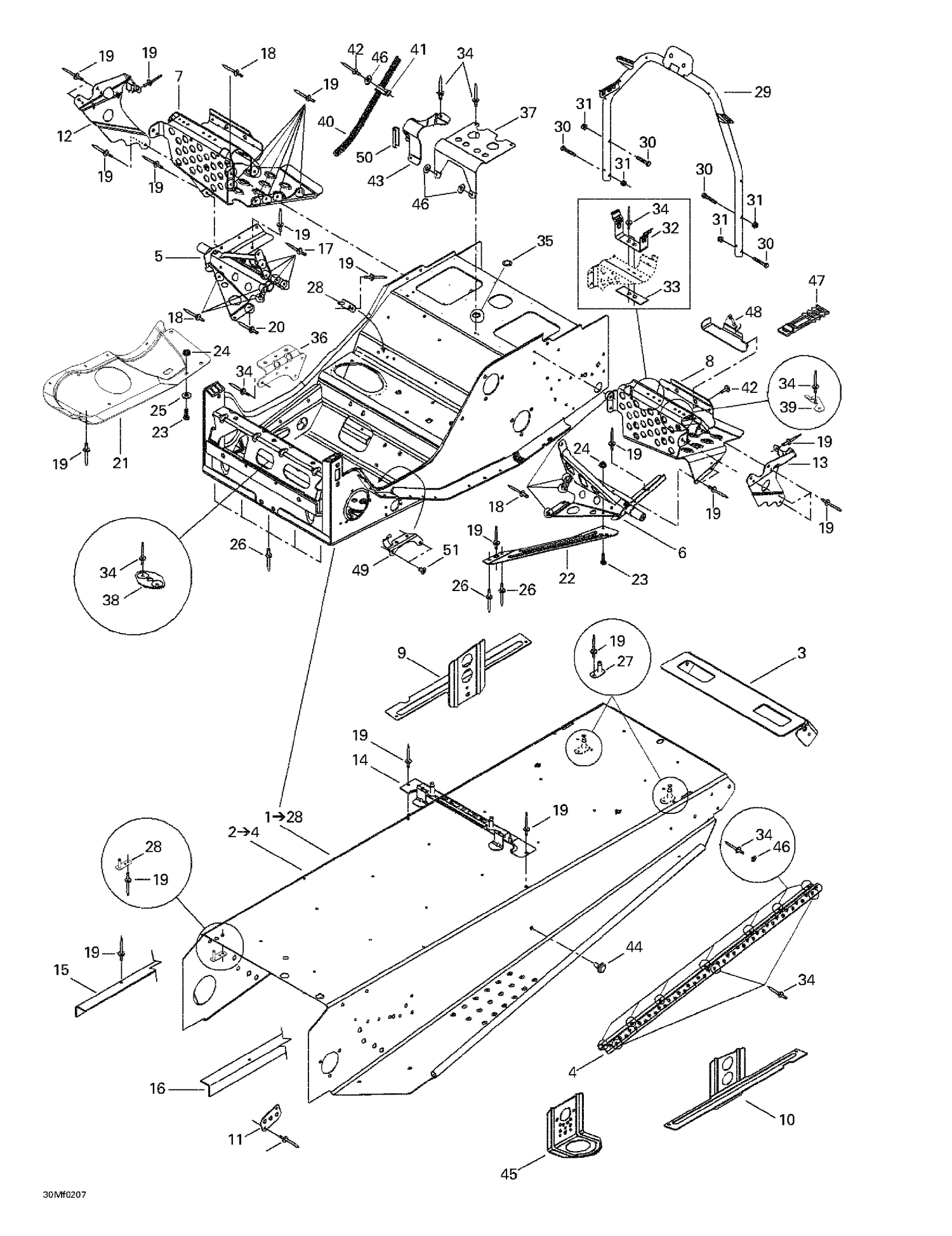

09- Frame And Accessories
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 518321303 | REAR CAP - Call your local BRP dealership |
| 4 | 518319405 | STRIP - Call your local BRP dealership |
| 5 | 518320506 | RH Footrest Support |
| 6 | 518320507 | LH SOOTREST SUPPORT - Call your local BRP dealership |
| 7 | 518322393 | RH Footrest |
| 8 | 518322394 | LH Footrest |
| 9 | 518322627 | RH Slide Bracket |
| 10 | 518322628 | LH Slide Bracket |
| 11 | 518321321 | Reinforcement Plate |
| 12 | 518321305 | RH FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 13 | 518321307 | LH FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 14 | 518321510 | FUEL TANK BRACKET - Call your local BRP dealership |
| 15 | 518316769 | RH Frame Reinforcement |
| 16 | 518316768 | LH Frame Reinforcement |
| 17 | 390909200 | Avex Rivet |
| 18 | 390909100 | Avex Rivet |
| 19 | 390402200 | Pop Rivet 3/16" |
| 20 | 390402300 | Pop Rivet 3/16" |
| 21 | 518322636 | RH BOTTOM PAN PLATE - Call your local BRP dealership |
| 22 | 518322119 | LH REINFORCEMENT PLATE - Call your local BRP dealership |
| 23 | 207152044 | Hex. Screw M5 X 20 |
| 24 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 25 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 26 | Not | Available As Spare Part - Rivet Henrob |
| 27 | 518319730 | Guide |
| 28 | 518322391 | Double Bracket |
| 29 | 518322755 | Handle Support |
| 30 | 207663544 | Hex. Flange Screw M6 X 35 |
| 31 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 32 | 518202100 | Belt Guard Bracket |
| 33 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 34 | 390402200 | Pop Rivet 3/16" |
| 35 | 414859400 | CAP - Call your local BRP dealership |
| 36 | 518322635 | Muffler Support |
| 37 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 38 | 518201307 | Plate Bracket |
| 39 | 518322031 | TOOL KIT BRACKET - Call your local BRP dealership |
| 40 | 518321569 | ROPE GUIDE - Call your local BRP dealership |
| 41 | 518321570 | Open Clamp |
| 42 | 390406500 | Pop Rivet 3/16" |
| 43 | 518322699 | Hose Support |
| 44 | 518321954 | Panel Fastener |
| 45 | 518321495 | Front Bracket |
| 46 | 517225900 | Flat Washer |
| 47 | 570069700 | LATCH - Call your local BRP dealership |
| 48 | 518321999 | Tool Kit Support |
| 49 | 515175254 | Cable Support |
| 50 | 219704353 | Was 271000110 Protection Trim |
