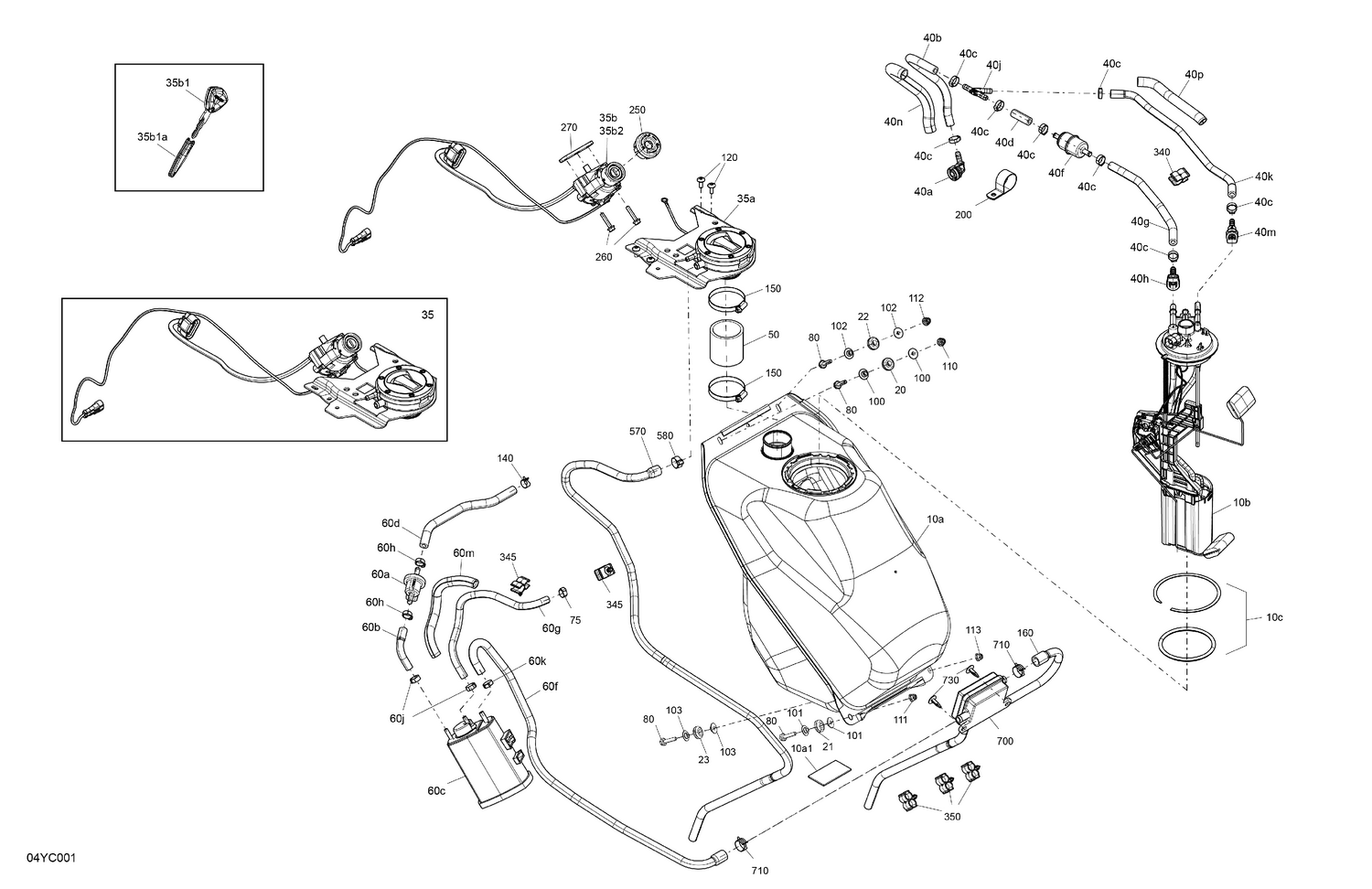

02- Engine - Fuel
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 709000553 | CARPET - Call your local BRP dealership |
| 10b | 709000779 | Fuel Pump Module |
| 10c | 219800248 | Seal Kit |
| 20 | 709000582 | Grommet |
| 21 | 709000582 | Grommet |
| 22 | 709000582 | Grommet |
| 23 | 709000582 | Grommet |
| 35a | 219800405 | Fuel Cap kit with Key |
| 35b1a | 710003597 | Key Sleeve |
| 35b2 | 219800373 | DESS Antenna |
| 40a | 293710105 | Elbow Fitting 90° |
| 40b | 709000264 | Fuel Line 7.9 mm, Meter |
| 40c | 293650140 | Oetiker Clamp |
| 40d | 709000265 | Fuel Line 7.9 mm, Meter |
| 40f | 513034047 | Fuel Filter |
| 40g | 219800602 | Hose 7,94 Mm Id X 3000 Mm |
| 40h | 709000684 | Female Quick Fitting Ass'y |
| 40j | 513034117 | Y Fitting |
| 40k | 709001201 | Formed Hose |
| 40m | 293710192 | Quick Connect Pipe Fitting This part replaces 709000686. |
| 40n | 219704408 | Tubing 16 Mm 1000Mm Long |
| 40p | 219704408 | Tubing 16 Mm 1000Mm Long |
| 50 | 275501196 | Filler Neck Hose This part replaces 275500924. |
| 60a | 709000443 | Bleed Valve |
| 60b | 709000566 | Formed Hose |
| 60c | 709000090 | Vapor Canister |
| 60d | 219704612 | Hose 3000Mm Long This part replaces 219704441. |
| 60f | 709000567 | Formed Hose |
| 60g | 219704611 | Hose 6.35Mm 5000Mm Long This part replaces 219704477. |
| 60h | 293650047 | Crimp Clamp, 15.3-706R |
| 60j | 293650025 | Oetiker Gear Clamp |
| 60k | 293650140 | Oetiker Clamp |
| 60m | 219704400 | Was 409901800 Tubing (13 mm) |
| 75 | 293650046 | Oetiker Clamp |
| 80 | 207662544 | Hex. Flange Screw M6 X 25 |
| 100 | 709001287 | Bushing |
| 101 | 709001287 | Bushing |
| 102 | 709001287 | Bushing |
| 103 | 709001287 | Bushing |
| 110 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 111 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 112 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 113 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 120 | 250000534 | Tork Screw M6 X 16 |
| 140 | 513033029 | Universal Spring Clamp |
| 150 | 293650081 | Norma Clamp |
| 160 | 709000570 | Formed Hose |
| 200 | 513033047 | Open Clamp |
| 250 | 710004182 | Ignition Switch Cap |
| 260 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 270 | 710001365 | Switch Support |
| 340 | 709000571 | Hose Support |
| 345 | 709000571 | Hose Support |
| 350 | 709000571 | Hose Support |
| 570 | 709000813 | Formed Hose |
| 580 | 293650011 | Oetiker Clamp |
| 700 | 709000524 | Air Filter |
| 710 | 513033865 | Spring Clamp |
