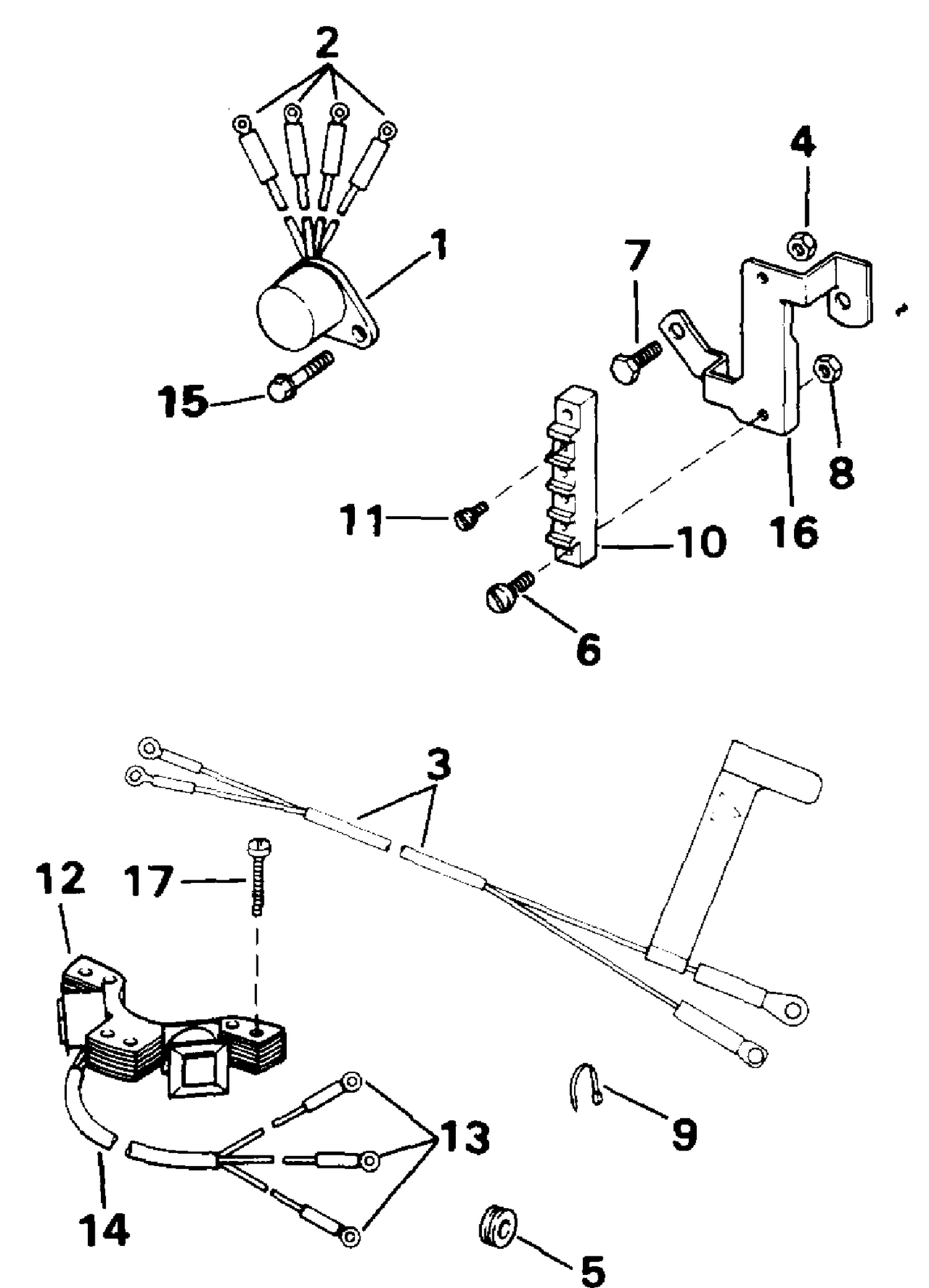

BATTERY CHARGING KIT - 4 DELUXE
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0173692 | RECTIFIER ASSEMBLY, DC |
| 6 | 0306644 | VIS, capteur de papillon |
| 7 | 0312241 | SCREW, Trim/Tilt relay bracket |
| 9 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 10 | 0511949 | BORNIER |
| 11 | 0329182 | VIS, borne |
| 12 | 0584342 | STATOR ASSEMBLY, DC |
| 15 | 0312241 | SCREW, Trim/Tilt relay bracket |
| 16 | 0123695 | BRACKET, Terminal block |
| 0175277 | 0175277 | BATTERY CHARGING KIT, 4 |
