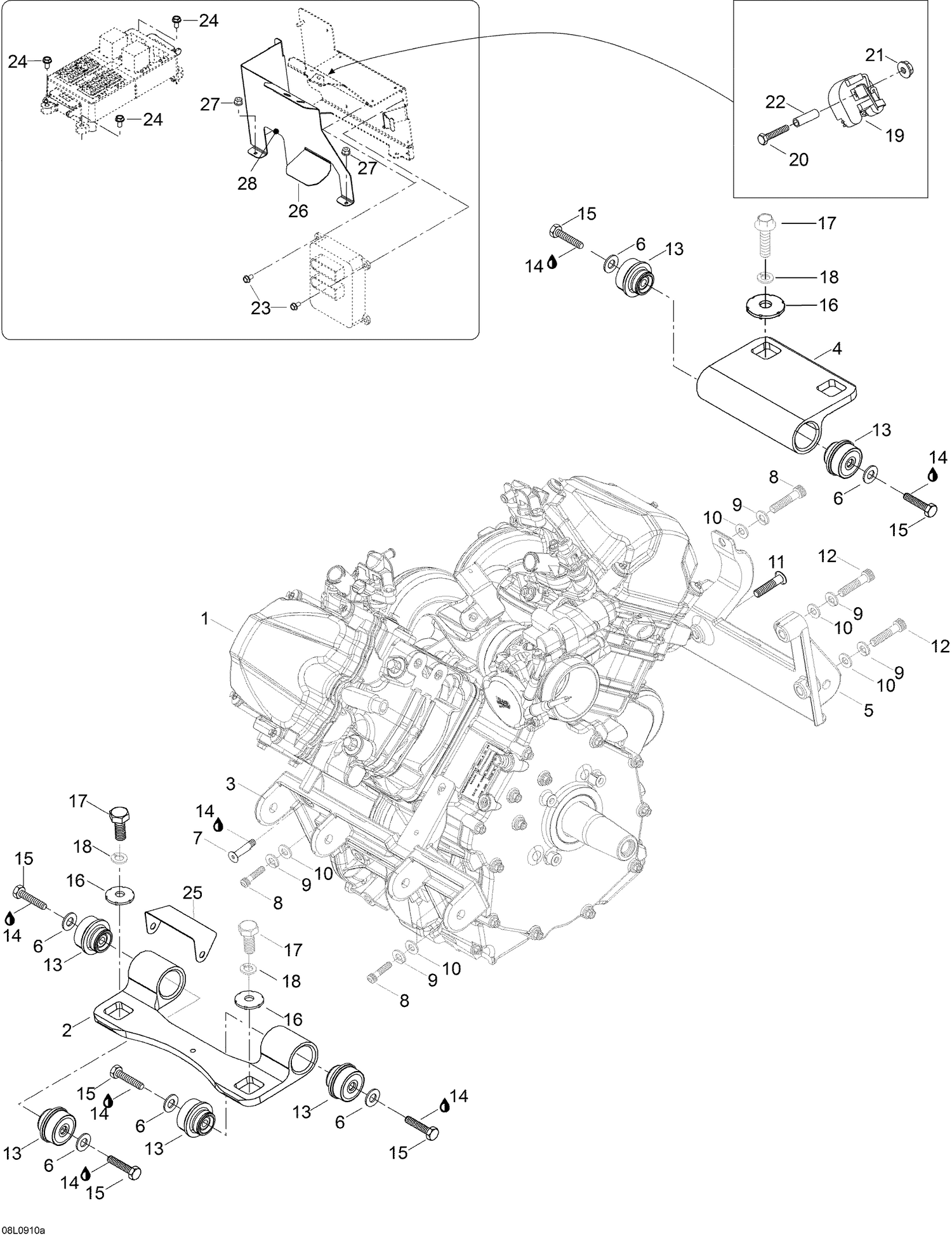

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Engine |
| 2 |
605353705 |
FRONT SUPPORT - Call your local BRP dealership |
| 3 |
605253109 |
FRONT ENGINE MOUNTING SUPPORT - Call your local BRP dealership |
| 4 |
605253110 |
REAR ENGINE MOUNTING SUPPORT - Call your local BRP dealership |
| 5 |
605353706 |
Rear Support |
| 6 |
234001410 |
Flat Washer 10 mm |
| 7 |
M40839 |
Screw M8 X 20 |
| 8 |
205082544 |
Socket Head Screw M8 X 25 |
| 9 |
234181401 |
Lock Washer 8 mm |
| 10 |
234081410 |
Flat Washer 8 mm |
| 11 |
605640012 |
SOCKET SCREW M8 X 25 - Call your local BRP dealership |
| 12 |
M40286 |
Socket Head Screw M8 X 45 |
| 13 |
512059691 |
Rubber Mount |
| 14 |
Not |
Available As Spare Part - Glue Loctite 243, 50ml Blue |
| 15 |
207103044 |
Hex. Screw M10 X 30 |
| 16 |
512056700 |
Lock Washer |
| 17 |
207102544 |
Hex. Screw M10 X 25 |
| 18 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 19 |
Not |
Available As Spare Part - Ignition Coil |
| 20 |
M40084 |
SCREW M6 X 45 - Call your local BRP dealership |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 22 |
512059812 |
SPACER - Call your local BRP dealership |
| 23 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
| 24 |
210251650 |
Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 25 |
605354238 |
FRONT DEFLECTOR - Call your local BRP dealership |
| 26 |
605353299 |
HEAT COVER - Call your local BRP dealership |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
