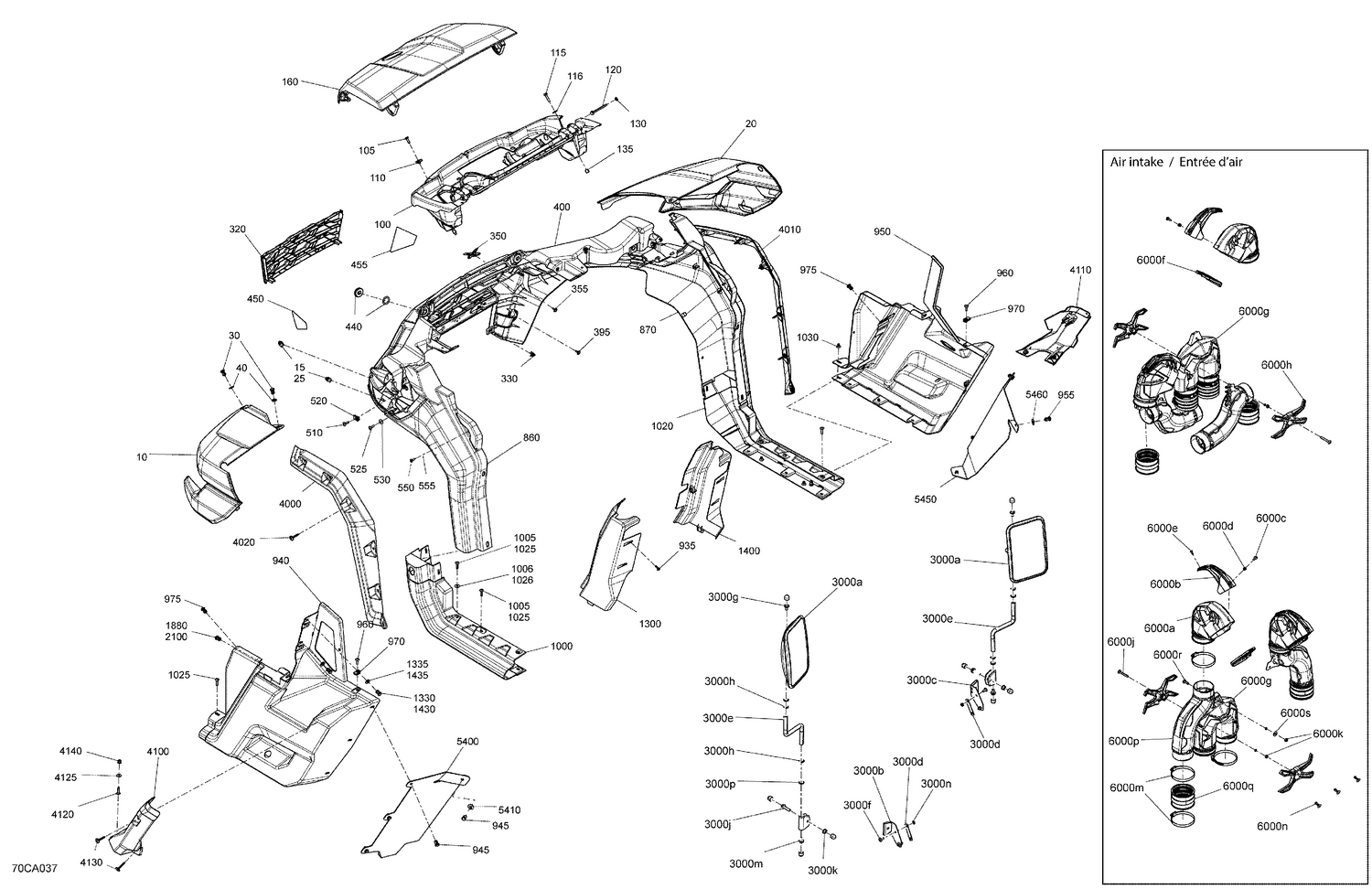

| Ref | Part Number | Description |
|---|
| 10 |
705014063 |
Manta Green, LH Front Fender |
| 15 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 20 |
705014064 |
Manta Green, RH Front Fender |
| 25 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 30 |
293150230 |
Tuflok Plastic Rivet |
| 40 |
503192494 |
Washer |
| 100 |
705013766 |
Multi Purpose Support |
| 105 |
250000722 |
Torx Screw M6 X 20 |
| 110 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 115 |
210263050 |
Hex. Flange Screw M6 X 30 |
| 116 |
234062670 |
Stainless Steel Flat Washer |
| 120 |
207667554 |
Hex. Flange Screw M6 X 75 |
| 130 |
732610072 |
Push Nut |
| 135 |
293900125 |
Bushing |
| 160 |
705014059 |
Mineral Satin Gray, Front Hood |
| 320 |
705013590 |
Grille |
| 330 |
517306478 |
Clip |
| 350 |
705014036 |
Emblem X |
| 355 |
250000725 |
Screw M4 X 16 |
| 395 |
250000725 |
Screw M4 X 16 |
| 400 |
705013591 |
Deep Black, Front Fascia |
| 440 |
705010718 |
Grommet |
| 450 |
704905072 |
LH Front Reflector |
| 455 |
704905073 |
RH Front Reflector |
| 510 |
250000722 |
Torx Screw M6 X 20 |
| 520 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 525 |
250000722 |
Torx Screw M6 X 20 |
| 530 |
234062670 |
Stainless Steel Flat Washer |
| 550 |
250000720 |
Torx Screw K50 X 16 |
| 555 |
234051670 |
Flat Washer M5 |
| 860 |
705008152 |
LH Front Lateral Panel |
| 870 |
705008153 |
RH Front Lateral Panel |
| 935 |
250000720 |
Torx Screw K50 X 16 |
| 940 |
705013658 |
Deep Black, LH Rear Body Panel |
| 945 |
293150230 |
Tuflok Plastic Rivet |
| 950 |
705013659 |
Deep Black, RH Rear Body Panel |
| 955 |
293150230 |
Tuflok Plastic Rivet |
| 960 |
250000722 |
Torx Screw M6 X 20 |
| 970 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 975 |
293150230 |
Tuflok Plastic Rivet |
| 1000 |
705019037 |
Deep Black, LH Central Panel This part replaces 705008699. |
| 1005 |
250000807 |
Torx Truss Screw M6 X 25 |
| 1006 |
234062670 |
Stainless Steel Flat Washer |
| 1020 |
705019038 |
Deep Black, RH Central Panel This part replaces 705008700. |
| 1025 |
250000807 |
Torx Truss Screw M6 X 25 |
| 1026 |
234062670 |
Stainless Steel Flat Washer |
| 1030 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1300 |
715006542 |
LH Rear Cage Cover Kit |
| 1330 |
293150230 |
Tuflok Plastic Rivet |
| 1335 |
503192494 |
Washer |
| 1400 |
715006543 |
RH Rear Cage Cover Kit |
| 1430 |
293150230 |
Tuflok Plastic Rivet |
| 1435 |
503192494 |
Washer |
| 1880 |
293150230 |
Tuflok Plastic Rivet |
| 2100 |
293150230 |
Tuflok Plastic Rivet |
| 3000a |
705011497 |
Mirror |
| 3000b |
705012151 |
LH Mirror Support |
| 3000c |
705012152 |
RH Mirror Support |
| 3000d |
705010469 |
Plate |
| 3000e |
705012671 |
Mirror Rod |
| 3000f |
250000348 |
Torx Truss Screw M6 X 16 |
| 3000g |
207581644 |
Hex. Flange Screw M8 X 16, Scotch Grip |
| 3000h |
293370131 |
Snap Ring |
| 3000j |
207683544 |
Hex. Flange Screw M8 X 35 |
| 3000k |
233281414 |
Hex. Flange Elastic Nut M8 |
| 3000m |
250000758 |
Torx Screw M6 X 25 |
| 3000n |
233261494 |
Hex. Flange Elastic Nut M6 |
| 3000p |
250200178 |
Flat Washer |
| 4000 |
705011518 |
LH Front Fender Flare |
| 4010 |
705011519 |
RH Front Fender Flare |
| 4020 |
250000840 |
Torx Truss Screw Head PT.K50 X 40 |
| 4100 |
705011522 |
LH Central Fender Flare |
| 4110 |
705011523 |
RH Center Fender Flare |
| 4120 |
250000758 |
Torx Screw M6 X 25 |
| 4125 |
234062670 |
Stainless Steel Flat Washer |
| 4130 |
250000840 |
Torx Truss Screw Head PT.K50 X 40 |
| 4140 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 5400 |
705016336 |
LH Rear Deflector This part replaces 705013057. |
| 5410 |
292001663 |
Flat Washer 8 mm, Nylon |
| 5450 |
705016337 |
RH Rear Deflector This part replaces 705013058. |
| 5460 |
292001663 |
Flat Washer 8 mm, Nylon |
| 6000a |
706600236 |
Air Inlet |
| 6000b |
707001630 |
Manta Green - Cap |
| 6000c |
250000792 |
Torx Screw M5 X 20 |
| 6000d |
233251494 |
Elastic Flange Nut M5 |
| 6000e |
250000577 |
Torx Truss Screw K40 X 12 |
| 6000f |
706600317 |
Manta Green Grate |
| 6000g |
706600205 |
CVT Outlet |
| 6000h |
705014197 |
Manta Green, Trim |
| 6000j |
250000647 |
Torx Screw M6 X 45 |
| 6000k |
232561494 |
Elastic Stop Nut M6 |
| 6000m |
293650272 |
Clamp |
| 6000n |
293150101 |
Pop Rivet 3/16” This part replaces 293150101. |
| 6000p |
706600277 |
Intake Tube |
| 6000q |
706600278 |
Flexible Joint |
| 6000r |
250000712 |
Torx Screw M6 X 20 |
