Parts Catalog

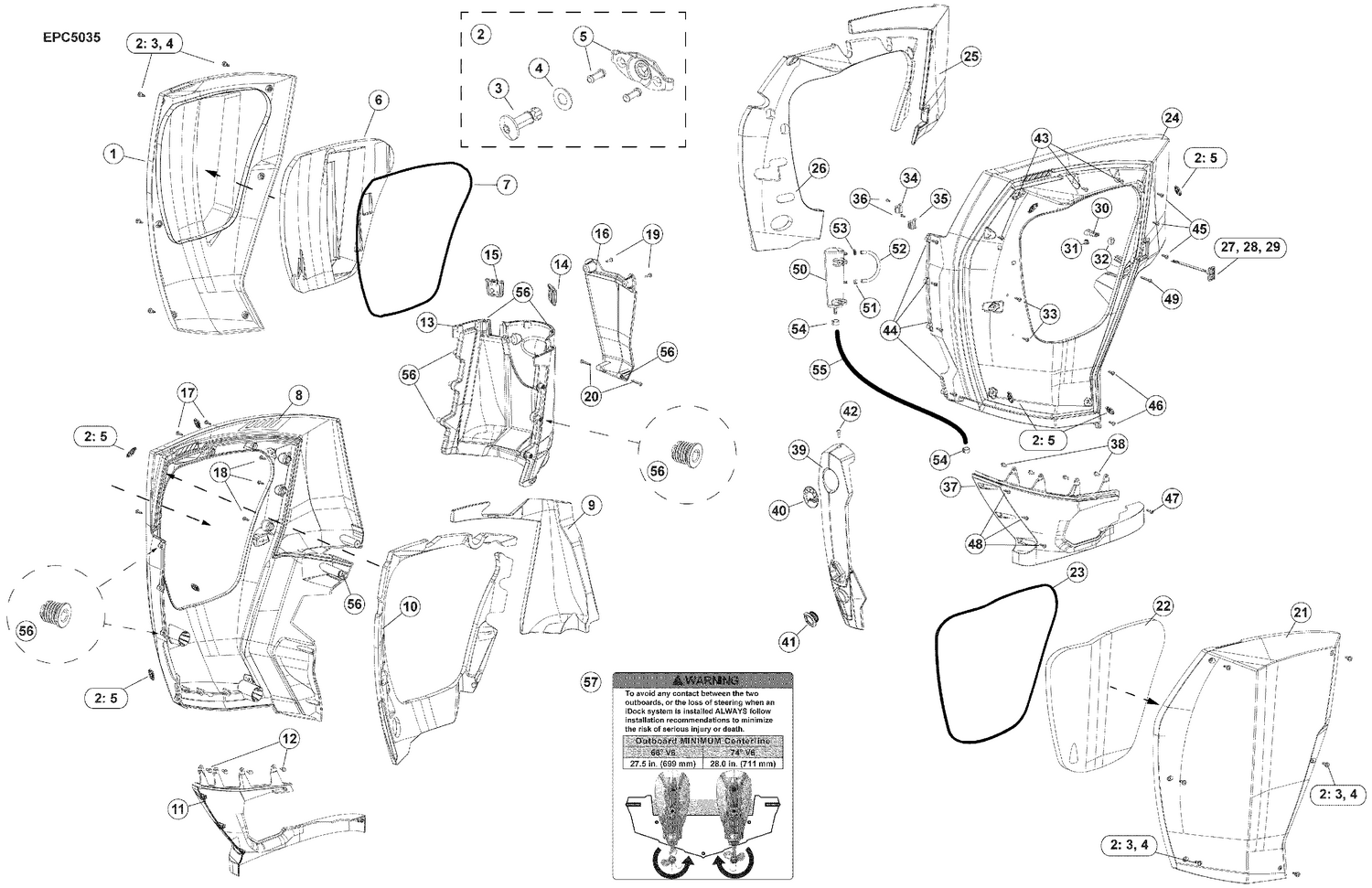

01-2.2_ENGINE COVERS (PORT & STARBOARD)

Parts (9)

Ref	Part Number	Description
13	5009172	FRAME, Front
14	0356489	GROMMET, Starboard
15	0356490	GROMMET, Port
39	5010998	COVER ASSEMBLY, Rear frame
41	0356286	RETAINER
50	5009873	OIL RESERVOIR, Gearcase
51	0348838	CLAMP, 10.5mm
53	0339276	SERRE-FILS
55	0357226	HOSE, Gearcase to oil reservoir
