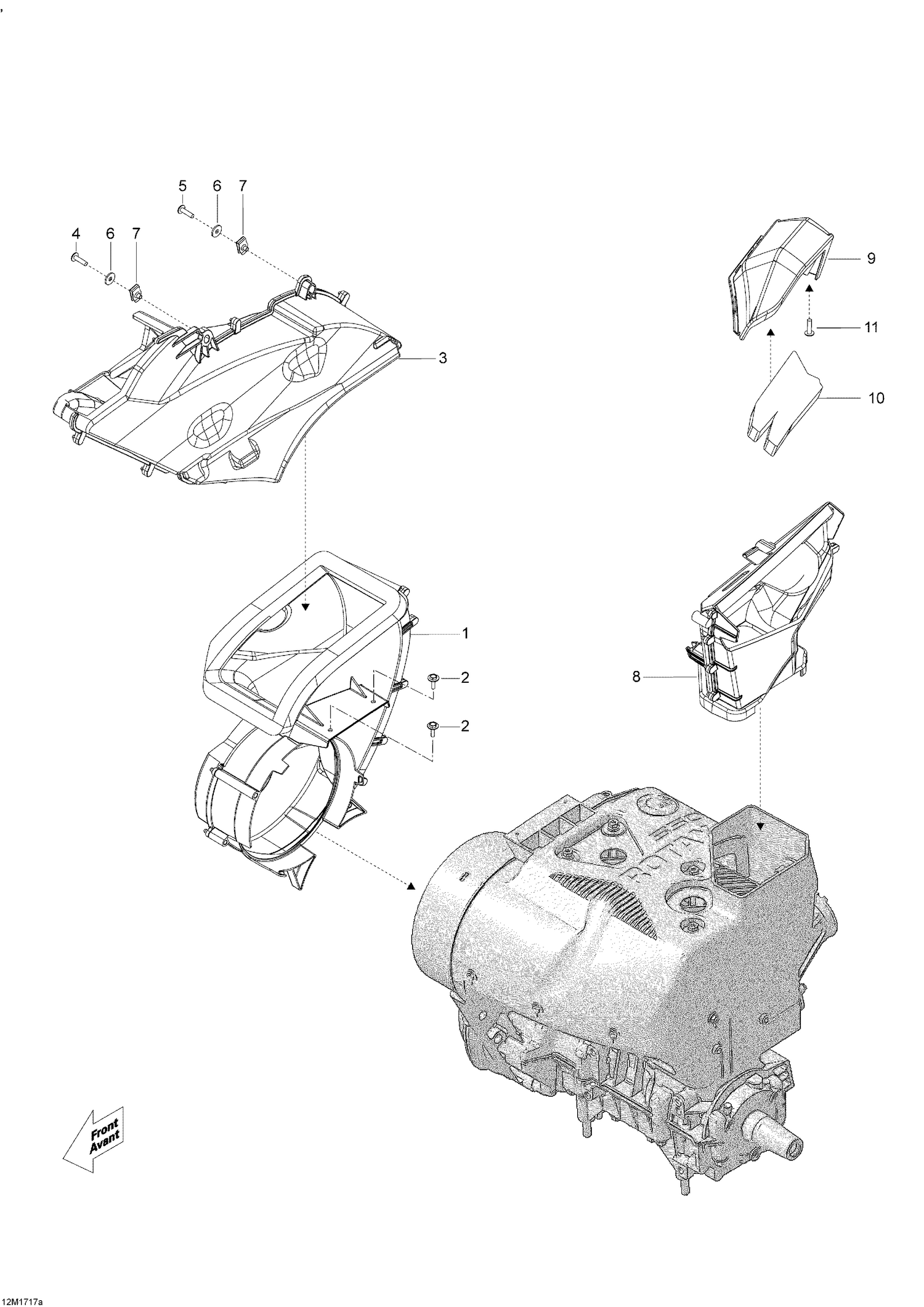

01- Cooling System - 550F
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000840 | Inlet Duct |
| 2 | 250000725 | Screw M4 X 16 |
| 3 | 509001176 | Air Chamber Ass'y This part replaces 509000684. |
| 4 | 250000724 | Torx Screw M5 X 20 |
| 5 | 250000762 | Torx Screw M5 X 25 |
| 6 | 391301600 | Washer |
| 7 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 8 | 509001175 | Duct Outlet Ass'y This part replaces 509000683. |
| 9 | 509000687 | Air Out Deflec |
| 10 | 509000831 | FOAM-IN - Call your local BRP dealership |
