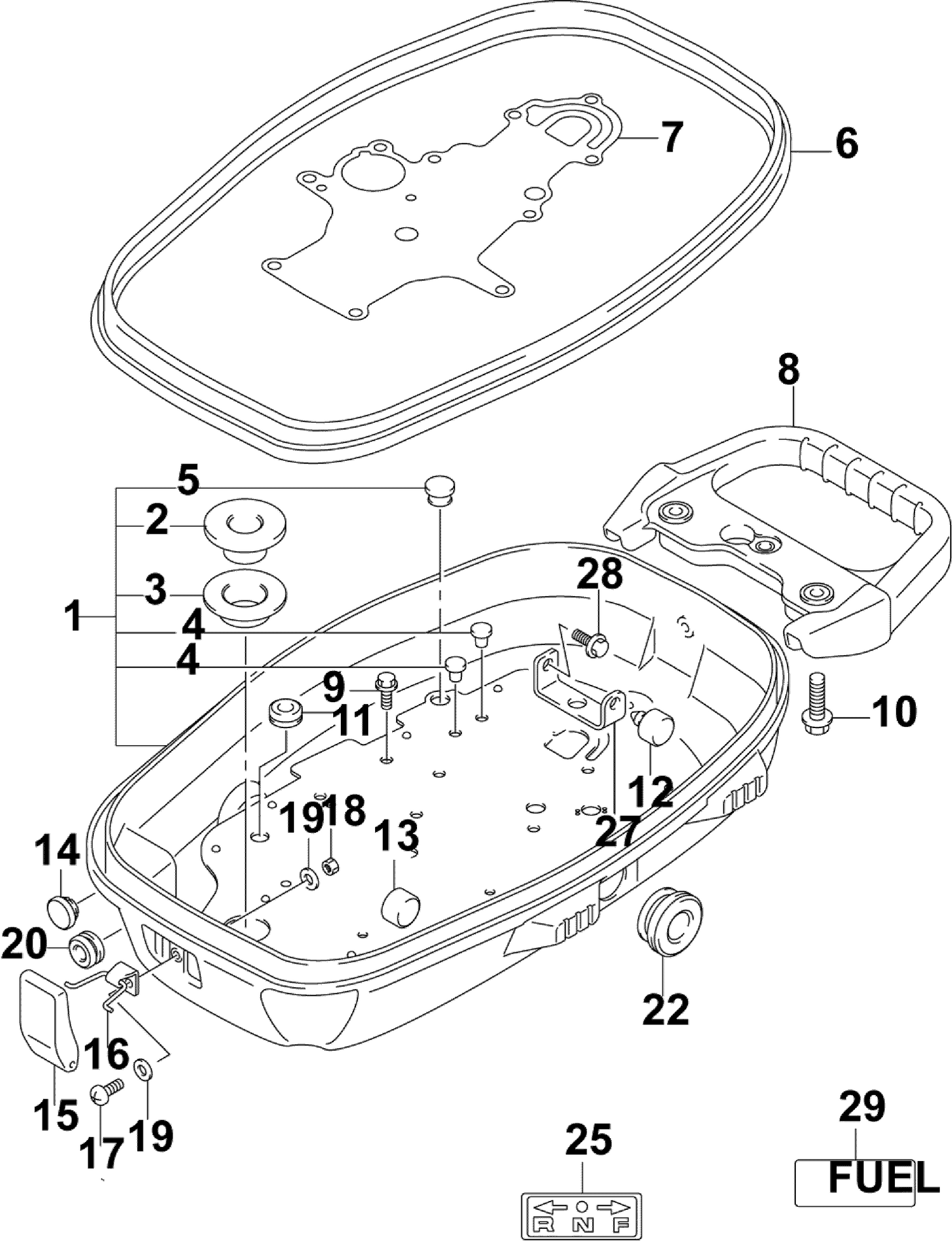

LOWER ENGINE COVER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5036552 | COVER ASSY, LOWER |
| 6 | 5033434 | RUBBER, ENGINE LOWER COVER |
| 7 | 5034334 | GASKET, LOWER COVER PLATE |
| 8 | 5033450 | HANDLE, CARRYING |
| 10 | 5033472 | BOLT (8X25mm) |
| 11 | 5033484 | GROMMET |
| 12 | 5033436 | CUSHION |
| 13 | 5030121 | CUSHION |
| 15 | 5033446 | FASTENER, ENGINE COVER |
| 16 | 5034336 | LEVER, FASTENER |
| 17 | 5033334 | SCREW (5X14mm) |
| 19 | 5031829 | RONDELLE (5,5 x 12 x 0,8 mm) |
| 20 | 5033438 | GROMMET, THROTTLE CABLE |
| 22 | 5033455 | GROMMET, OIL LEVEL GAUGE |
| 25 | 5034339 | DECAL, CLUTCH SHIFT |
| 27 | 5033449 | HOLDER, LOWER COVER |
