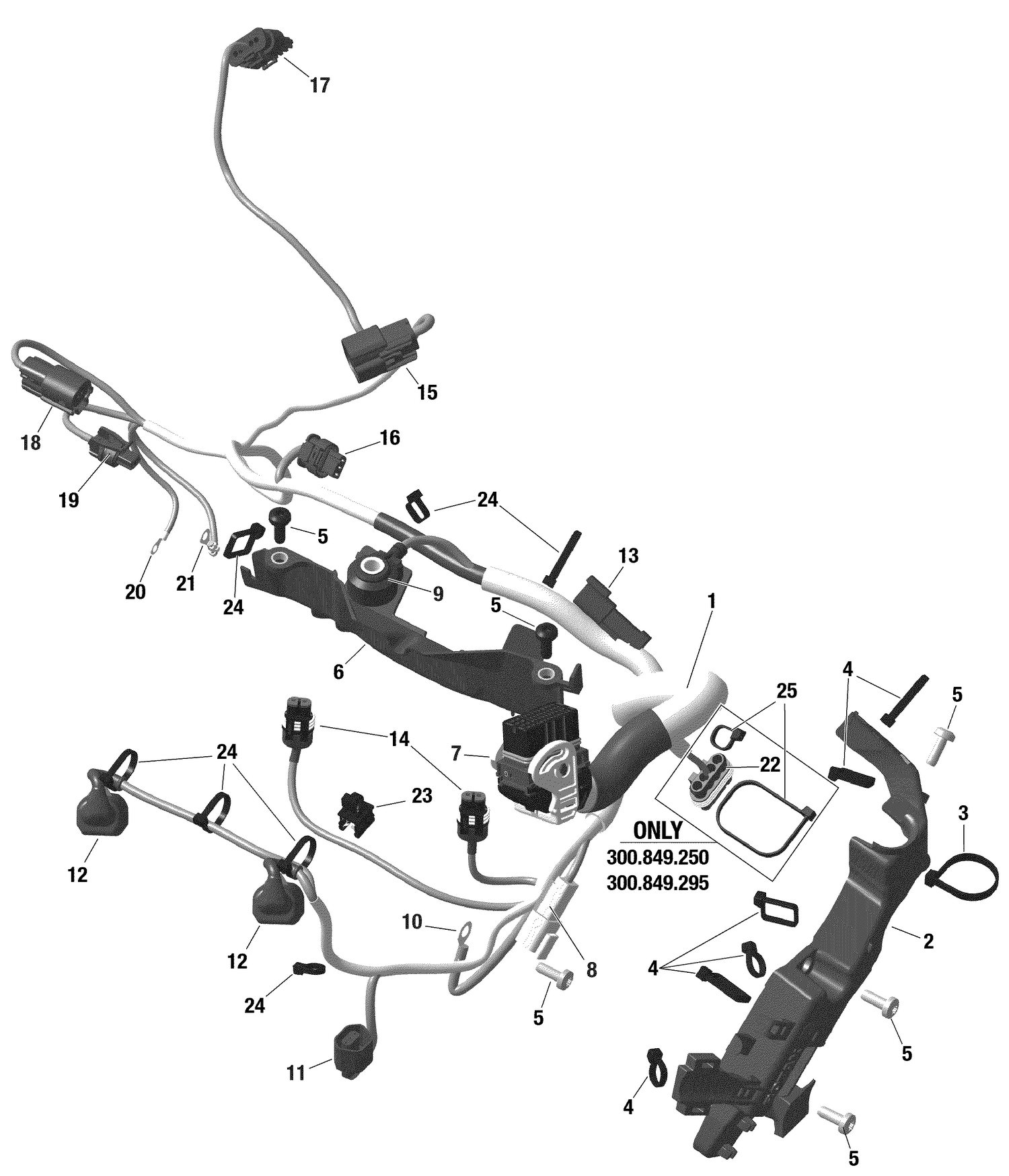

10- Electric - Engine Harness - 850 E-TEC
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420260155 | Harness Support |
| 3 | 420651397 | Tie Rap |
| 4 | 293750002 | Tie Wrap 142 mm |
| 5 | 420640324 | Torx Screw M6 X 16 |
| 6 | 420260159 | Harness Support |
| 7 | XXX | Not Available As Spare Parts |
| 8 | 409206900 | Male Housing, 2 Circuits |
| 9 | XXX | Not Available As Spare Parts |
| 10 | XXX | Not Available As Spare Parts |
| 11 | 415130195 | Connector |
| 12 | 515176129 | Female Housing |
| 13 | 409206900 | Male Housing, 2 Circuits |
| 14 | 409209500 | Female Housing, 2 Circuits |
| 15 | 515178202 | Coil Connector |
| 16 | XXX | Not Available As Spare Parts |
| 17 | XXX | Not Available As Spare Parts |
| 18 | 710005827 | Connector 2 Pins with CPA |
| 19 | 515177192 | Female Housing, 2 Circuits |
| 20 | XXX | Not Available As Spare Parts |
| 21 | 515175504 | Ring Terminal |
| 22 | XXX | Not Available As Spare Parts |
| 23 | 420951785 | Tie Rap |
| 24 | 293750002 | Tie Wrap 142 mm |
