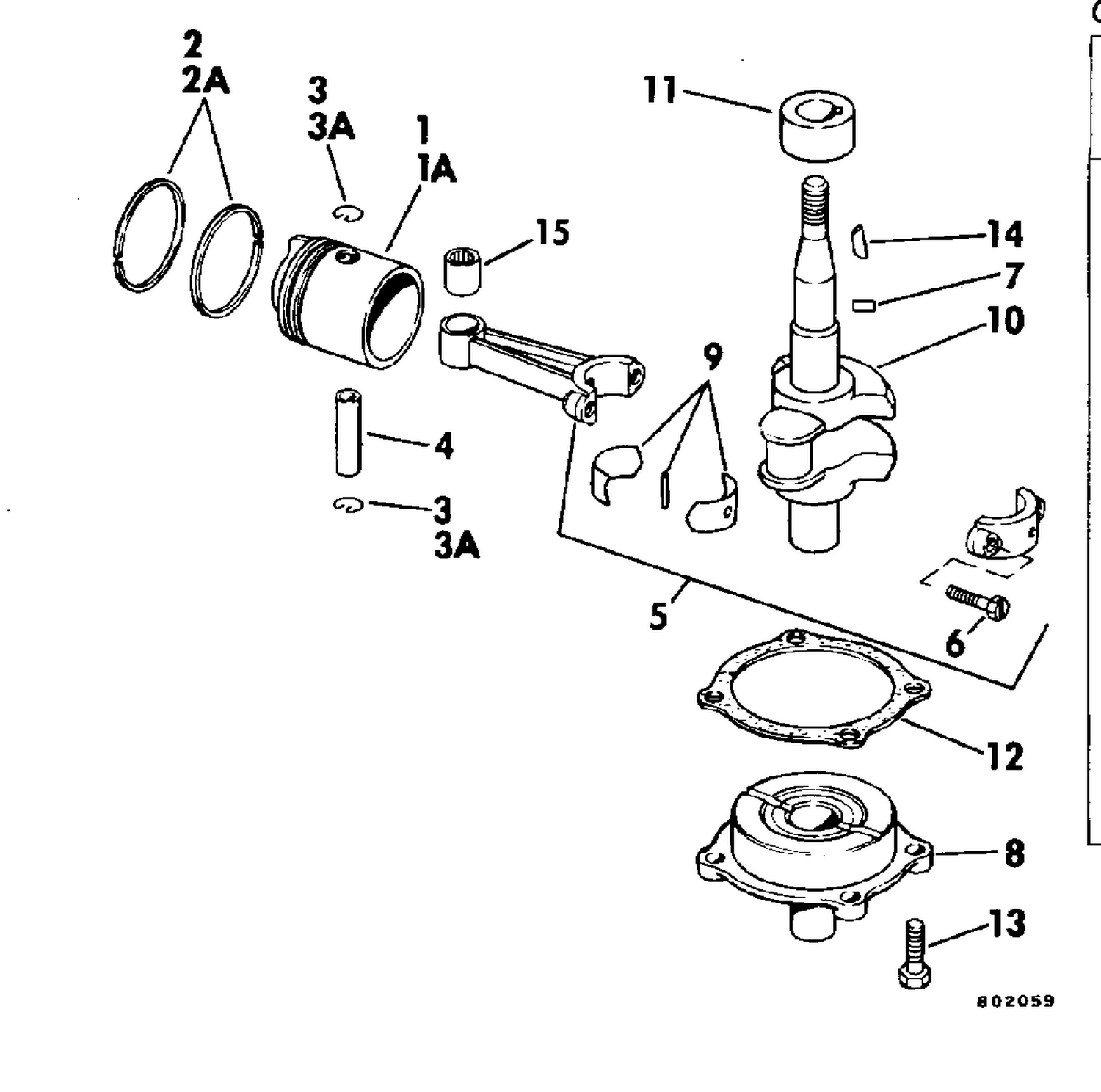

| Ref | Part Number | Description |
|---|
| 1 |
0432741 |
PISTON & RING AY., Std. This part replaces 0390834. |
| 1A |
0390836 |
PISTON ASSY., .030 0.S |
| 2 |
0383920 |
RING SET, |
| 2A |
0384312 |
RING SET , .030 o. S |
| 4 |
0323034 |
RETAINING RING |
| 5 |
0394692 |
CONNECTING ROAD ASSY. This part replaces 0389779. |
| 6 |
0324365 |
SCREW, Rod cap |
| 7 |
0314213 |
PIN, Cam to crankshaft |
| 8 |
0383231 |
BEARING HOUSING ASSY |
| 9 |
0396068 |
LINERS & NEEDLES, Rod This part replaces 0388766. |
| 10 |
0328838 |
CRANKSHAFT This part replaces 0314696. |
| 11 |
0510167 |
CAM, Magneto |
| 12 |
0314315 |
GASKET HOUSING |
| 13 |
0300646 |
VIS, ancrage |
| 14 |
0120395 |
KEY |
