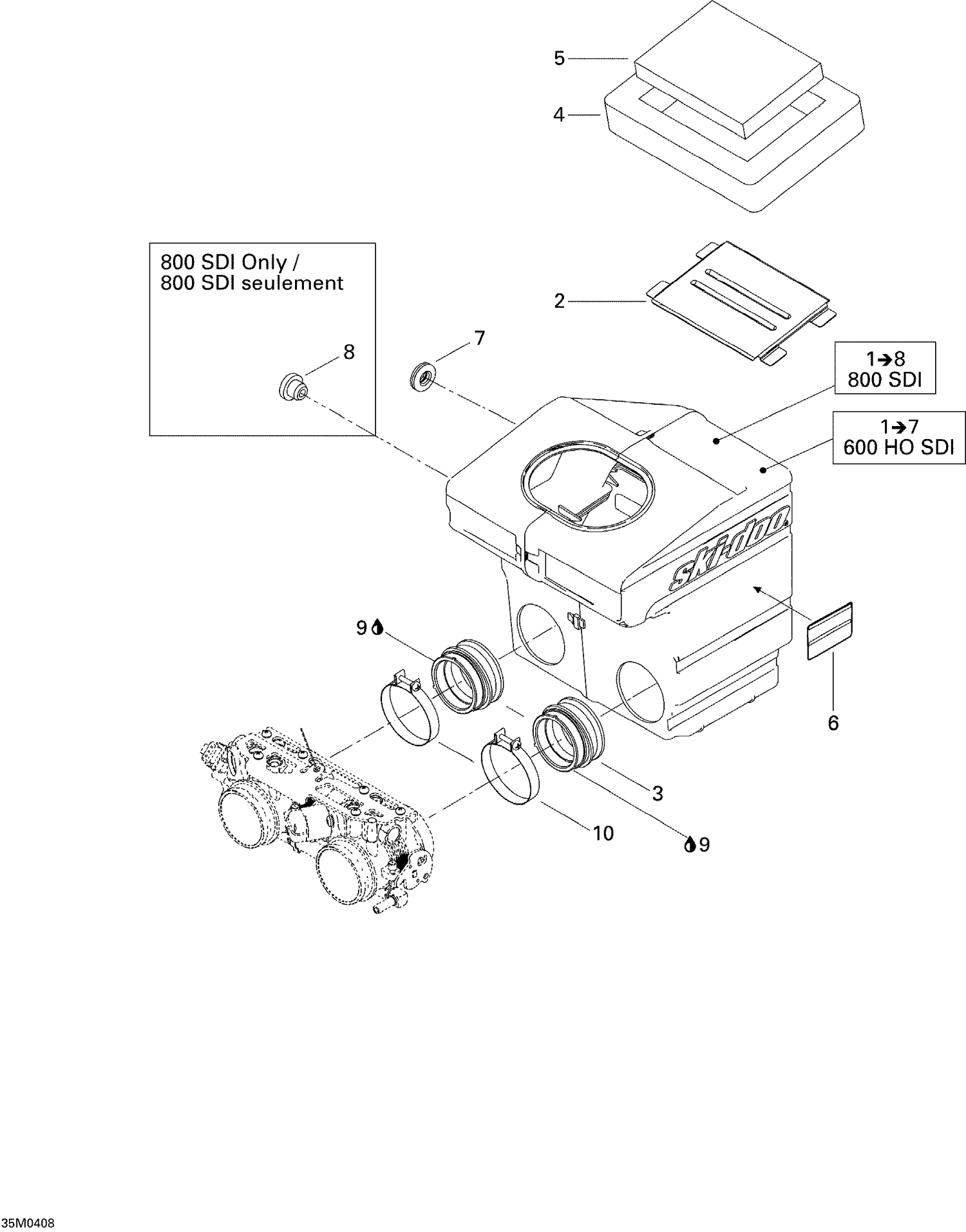

| Ref | Part Number | Description |
|---|
| 2 |
508000004 |
INTAKE GRILL - Call your local BRP dealership |
| 3 |
508000092 |
Air Intake Adaptor, 40 mm |
| 4 |
508000099 |
Lower Foam |
| 5 |
508000154 |
Air Filter |
| 6 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 7 |
570065500 |
GROMMET - Call your local BRP dealership |
| 8 |
513032908 |
Grommet |
| 9 |
293600120 |
OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100. |
| 779120 |
2T |
Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
