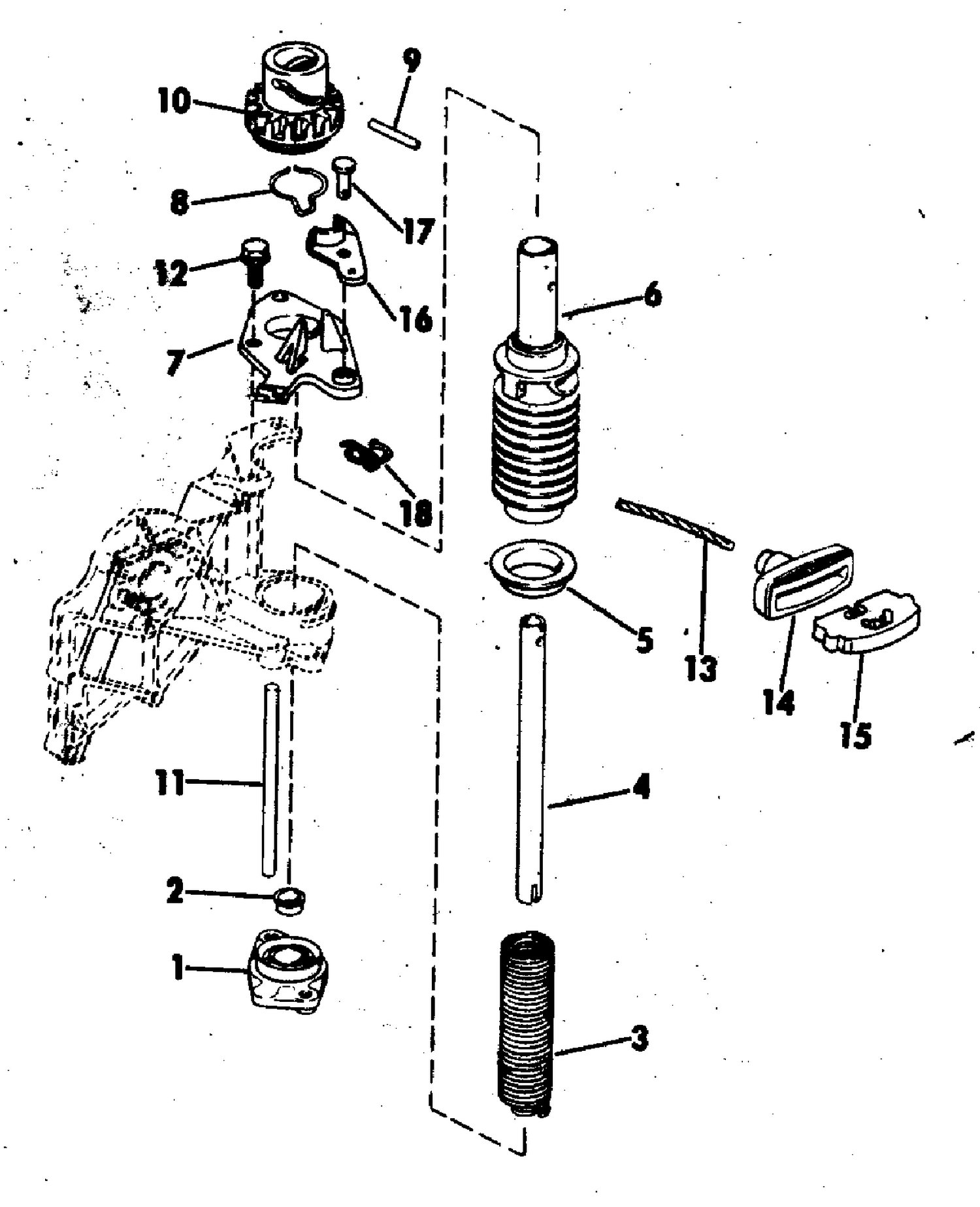

REWIND STARTER
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0314501 | PLATE, Spring retainer |
| 2 | 0311259 | BUSHING |
| 3 | 0314500 | MAIN SPRING |
| 4 | 0311257 | RETAINER, Spring |
| 5 | 0311256 | BUSHING |
| 6 | 0387509 | SPOOL This part replaces 0311222. |
| 7 | 0318379 | BEARING HEAD |
| 8 | 0309736 | SPRING |
| 9 | 0309686 | ROLL PIN |
| 10 | 0318447 | PINION |
| 11 | 0311284 | GUIDE, Rope |
| 12 | 0311762 | SCREW, Hex head |
| 13 | ROPE | Ref: 14 0313154 HANDLE 0313154 |
| 15 | 0389713 | ANCHOR, Rope to handle This part replaces 0304323. |
| 16 | 0318380 | LOCKING LEVER |
| 17 | 0329531 | PIN, Tilt arm This part replaces 0305878. |
| 0385984 | 0385984 | REWIND STARTER ASSY |
