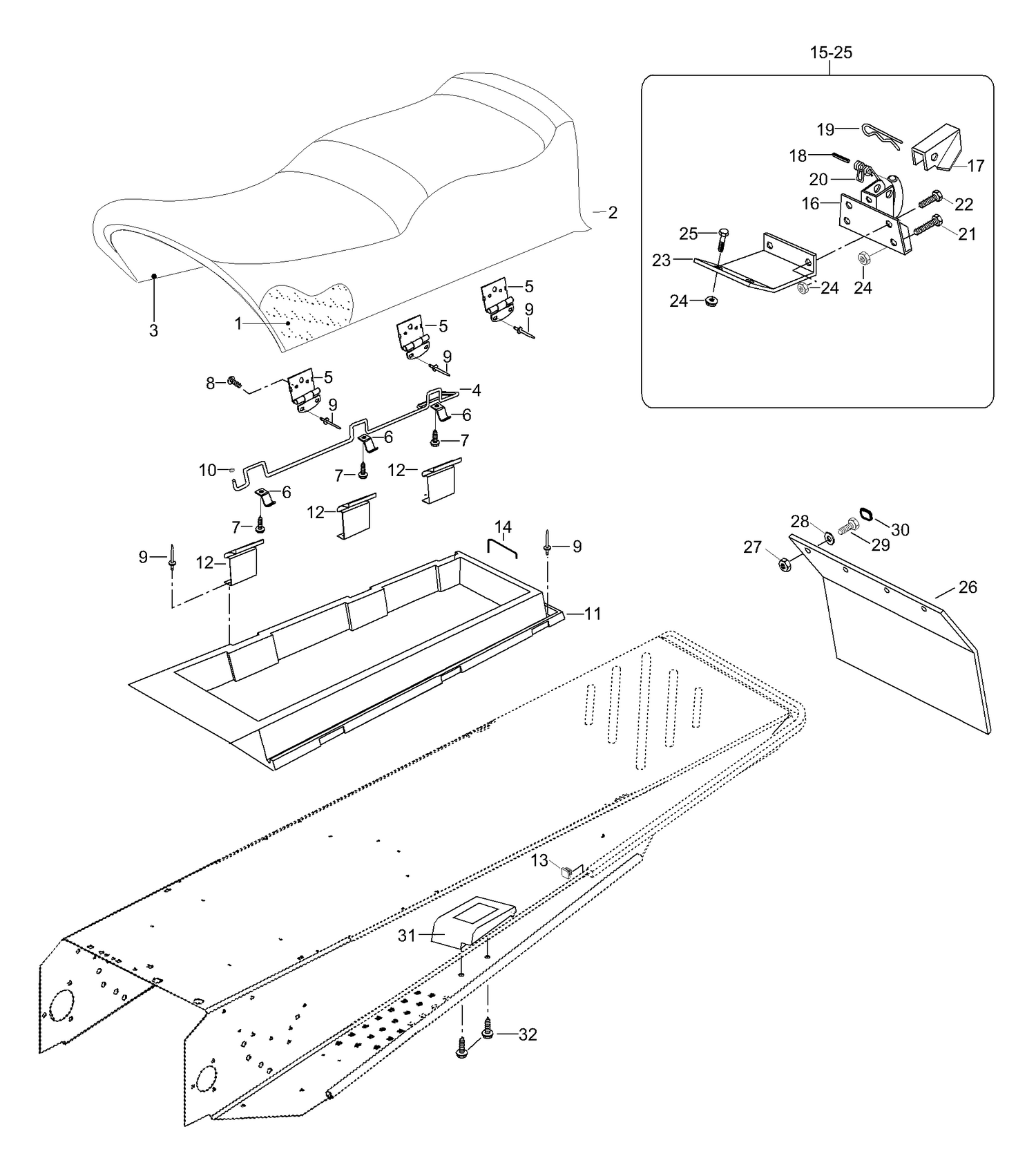

| Ref | Part Number | Description |
|---|
| 1 |
605150630 |
SEAT FOAM - Call your local BRP dealership |
| 2 |
605150617 |
Seat cover |
| 3 |
5144962 |
Seat Base - Call your local BRP dealership |
| 4 |
5245337 |
Locking shaft |
| 5 |
5346518 |
HINGE - Call your local BRP dealership |
| 6 |
5446102 |
Locking plate |
| 7 |
40888 |
Screw 4,2 x 19 |
| 8 |
40887 |
Screw 4,2 x 9,5 |
| 9 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 10 |
28019 |
Plug |
| 11 |
605350823 |
Seat housing |
| 12 |
5345195 |
LOCKING DEVICE - Call your local BRP dealership |
| 13 |
28232 |
Plug |
| 14 |
5441849 |
Stopper Hook |
| 16 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 17 |
5440767 |
Lock |
| 18 |
41012 |
Spring Pin |
| 19 |
41029 |
Needle Pin |
| 20 |
545693 |
SPRING - Call your local BRP dealership |
| 21 |
40007 |
Screw M8 x 40 |
| 22 |
40037 |
Screw M8 x 25 |
| 23 |
605349063 |
Support plate |
| 24 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 25 |
40036 |
Screw M8 x 20 |
| 26 |
5246860 |
Snow guard |
| 27 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 28 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 29 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 30 |
415073300 |
Cap |
| 31 |
572088700 |
R.H. foot rest |
| 31 |
572088800 |
L.H. foot rest |
