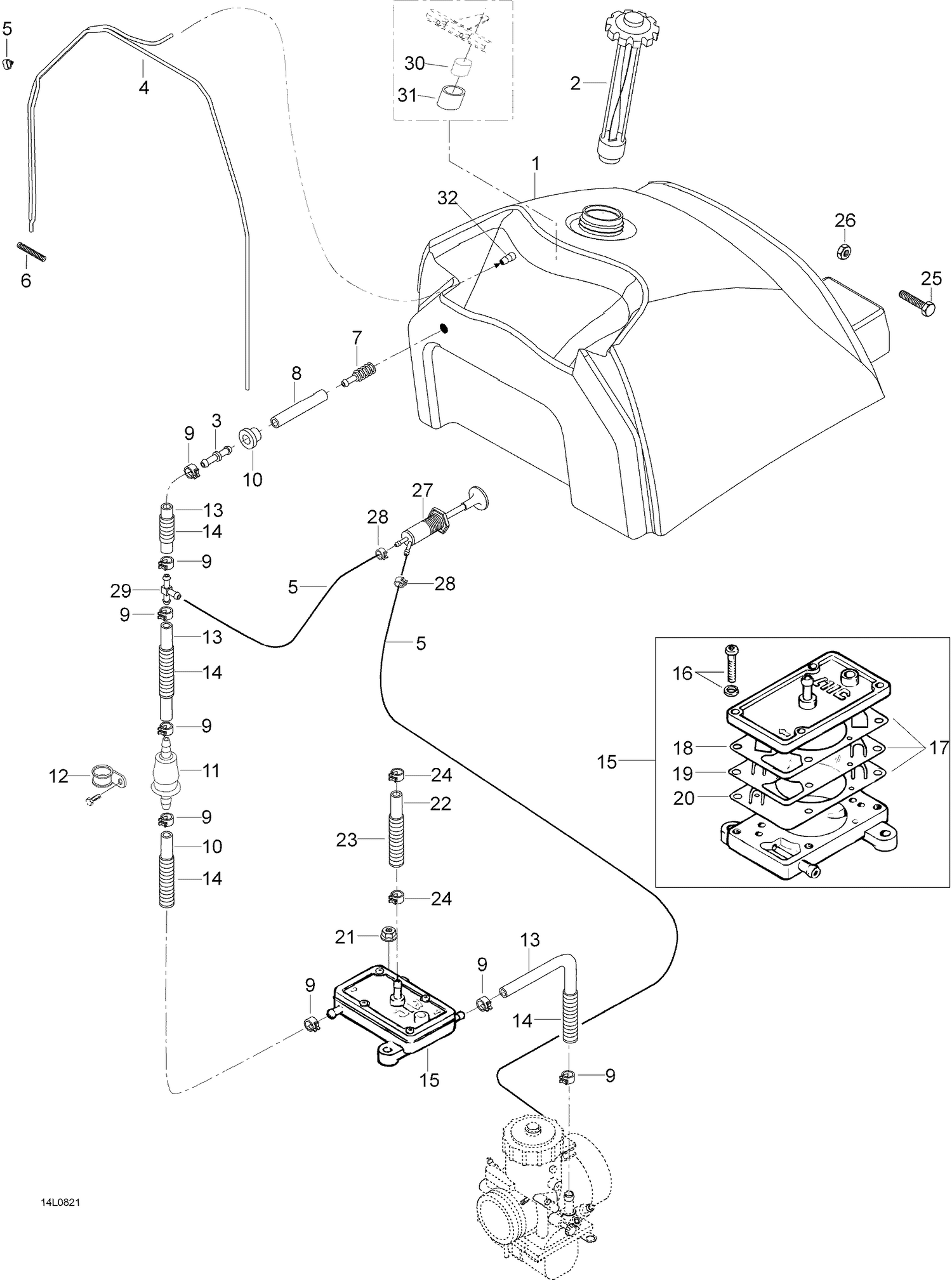

02- Fuel System
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5145048 | Polttoainetankki, 37L |
| 2 | 605349994 | Mittari-korkki |
| 3 | 414518500 | Nippel till bränsleslang |
| 4 | 39035 | Ilmaletku 5/3, 1800 mm |
| 5 | 513032923 | TUBE CLAMP - Call your local BRP dealership |
| 6 | 25006 | Fjäder |
| 7 | 414865700 | Filter för bränsletank |
| 8 | 39030 | HOSE - Call your local BRP dealership |
| 9 | 414554800 | Jousikiristin |
| 10 | 570045500 | Läpivientikumi |
| 11 | 605352516 | Polttoaineen suodatin |
| 12 | 27039 | Suojaspiraali |
| 13 | 39004 | Polttoaineletku 8/5 |
| 14 | 28012 | Skydd spiral slang |
| 15 | 403800800 | FUEL PUMP DF44-226A - Call your local BRP dealership |
| 16 | 420841460 | Ruuvit + aluslevyt |
| 18 | 420831935 | Tiiviste |
| 19 | 420861137 | Pump diaphgram |
| 20 | 420861135 | Pumpcase gasket |
| 21 | 33010 | Lock Nut M6 (1=10Pcs) |
| 22 | 39004 | Polttoaineletku 8/5 |
| 23 | 28015 | Suojaspiraali PP-MOD 13 (D=15.8) |
| 24 | 414420700 | Universal Spring Clamp |
| 25 | 40826 | Hex. screw M6 x 90 |
| 26 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 27 | 415060500 | Primer-pumppu |
| 28 | 543230 | Kiristin, primerletku |
| 29 | 21067 | Plastic T-fitting |
| 30 | 5446811 | Support sleeve |
| 31 | 605450311 | Gummi dämpare |
