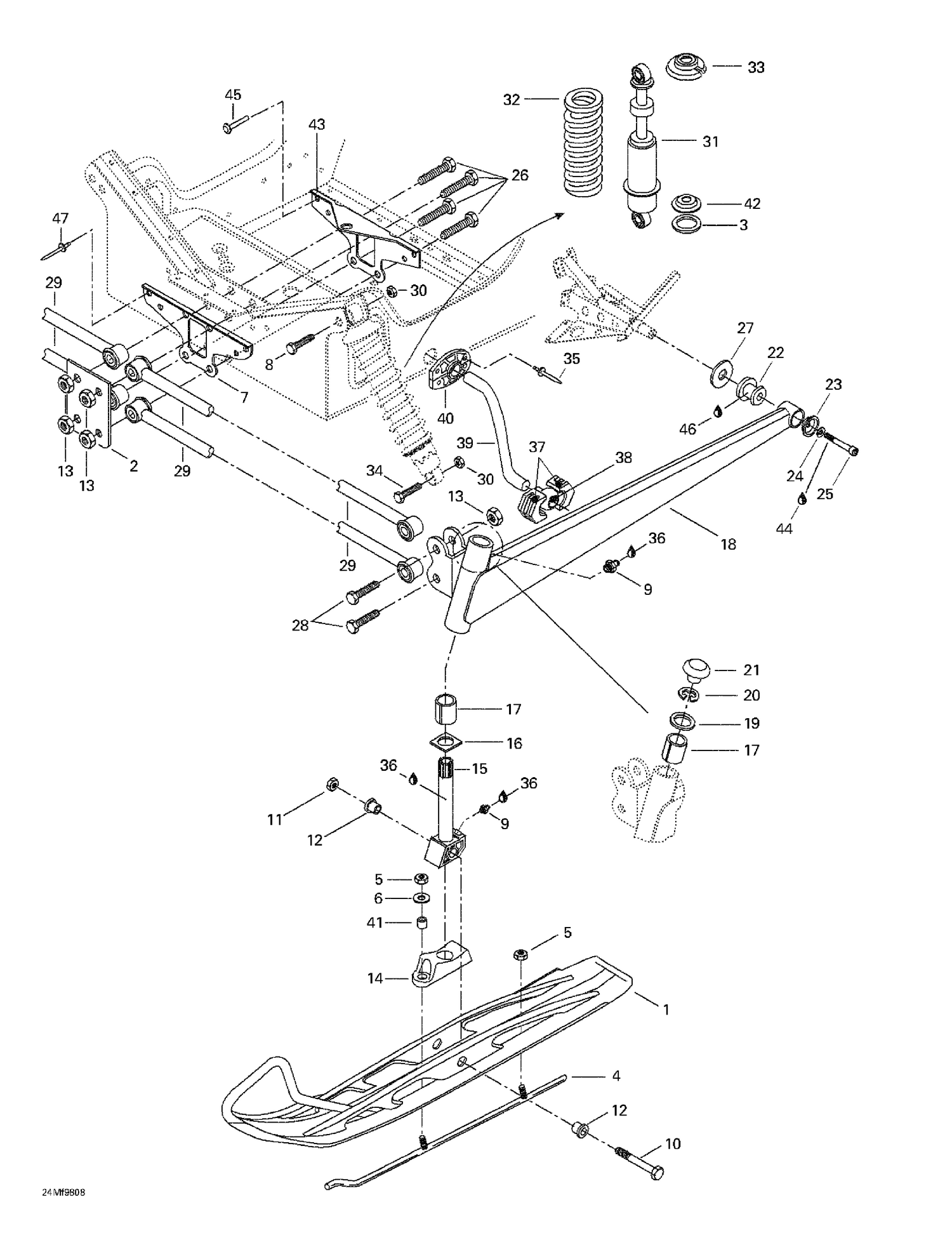

07- Front Suspension And Ski
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505067810 | Ski (Welded) |
| 2 | 518306700 | Support |
| 3 | 503184400 | Washer |
| 4 | 505066320 | Carbide Runner |
| 5 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 6 | 234082410 | Flat Washer 8 mm This part replaces 224080251. |
| 7 | 517254800 | Front Link Plate |
| 8 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership This part replaces 222006065. |
| 9 | 408200700 | Grease Fitting |
| 10 | 732601176 | Hex. Screw M12 |
| 11 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 12 | 414530600 | CUSHION - Call your local BRP dealership |
| 13 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 14 | 570053500 | Ski Stopper |
| 15 | 506144500 | Ski Leg |
| 16 | 506081200 | Wear Plate |
| 17 | 572069900 | Cushion |
| 18 | 506133610 | LH Swing Arm |
| 19 | 506080900 | Thrust Washer |
| 20 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 21 | 572091300 | Cap |
| 22 | 570062200 | DAMPER - Call your local BRP dealership |
| 23 | 705007171 | Cup This part replaces 506115800. |
| 24 | 234181401 | Lock Washer 8 mm This part replaces 224781140. |
| 25 | 205082544 | Socket Head Screw M8 X 25 This part replaces 222982565. |
| 26 | 732601113 | Hex. Screw M12 x 100 |
| 27 | 503146700 | WASHER - Call your local BRP dealership |
| 28 | 222025075 | Hex. Screw M12 x 50 |
| 29 | 580649700 | Arm Ass'y (42") |
| 30 | 233601416 | Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 31 | 415091300 | Front Shock |
| 32 | 414976100 | Spring (Red) |
| 33 | 706200881 | Spring Stopper This part replaces 503140600. |
| 34 | 207005544 | Hex. Screw M10 X 55 This part replaces 222005565. |
| 35 | 390402300 | Pop Rivet 3/16" |
| 36 | 413706100 | LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 37 | 572069800 | Block Sliding |
| 38 | 506127300 | Ball Joint |
| 39 | 506134100 | Stabilisator |
| 40 | 572077600 | Half-Bushing |
| 41 | 506117300 | BUSHING - Call your local BRP dealership |
| 42 | 503165100 | GUIDE_SPRING - Call your local BRP dealership |
| 43 | 517254900 | Rear Link Plate |
| 44 | 293800060 | Loctite 243, 10 ml This part replaces 413703000. |
| 45 | 390909200 | Avex Rivet |
| 46 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 506133710 | Bras | Oscillant DDR 506133710 |
| 506133710 | RH | Swing Arm 506133710 |
