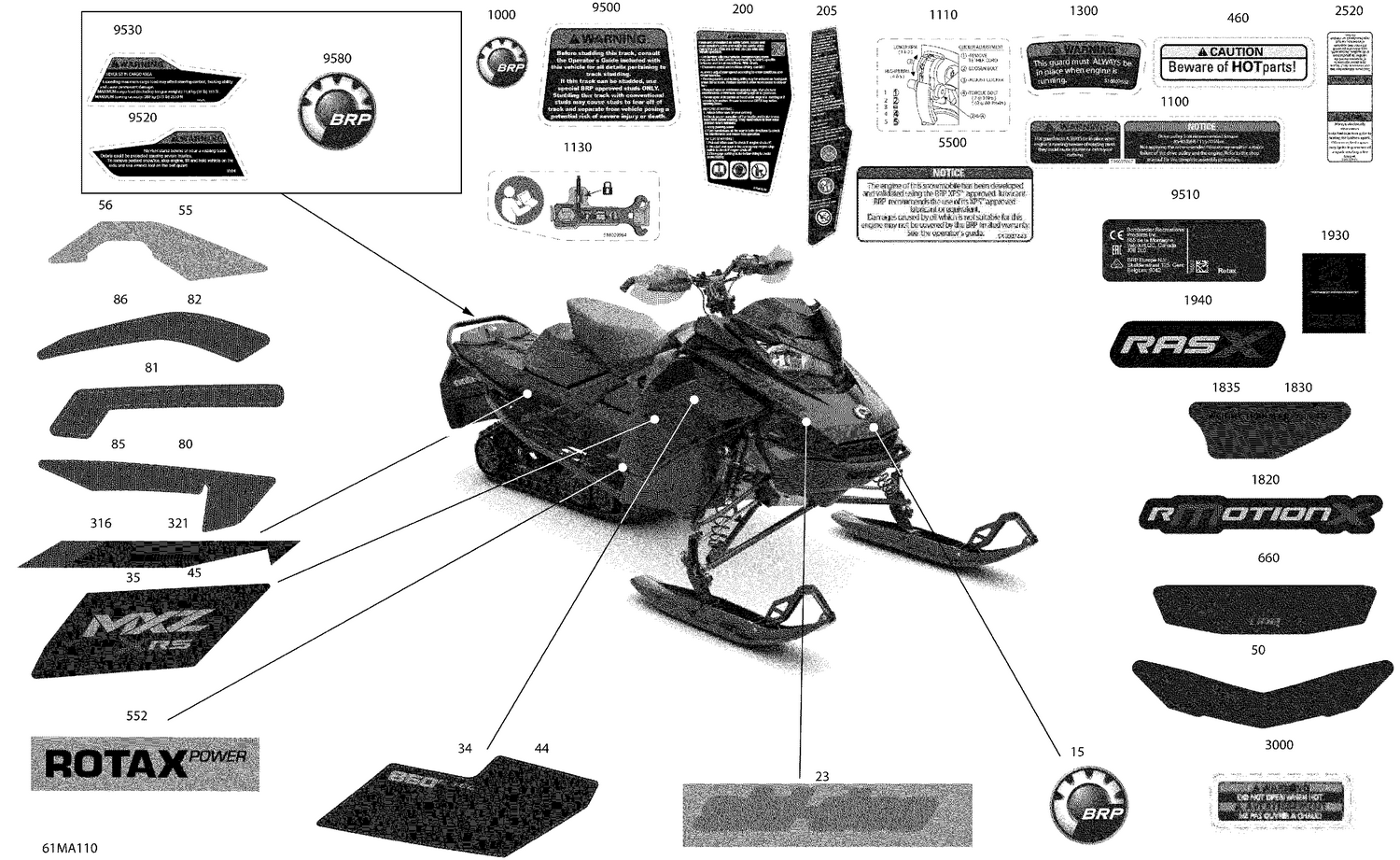

07- Body - Decals
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | BRP Logo 68mm |
| 23 | 516009999 | Decal "Ski-Doo" |
| 34 | 516009991 | Decal RH Upper Panel "850 E-TEC" |
| 35 | 516010562 | Decal RH Central Panel "MXZ XRS" |
| 44 | 516009990 | Decal LH Upper Panel "850 E-TEC" |
| 45 | 516010563 | Decal LH Central Panel "MXZ XRS" |
| 50 | 516009282 | Front Hood Decal "MXZ" |
| 55 | 516010485 | RH Decal Console Over |
| 56 | 516010483 | LH Decal Console Over |
| 80 | 516010001 | Decal Front Hood |
| 81 | 516010002 | RH Decal Central Hood |
| 82 | 516010004 | RH Rear Hood Decal |
| 85 | 516010000 | LH Front Hood Decal |
| 86 | 516010003 | LH Rear Hood Decal |
| 200 | 516009232 | LH Warning Decal Security |
| 205 | 516010558 | RH Warning Decal Security |
| 316 | 516009989 | RH Rear Tunnel Decal |
| 321 | 516009988 | LH Rear Tunnel Decal |
| 460 | 516005280 | Caution Decal Hot Parts |
| 552 | 516009992 | Decal Lower Panel ROTAX POWER |
| 660 | 516009856 | Standard Decal "Linq" |
| 1000 | 704904615 | BRP Logo13 mm |
| 1100 | 516007667 | Warning Decal |
| 1110 | 516009265 | Decal Ramp Clicker |
| 1130 | 516009984 | Decal Tool |
| 1300 | 516007652 | Engine Guard Warning Decal |
| 1820 | 516010174 | Runner Decal |
| 1830 | 516010584 | LH Label "Weight Transfer Adjuster" |
| 1835 | 516010585 | RH Label "Weight Transfer Adjuster" |
| 1930 | 516005534 | Shock Adjustment Decal |
| 1940 | 516010603 | Decal Suspension "RASX" |
| 2520 | 516007661 | Warning Decal, Injectors |
| 3000 | 516005904 | Warning Decal |
| 5500 | 516008439 | Oil Warning Decal |
| 9500 | 516007645 | Rear Track Warning Decal |
| 9510 | 516010650 | Label Europe This part replaces 516010557. |
| 9520 | 516008594 | LH Safety Label |
| 9530 | 516010575 | Cargo Load Instruction Label |
