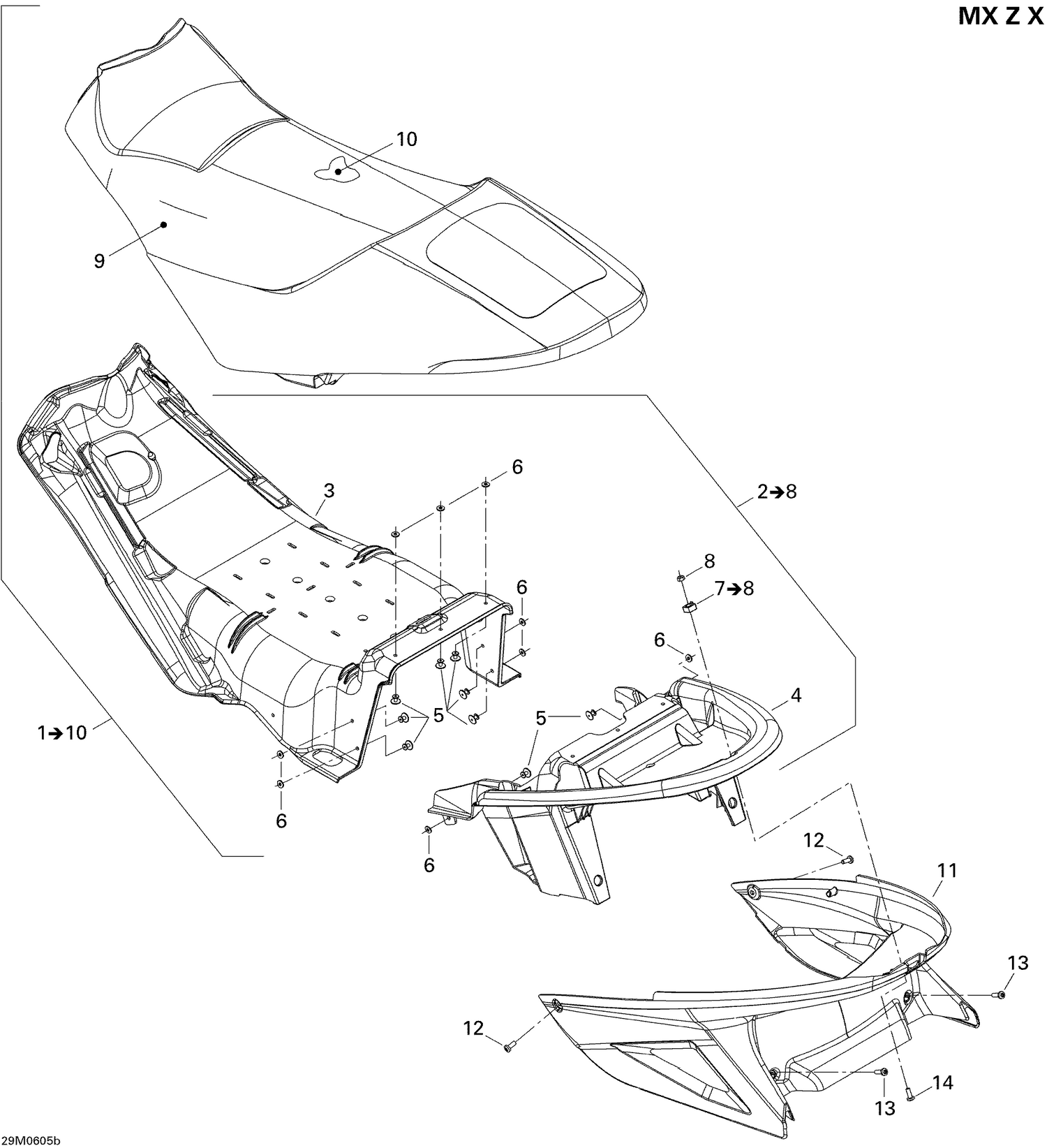

09- Seat 800 X
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 3 | Not | Available As Spare Part - Seat Base, Front |
| 4 | Not | Available As Spare Part - Seat Base, Rear |
| 5 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 6 | 517225900 | Flat Washer |
| 8 | 232561414 | Elastic Stop Nut M6 |
| 10 | 510004216 | Seat Foam |
| 12 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 13 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
