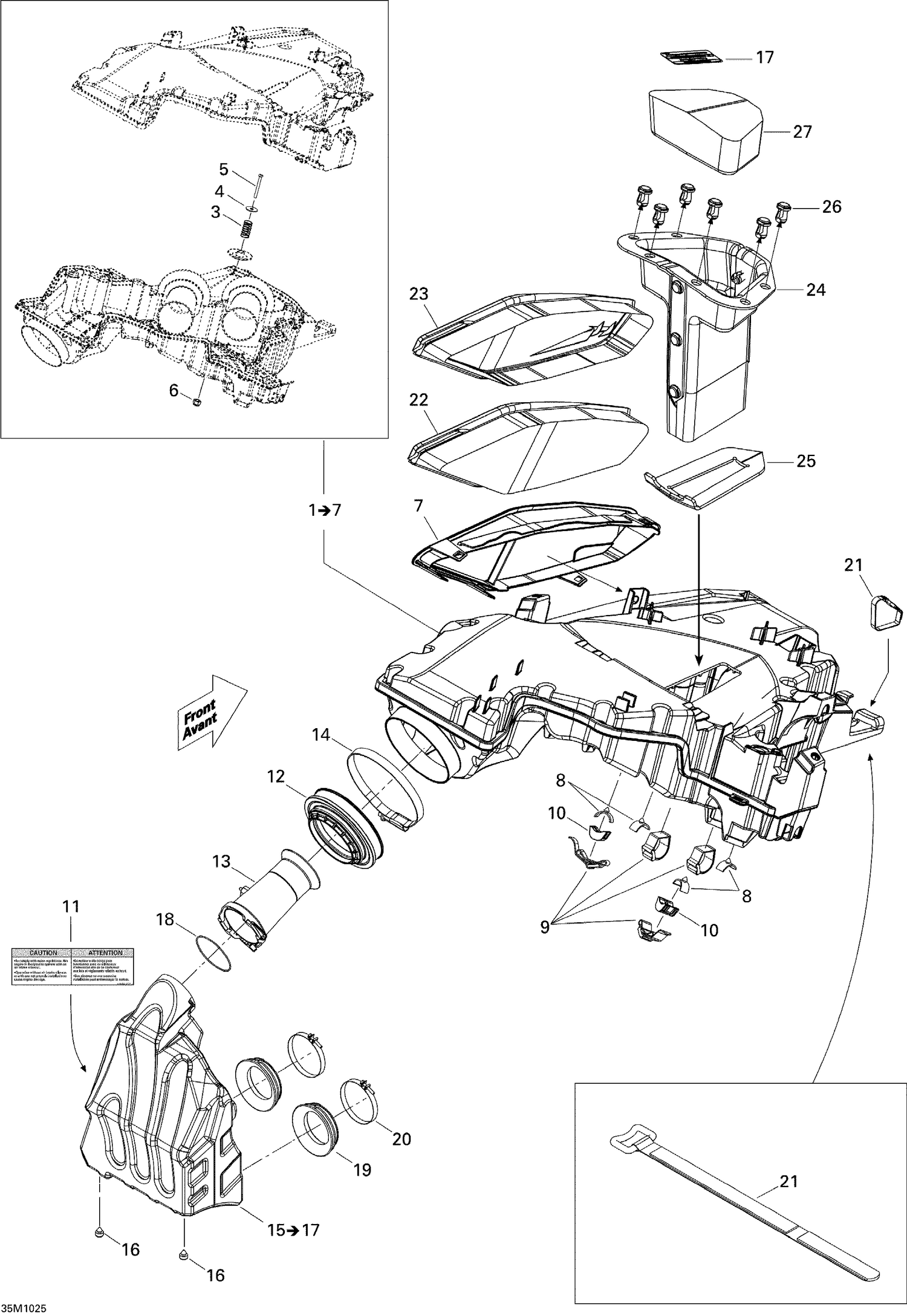

02- Air Intake System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 508000576 | Spring |
| 4 | 224060201 | Flat Washer |
| 5 | 205444086 | Socket Head Screw M4 X 40 |
| 6 | 232541414 | Elastic Stop Nut M4 |
| 7 | 508000568 | Air Intake Filter |
| 8 | 508000537 | Stopper |
| 9 | 508000820 | Velcro Strip This part replaces 508000532. |
| 10 | 508000572 | Bumper |
| 11 | 516002965 | WARNING DECAL, HOT PARTS - Call your local BRP dealership |
| 12 | 508000567 | Boot |
| 13 | 508000662 | Flute |
| 14 | 514052924 | Norma Clamp |
| 16 | 293830005 | Rubber Bumper |
| 17 | 516003371 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 18 | 293300140 | O'RING - Call your local BRP dealership |
| 19 | 508000721 | INTAKE ADAPTER - Call your local BRP dealership This part replaces 508000536. |
| 20 | 508000346 | Gemi Clamp |
| 21 | 508000599 | Velcro Strip |
| 22 | 415129377 | Foam Filter |
| 23 | 415129376 | Filter Cover |
| 24 | 508000633 | AIR DUCT ASS'Y - Call your local BRP dealership |
| 25 | 508000637 | FOAM - Call your local BRP dealership |
| 26 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
