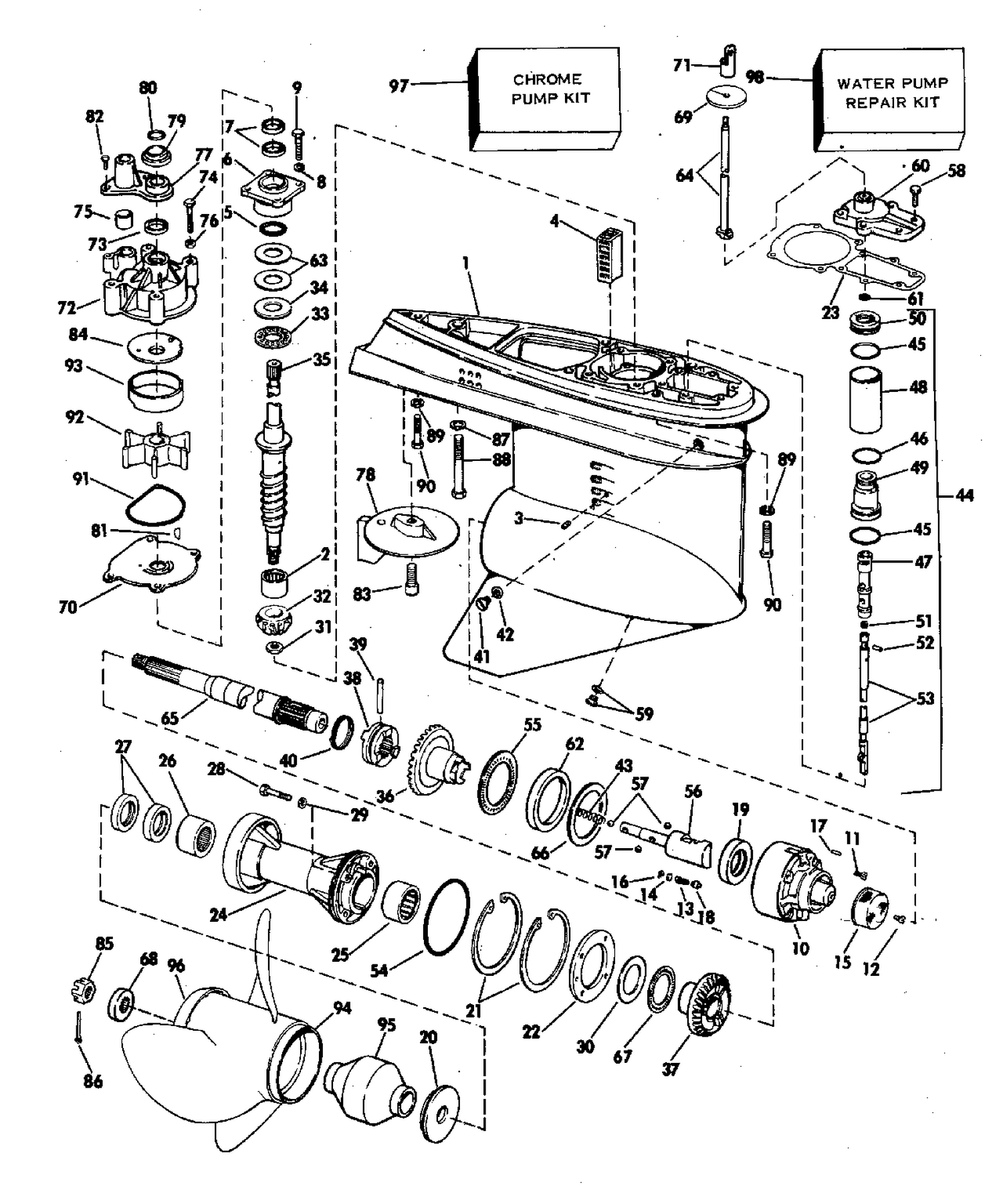

| Ref | Part Number | Description |
|---|
| 1 |
0390528 |
GEARCASE & BRG ASSY This part replaces 0389109. |
| 10 |
0389035 |
OIL PUMP HOUSING & COVER |
| 18 |
0322879 |
GUIDE,Ball valve |
| 20 |
0333592 |
THRUST BUSHING This part replaces 0321173. |
| 21 |
0321171 |
RETAINING RING |
| 22 |
0321174 |
PLUG, Large |
| 23 |
0909118 |
GASKET, Solenoid cover |
| 24 |
0387374 |
BEARING HOUISNG & SEAL ASSY |
| 28 |
0316563 |
SCREW |
| 29 |
0317178 |
O RING |
| 32 |
5004941 |
Gearset This part replaces 0323206. |
| 35 |
5000775 |
Kit Ayd/Shaft-20 This part replaces 0387322. |
| 35 |
5000776 |
Kit Ay This part replaces 0387327. |
| 36 |
5004941 |
Gearset This part replaces 0389040. |
| 44 |
0387171 |
SHIFT ASSY., Gearcase |
| 47 |
0320299 |
VALVE, Shift assy |
| 48 |
0320139 |
CYLINDER, Shift assy |
| 49 |
0320137 |
PISTON, Shift assy |
| 50 |
0320138 |
CAP, Pis 1 |
| 52 |
0320176 |
PIN, Push rod |
| 53 |
0388642 |
PUSH ROD ASSY |
| 54 |
0305123 |
O RING This part replaces 0321119. |
| 56 |
0389408 |
SHIFT ROD & BEARING ASSY |
| 58 |
0335020 |
SCREW, Bracket to block This part replaces 0318139. |
| 60 |
0387384 |
COVER & SEAL ASSY |
| 62 |
0323516 |
THRUST WASHER, Forward gear |
| 63 |
0314742 |
SHIM BEARING HOUSING |
| 64 |
0318138 |
SHIFT ROD |
| 64 |
0320735 |
SHIFT ROD |
| 65 |
0982416 |
PROP SFT SPR & GUIDE ASSY This part replaces 0389041. |
| 66 |
0323517 |
SHIM, .002 |
| 66 |
0323518 |
SHIM, .003 |
| 66 |
0323519 |
SHIM, .004 |
| 69 |
0322302 |
SEAL, Adapter to frame |
| 70 |
0435027 |
CUP & PLATE This part replaces 0321188. |
| 71 |
0321300 |
CONNECTOR, Shift rod |
| 72 |
0387385 |
IMPELLER HOUSING ASSY |
| 74 |
0323626 |
SCREW This part replaces 0302873. |
| 76 |
0329241 |
RONDELLE This part replaces 0305981. |
| 78 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0316981. |
| 83 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 84 |
0321176 |
PALTE,Liner,impeller |
| 86 |
0309955 |
COT PIN,Prop nut |
| 87 |
0306314 |
L'WASHER,Scr,long |
| 88 |
0313697 |
SCR,Grc to hsg.long |
| 89 |
0307708 |
RONDELLE GROWER |
| 90 |
0320741 |
SCREW, Gearcase to exhaust hsg |
| 91 |
0321120 |
SEAL |
| 92 |
0385528 |
IMPELLER ASSEMBLY |
| 93 |
0322894 |
LINER, Impeller |
| 94 |
0387158 |
PEOPELLER, 15-1/2 x 13 |
| 94 |
0387159 |
PROP,15-1/2x15 |
| 94 |
0387161 |
PROP,14-1/2x19 |
| 94 |
0387162 |
PROP,14-1/2x21 |
| 94 |
0387163 |
PROP,14-1/2x23 |
| 94 |
0387519 |
PROPELLER, 14-1/2 x 19 SST |
| 94 |
0387520 |
PROPELLER, 14-1/4 x 21 SST |
| 94 |
0387995 |
PROP, 14-1/2 x 24 sstr |
| 94 |
0387996 |
PROP, 14-1/2 x 26 sstr |
| 94 |
0387997 |
PROP.14-1/2X28SSTR |
| 94 |
0389019 |
PROP, 14-1/2 x 23 SST |
| 94 |
0389925 |
PROP, 15 x 16 SST This part replaces 0387518. |
| 94 |
0765187 |
PROPELLER, WDEX Models This part replaces 0387160. |
| 97 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0389165. |
| 0389082 |
0389082 |
GEARCASE ASSY., Complete |
| 0389083 |
0389083 |
GEARCASE ASSY., Complete |
