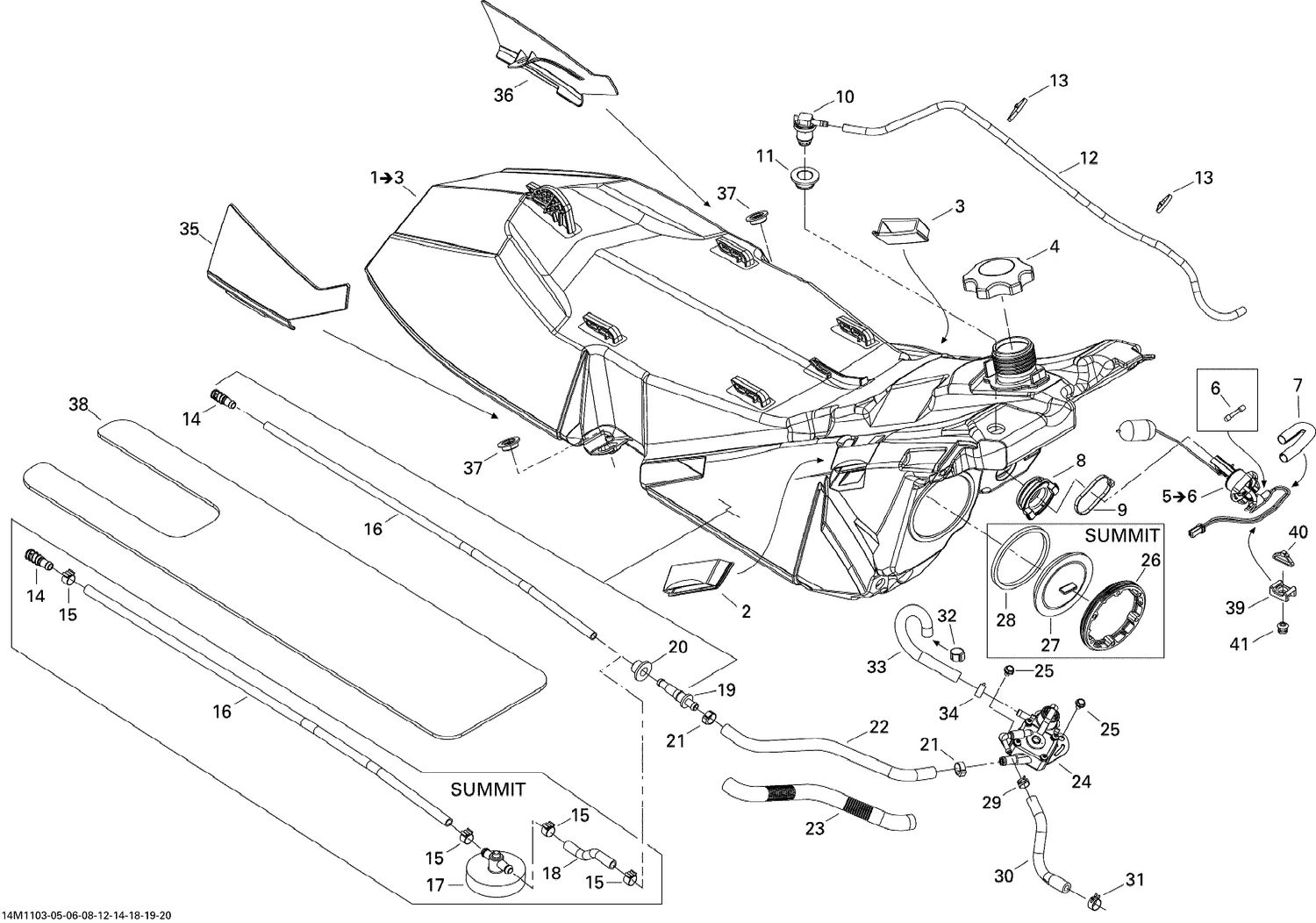

02- Fuel System — Parts Catalog

Ref	Part Number	Description
2	513033471	RH Panel Clip
3	513033472	LH Panel Clip
4	513033025	Fuel Tank Cap
6	710001995	Fuse, 0.5 Ampère
7	219704407	Tubing 10 MM 1000MM Long
8	513033606	Grommet
9	293750008	Tie Wrap 368 mm
10	513033842	Check Valve This part replaces 513033188.
11	513033596	Grommet
12	219704410	Polyurethane Hose 10000Mm Long
13	414115200	Tie-Rap 180 mm
14	414872100	Fuel Filter Strainer
15	XXX	Not Available As Spare Parts
16	219704391	Polyurethane Hose 1000mm Long This part replaces 513033332.
17	XXX	Not Available As Spare Parts
18	XXX	Not Available As Spare Parts
19	414872700	Male Connector
20	513033435	Grommet
21	293650053	Crimp Clamp
22	513033165	Formed Hose
23	219704408	Tubing 16 Mm 1000Mm Long
24	513033184	Fuel Pump
25	210261040	Hex. Flange Screw M6 X 10
26	XXX	Not Available As Spare Parts
27	XXX	Not Available As Spare Parts
28	XXX	Not Available As Spare Parts
29	414415200	Spring Clamp
30	513033327	Formed Hose
31	513033029	Universal Spring Clamp
32	293650125	Oetiker Clamp
33	513033343	Formed Hose
34	414655700	Spring Clamp
35	513033418	RH Cap
36	513033419	LH Cap
37	513033326	Shoulder Bushing
38	513033588	Insulating Foam
39	515176795	Tie Rap Mount (screwable)
40	293750002	Tie Wrap 142 mm
