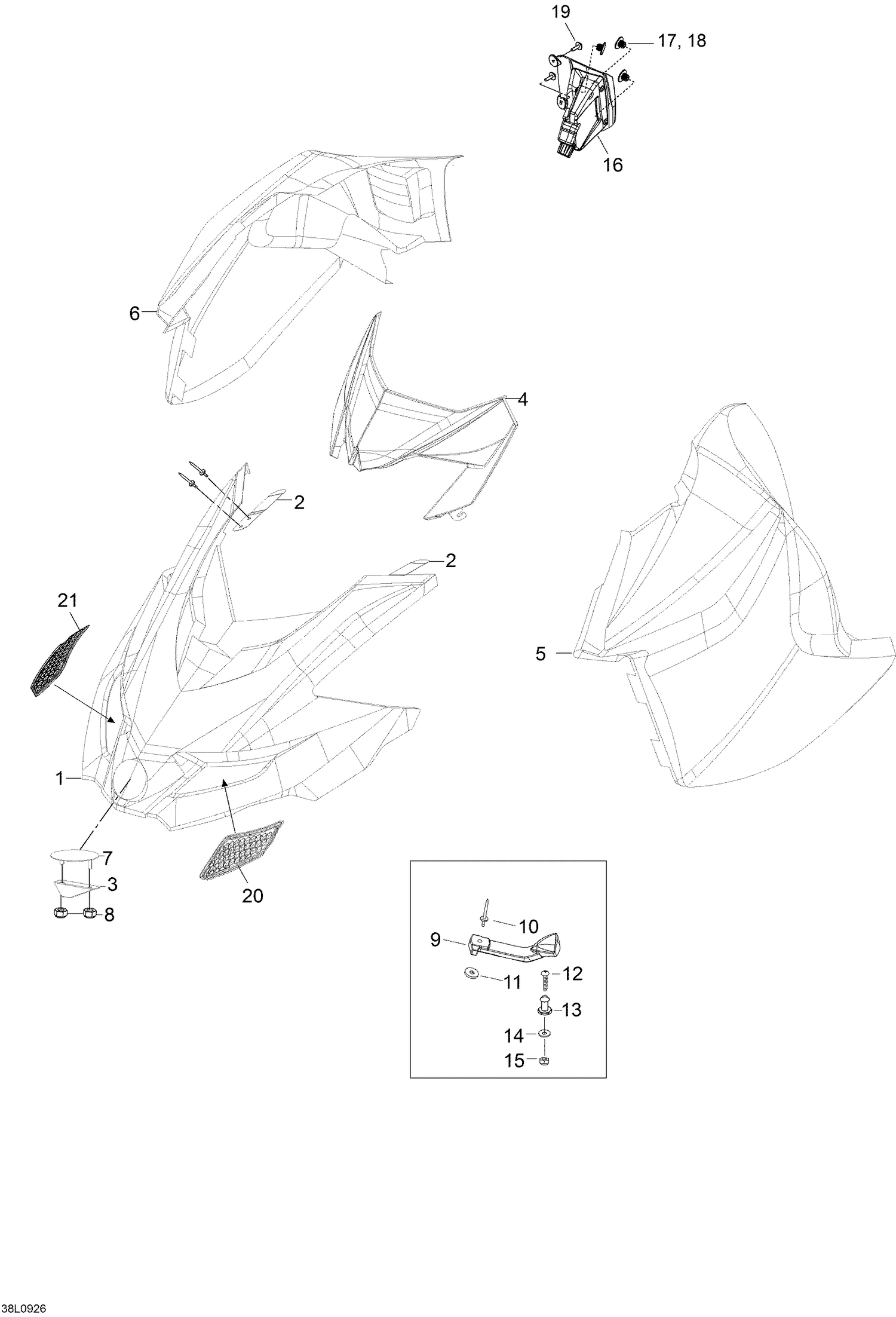

09- Hood
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304003 | Hood/console |
| 2 | 517304152 | Rear fastening plate |
| 3 | 517304153 | Front fastenung plate |
| 4 | 517303979 | Headlamp cover |
| 5 | 517304337 | L.H. Panel |
| 6 | 517304004 | R.H. Panel |
| 7 | 605455262 | Logo spacer |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9 | 5342952 | Hood Latch |
| 10 | 36037 | Rivet |
| 11 | 20008 | Washer A5,3 |
| 12 | 40168 | Screw M4 x 25 |
| 13 | 605449087 | Counter roller |
| 14 | 20037 | Washer |
| 15 | 33008 | Elastic stop nut M4 |
| 16 | 517304322 | Hood/console R.H. |
| 17 | 275500241 | Cap, Black |
| 18 | 413408300 | Loctite, Black Max, 3 ml |
| 19 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 20 | 517304141 | R.H. Hood grill |
