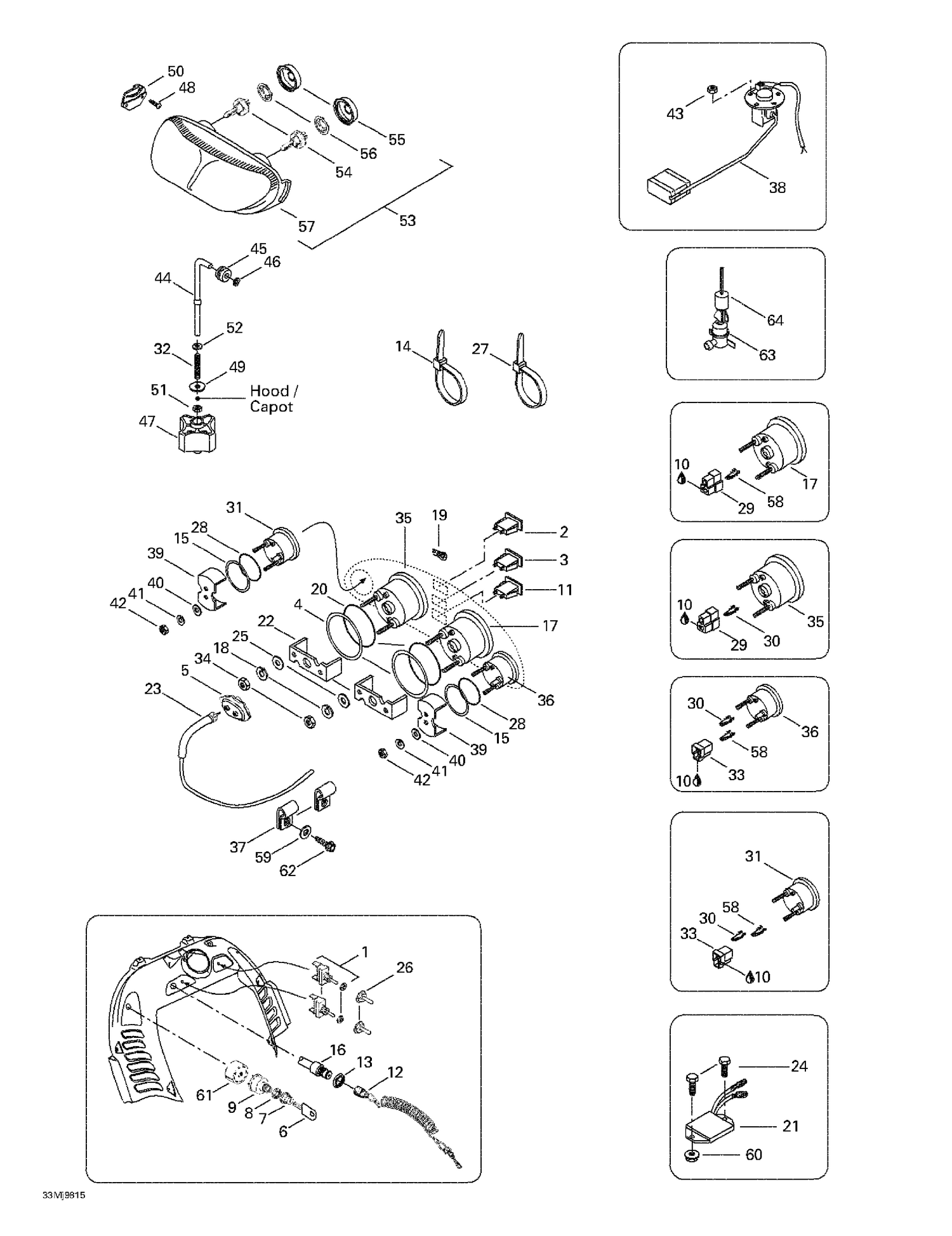

| Ref | Part Number | Description |
|---|
| 1 |
410107300 |
Switch (Heating Grip) |
| 2 |
410109500 |
Pilot Lamp (Red) |
| 3 |
410109600 |
Pilot Lamp (Blue) |
| 4 |
517258500 |
Washer |
| 5 |
572022300 |
Drive Angle |
| 6 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 7 |
570013700 |
Switch Boot |
| 8 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 9 |
410111300 |
IGNITION SWITCH - Call your local BRP dealership |
| 10 |
293550004 |
Dielectric Grease, 150 g This part replaces 413701700. |
| 11 |
410113300 |
Pilot Lamp, Dess |
| 12 |
515178284 |
DESS This part replaces 515166900. |
| 13 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 14 |
293750008 |
Tie Wrap 368 mm This part replaces 748001001. |
| 15 |
517258600 |
WASHER - Call your local BRP dealership |
| 16 |
515166800 |
TERMINAL ASSY - Call your local BRP dealership |
| 17 |
415096300 |
Speedometer (KMH) |
| 18 |
414806700 |
Lock Washer |
| 19 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 20 |
414807100 |
O-Ring |
| 21 |
515173200 |
Voltage Regulator |
| 22 |
414806500 |
Case Holder |
| 23 |
415101500 |
Speedometer Cable |
| 24 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 25 |
517225900 |
Flat Washer This part replaces 414806800. |
| 26 |
515175281 |
Switch Cover This part replaces 570013900. |
| 27 |
414115200 |
Tie-Rap 180 mm |
| 28 |
414807200 |
O-RING - Call your local BRP dealership |
| 29 |
409204500 |
MALE HOUSING - Call your local BRP dealership |
| 30 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
| 31 |
415097300 |
Fuel Gauge |
| 32 |
415100600 |
SPRING - Call your local BRP dealership |
| 33 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 34 |
414806900 |
Nut |
| 35 |
415096500 |
Tachometer |
| 36 |
415097200 |
Temperature Gauge |
| 37 |
414176000 |
Open Clamp |
| 38 |
415080800 |
Fuel Sensor Ass'y |
| 39 |
415099800 |
Case Holder |
| 40 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 41 |
414833700 |
Lock Washer |
| 42 |
414833600 |
NUT - Call your local BRP dealership |
| 43 |
232551414 |
Elastic Stop Nut M5 This part replaces 228551045. |
| 44 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 45 |
415100800 |
Grommet - Call your local BRP dealership |
| 46 |
732610072 |
Push Nut |
| 47 |
515175548 |
Handle - Call your local BRP dealership This part replaces 572100800. |
| 48 |
210641940 |
SCREW M4.8 X 19 - Call your local BRP dealership This part replaces 732600033. |
| 49 |
Not |
Available As Spare Part - Flat Washer |
| 50 |
517289300 |
RH Support |
| 51 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 52 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 54 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 55 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 56 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 57 |
515176311 |
Halogen Headlamp Ass'y This part replaces 410609401. |
| 58 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 59 |
391301600 |
Washer |
| 60 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 61 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 62 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 63 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
| 517289400 |
LH |
Support 517289400 |
| 517289400 |
Support |
GA 517289400 |
