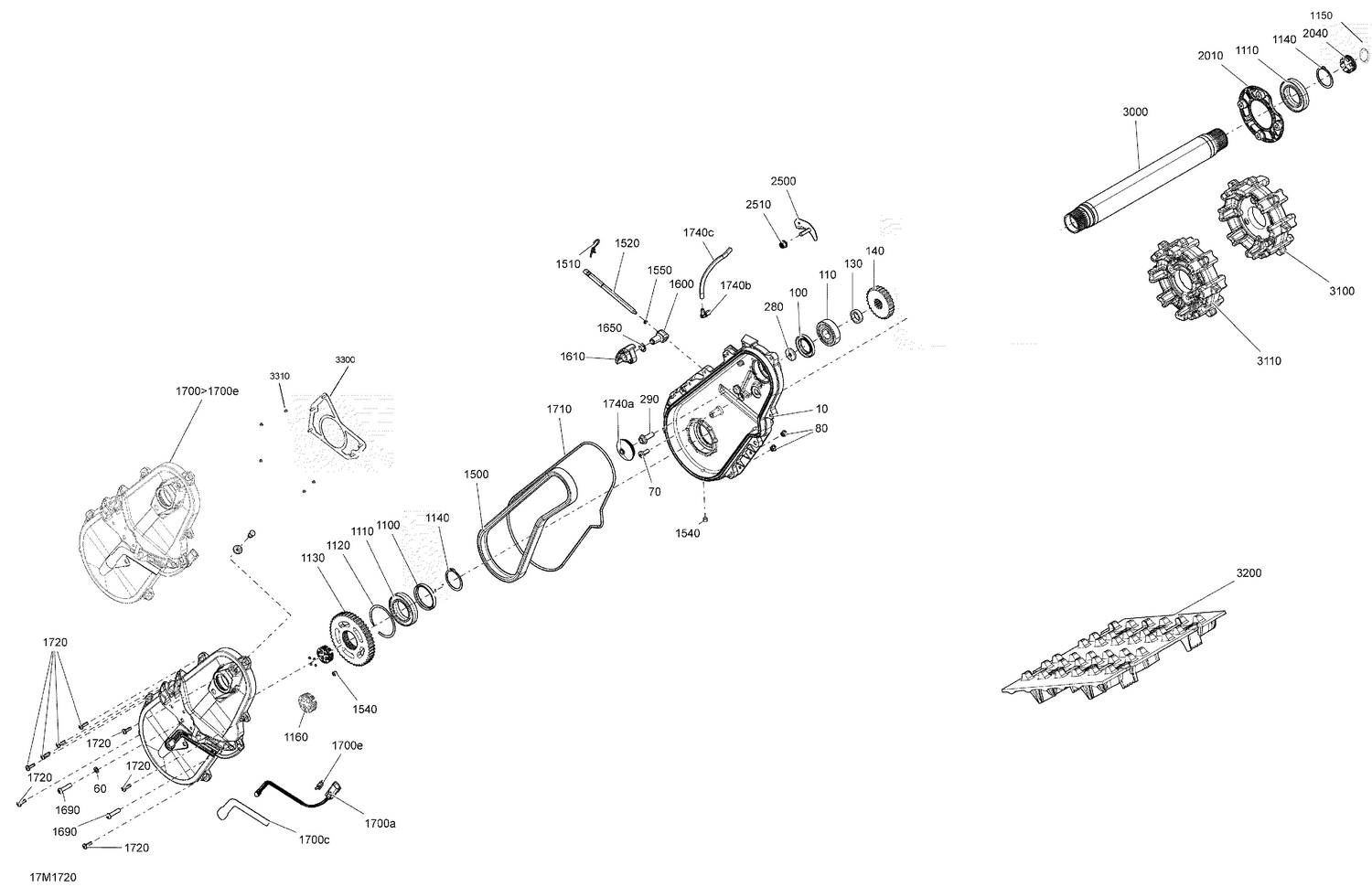

05- Drive System - All Models
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 504154102 | Black, Chain Case Ass'y This part replaces 504153467. |
| 60 | 504082900 | Washer |
| 70 | 250000740 | Torx Screw M8 X 20, Scotch Grip |
| 80 | 233261434 | Flange Elastic Nut M6 |
| 100 | 293200158 | Oil Seal |
| 110 | 293350115 | Ball Bearing |
| 120 | 504152576 | Circlip |
| 130 | 504152628 | Shim |
| 280 | 504152784 | Spring Washer M10 |
| 290 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 1100 | 293200159 | Oil Seal |
| 1110 | 293350059 | Ball Bearing |
| 1120 | 504152582 | Circlip |
| 1140 | 504152572 | Circlip |
| 1150 | 293300201 | O-Ring |
| 1160a | 504153697 | Magnetic Cap This part replaces 504153308. |
| 1500 | 504153268 | Drive Chain, 112 Links |
| 1500 | 504153397 | Drive Chain 116 Links |
| 1510 | 414575600 | Hair Pin |
| 1520 | 504153760 | Adjustment Screw This part replaces 504153309. |
| 1540 | 250500013 | Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1550 | 293300202 | O-Ring |
| 1600 | 504153559 | Tensioner |
| 1610 | 504153312 | Slider Chain |
| 1650 | 293370105 | Circlip |
| 1690 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
| 1700a | Not | Available As Spare Part - Rotation Sensor |
| 1700c | Not | Available As Spare Part - Plate |
| 1700e | 515178223 | Clip Connector |
| 1710 | 293300200 | O-Ring |
| 1720 | 250001012 | Torx T-30 Pan HD Taptite M6X20 This part replaces 250000870. |
| 1740a | 504152860 | Cap |
| 1740b | 414580700 | Male Connector |
| 1740c | 219704410 | Polyurethane Hose 10000Mm Long |
| 1790 | 250000360 | Hex. Flange Screw M6 X 1.0 X 30 |
| 2010 | 504153886 | Retaining Ring This part replaces 504153426. |
| 2020 | 293350059 | Ball Bearing |
| 2030 | 293300122 | O-Ring |
| 2040 | 504153697 | Magnetic Cap This part replaces 504153308. |
| 2050 | 504152572 | Circlip |
| 2500 | 504153099 | BEARING HOUSING - Call your local BRP dealership |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3100 | Not | Available As Spare Part - LH Sprocket Ass'y - 6 Teeth |
| 3110 | Not | Available As Spare Part - RH Sprocket Ass'y - 6 Teeth |
| 3130 | 504153364 | Collar Ass'y |
| 3160 | 207583087 | Hex. Flange Screw M8 X 30 |
| 3180 | 250200111 | Washer |
| 3190 | 250000414 | Socket Head Screw M8 X 22 |
| 3200a | 415130083 | Track Guide |
| 3200b | 415130084 | Cleat |
| 3300 | 504153560 | Plate Ass'y |
| 3310 | 233261434 | Flange Elastic Nut M6 |
| 4000 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
