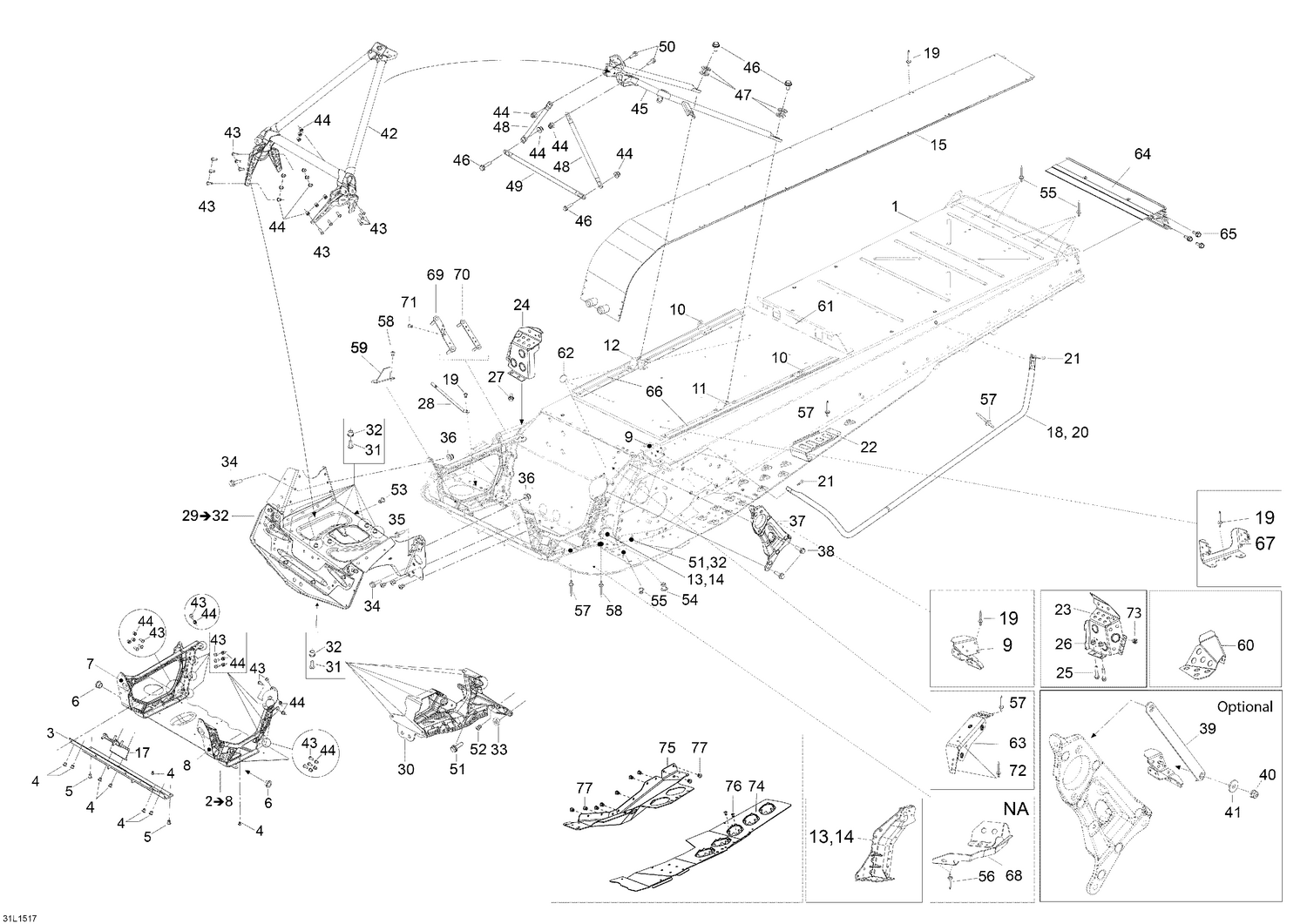

09- Frame
Parts (76)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518328195 | FRAME XU E-TEC PPS ECS BLACK |
| 2 | 518328186 | Module E |
| 3 | 518326198 | Front member |
| 4 | 293150119 | Rivet hucklok |
| 5 | 293150120 | Rivet hucklok |
| 6 | 505072690 | Leg Bushing |
| 7 | 518326795 | R.H. Member |
| 8 | 518326796 | L.H. Member |
| 9 | 605355235 | FASTENING BRACKET - Call your local BRP dealership |
| 10 | 518325987 | Seat box bracket |
| 11 | 518326109 | SUPPORT TUBE BRACKET LH - Call your local BRP dealership |
| 12 | 518326110 | SUPPORT TUBE BRACKET RH - Call your local BRP dealership |
| 13 | 518325524 | Frame corner L.H. |
| 14 | 518325526 | FRAME CORNER RH - Call your local BRP dealership |
| 15 | 509000975 | Radiator This part replaces 509000626. |
| 17 | 518325943 | MAG Support |
| 18 | 518326963 | Footrest support tube L.H. |
| 19 | 390909200 | Avex Rivet |
| 20 | 518326964 | Footrest support tube R.H. |
| 21 | 207662086 | SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 22 | 520001208 | Footrest black (Optional) |
| 23 | 518327374 | Toe hook L.H. Black |
| 24 | 518327376 | Toe hook R.H. Black |
| 25 | 207662056 | Hex. Flange screw M6 x 20 |
| 26 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 27 | 250000223 | Torx Truss Screw M6 x 16 |
| 28 | 514054616 | SPRING BRACKET - Call your local BRP dealership |
| 29 | 518328392 | Cross member |
| 30 | 518327487 | Support |
| 31 | 207662044 | Hex. Flange Screw M6 X 20 |
| 32 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 33 | 233281414 | Hex. Flange Elastic Nut M8 |
| 34 | 210262050 | Forming Screw M6 x 20 This part replaces 210262080. |
| 35 | 250000450 | SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 36 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 37 | 518328434 | Pulley support mach. |
| 38 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 39 | 518326449 | DRAFT BAR - Call your local BRP dealership |
| 40 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 41 | 234081430 | Flat Washer M8 |
| 42 | 518326970 | Member-front |
| 43 | 207662044 | Hex. Flange Screw M6 X 20 |
| 44 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 45 | 518329107 | UPPER SUPPORT TUBE WELDED M6 - Call your local BRP dealership This part replaces 518326103. |
| 46 | 207662056 | Hex. Flanged screw M6 x 20 |
| 47 | Not | Available As Spare Part - Lock washer D6 |
| 48 | 518325114 | Support |
| 49 | 518325115 | Upper colum |
| 50 | 250000450 | SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 51 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 52 | 293150266 | Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 53 | 293730042 | Dart 5-6 |
| 54 | 414644300 | Black, Dart |
| 55 | 390909200 | Avex Rivet |
| 56 | 293150104 | Pop Rivet 3/16 |
| 57 | 293150102 | Rivet avex 12 mm. |
| 58 | 293150163 | Rivet Hucklok |
| 59 | 518326642 | Muffler support plate |
| 60 | 518325626 | Brake hose cover |
| 61 | 518325986 | BATTERY SUPPORT PLATE - Call your local BRP dealership |
| 62 | 518325560 | Adhesive patch |
| 63 | 518326430 | Clinch nut plate |
| 64 | 518328748 | Rear Profile This part replaces 518327194. |
| 65 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 66 | 518326107 | Fastening rail |
| 67 | 515177073 | FUSEBOX SUPPORT - Call your local BRP dealership |
| 68 | NOT | IN USE Pulley cover plate (NA models) NOT IN USE |
| 69 | 518326123 | Gearbox Counter Plate Front |
| 70 | 518326124 | Gearbox Counter Plate Rear |
| 71 | 390402200 | Pop Rivet 3/16 |
| 72 | 293150183 | Rivet hemlock 19.7 mm. |
| 73 | 605636003 | Clinch Nut M6 Hexsert |
| 74 | 518328332 | Footrest LH |
| 74 | 518328333 | Footrest RH |
| 75 | Not | Available As Spare Part - Drive Axle Cover LH |
| 76 | 390909100 | Avex Rivet |
