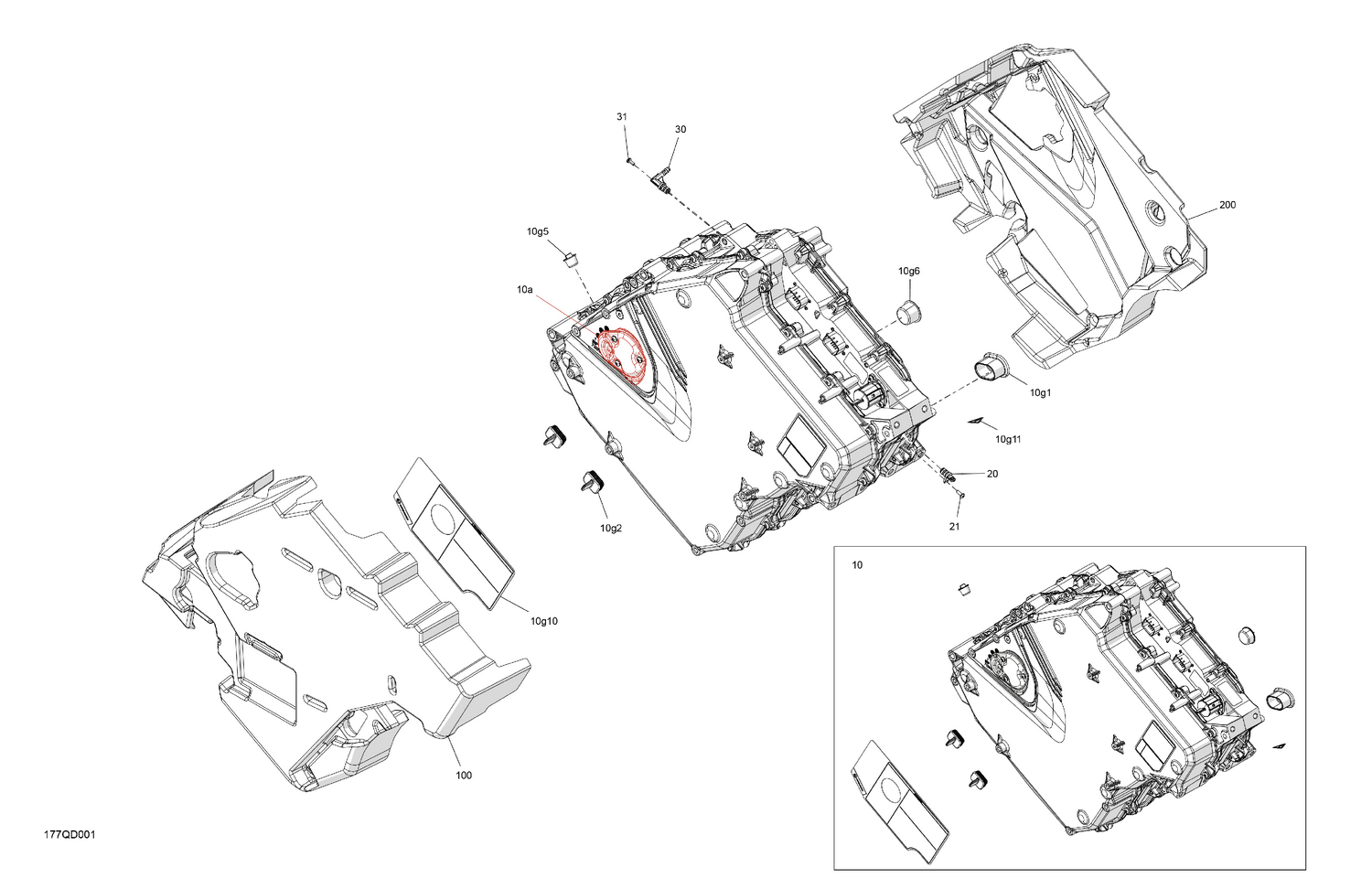

08- Electric - Energy Storage
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 219800632 | Protection Plate Ass'y |
| 10g1 | 712500021 | Connector Plug |
| 10g10 | 712500028 | Warning Labels |
| 10g11 | 516012096 | High Voltage Pictogram Label |
| 10g2 | 712500022 | Connector Plug |
| 10g5 | 712500026 | Cooling Cap |
| 10g6 | 712500027 | Cooling Cap |
| 20 | 293710201 | Plug Ass'y |
| 21 | 250001298 | Torx Head Screw M4 X 10 |
| 30 | 293710199 | Coolant Manifold Ass'y |
| 31 | 250001298 | Torx Head Screw M4 X 10 |
| 100 | 508001249 | LH Protective Foam |
