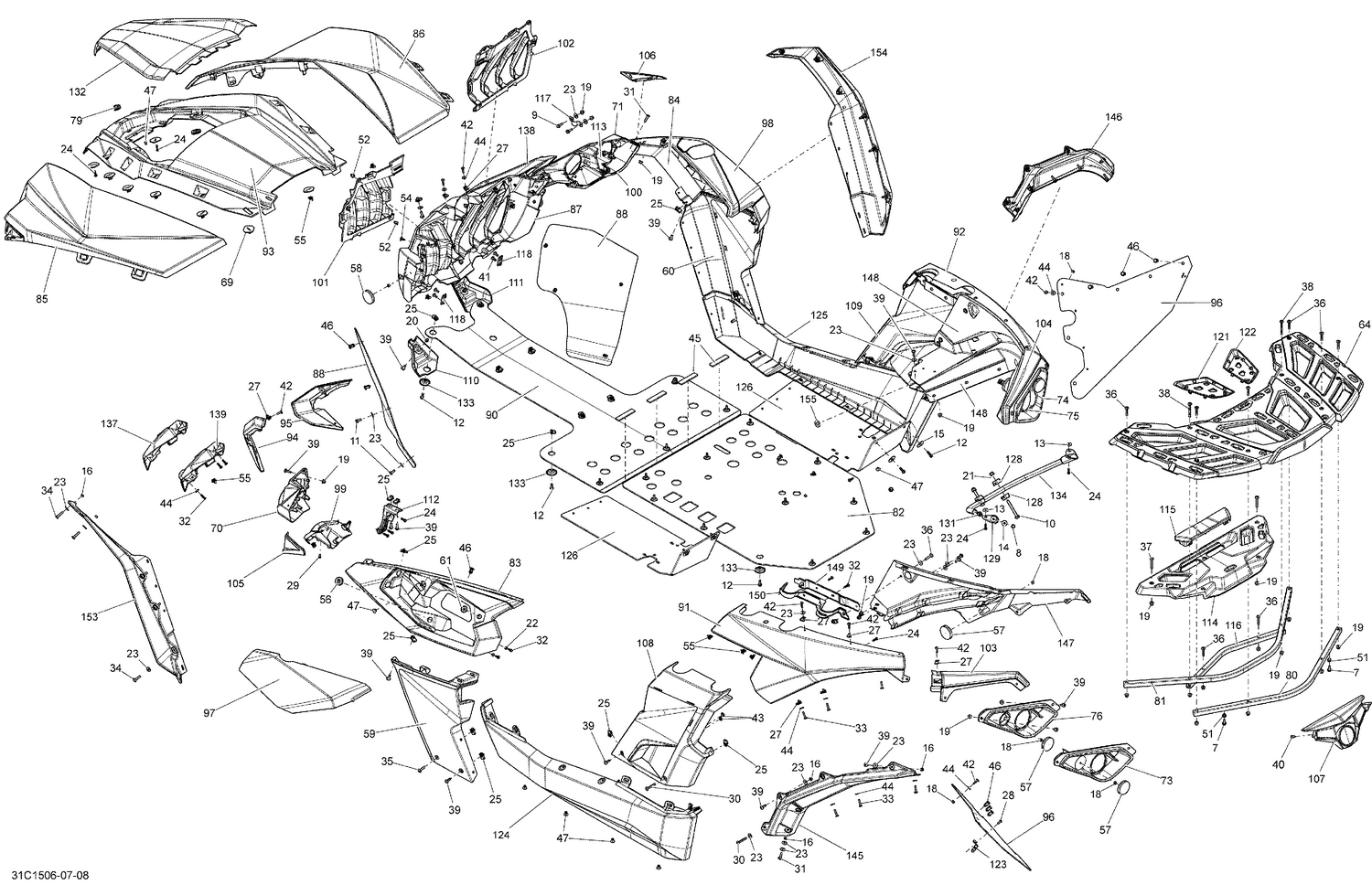

09- Body And Accessories _31C1508
Parts (98)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 8 | 207562544 | Hex. Flange Screw M6 X 25 |
| 9 | 207662054 | Hex. Flange Screw M6 X 20 |
| 10 | 207687044 | Hex. Flange Screw M8 X 70 |
| 11 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 12 | 210262050 | Hexagonal Head Screw |
| 13 | 224060201 | Flat Washer |
| 14 | 224061201 | Flat Washer |
| 15 | 224081301 | Flat Washer |
| 16 | 232561434 | Elastic Stop Nut M6 |
| 18 | 233251494 | Elastic Flange Nut M5 |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 233261494 | Hex. Flange Elastic Nut M6 |
| 21 | 233281414 | Hex. Flange Elastic Nut M8 |
| 22 | 234051410 | Flat Washer M5 |
| 23 | 234062670 | Stainless Steel Flat Washer |
| 24 | 241152060 | Hex. Flange Screw K50 X 20 |
| 25 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 27 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 29 | 250000202 | Self Tapping Screw #8 X 5/8 |
| 30 | 250000215 | Torx Screw M6 X 45 |
| 31 | 250000284 | Torx Screw M6 x 25 |
| 32 | 250000297 | Truss Head Torx Screw K50 X 20 |
| 33 | 250000762 | Torx Screw M5 X 25 This part replaces 250000300. |
| 34 | 250000842 | Stainless, Torx Screw M6 X 30 This part replaces 250000371. |
| 35 | 250000843 | Torx Truss Screw M6 X 30 This part replaces 250000398. |
| 36 | 250000646 | Black, Torx Screw M6 X 35 |
| 37 | 250000647 | Torx Screw M6 X 45 |
| 38 | 250000648 | Torx Screw M6 X 60 |
| 39 | 250000722 | Torx Screw M6 X 20 |
| 40 | 250000720 | Torx Screw K50 X 16 |
| 41 | 250000721 | Torx Truss Screw M6 X 16 |
| 42 | 250000724 | Torx Screw M5 X 20 |
| 43 | 250100129 | PUSH NUT - Call your local BRP dealership |
| 44 | 250200025 | Washer M5 |
| 45 | 291001932 | Pad |
| 46 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 47 | 293150104 | Pop Rivet 3/16" |
| 51 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 52 | 293830005 | Rubber Bumper |
| 54 | 414644300 | Black, Dart |
| 55 | 517302785 | Edge Clip |
| 56 | 517303756 | Grommet |
| 57 | 705011221 | Red Reflector This part replaces 705002408. |
| 58 | 705011222 | Amber Reflector This part replaces 705002409. |
| 61 | 705003264 | Grommet |
| 64 | 715002367 | REAR RACK KIT - Call your local BRP dealership |
| 69 | 705003841 | Support Plate |
| 70 | 705004508 | LH Front Facia |
| 71 | 705004509 | RH Front Facia |
| 73 | 705004731 | LH Rear Facia |
| 74 | 705004732 | RH Rear Facia |
| 79 | 705005156 | Oval Washer |
| 80 | 705016640 | Sectional Bent Tube This part replaces 705005469. |
| 81 | 705016092 | Bent Sectional Tube This part replaces 705005470. |
| 82 | 705005480 | Rear Skid Plate |
| 87 | 705005784 | Front Radiator Grille |
| 88 | 705007827 | INNER FENDER - Call your local BRP dealership |
| 90 | 705005798 | Front Skid Plate |
| 93 | 705005821 | Fixe Center Hood |
| 96 | 705007828 | Deflector |
| 101 | 705005983 | LH Rear Radiator Grille |
| 102 | 705005984 | RH Rear Radiator Grille |
| 105 | 705005992 | LH Front Facia Trim |
| 106 | 705005993 | RH Front Facia Trim |
| 107 | 705005994 | LOGO Support |
| 110 | 705006038 | LH BUMPER SKID CAP - Call your local BRP dealership |
| 111 | 705006039 | RH BUMPER SKID CAP - Call your local BRP dealership |
| 112 | 705006078 | LH Front Facia Support |
| 113 | 705006079 | RH Front Facia Support |
| 114 | 705006128 | Bagage Central Rack |
| 115 | 705006132 | Central Bagage Rack Cap |
| 116 | 705006279 | Bagage Rack Tube |
| 117 | 705006623 | Clamp |
| 118 | 705006635 | Radiator Grille Bracket |
| 121 | 705006713 | LH Bagage Rack Cover |
| 122 | 705006714 | RH BAGAGE RACK COVER - Call your local BRP dealership |
| 124 | 705006991 | LH Lateral Middle Panel |
| 125 | 705006992 | RH Lateral Middle Panel |
| 126 | 705007038 | RH Lateral Skid Plate |
| 128 | 705007044 | Rear Support Facia Clip |
| 129 | 705007045 | LH Rear Facia Support |
| 129 | 705007046 | RH Rear Facia Support |
| 131 | 705007047 | TUBE CONNECTOR - Call your local BRP dealership |
| 132 | 705007060 | Black Removable Hood |
| 133 | 705007171 | Cup |
| 134 | 705007299 | Body Tube |
| 137 | 705007497 | LH Bumper Grille |
| 138 | 705007498 | RH Bumper Grille |
| 145 | XXX | Not Available As Spare Parts |
| 146 | XXX | Not Available As Spare Parts |
| 147 | 705009548 | LH Inner Fender This part replaces 705007910. |
| 148 | 705009549 | RH Inner Fender This part replaces 705007911. |
| 149 | 705007917 | Support Plate |
| 150 | 705007918 | LH REAR FENDER SUPPORT - Call your local BRP dealership |
| 150 | 705007919 | RH REAR FENDER SUPPORT - Call your local BRP dealership |
| 153 | XXX | Not Available As Spare Parts |
| 154 | XXX | Not Available As Spare Parts |
