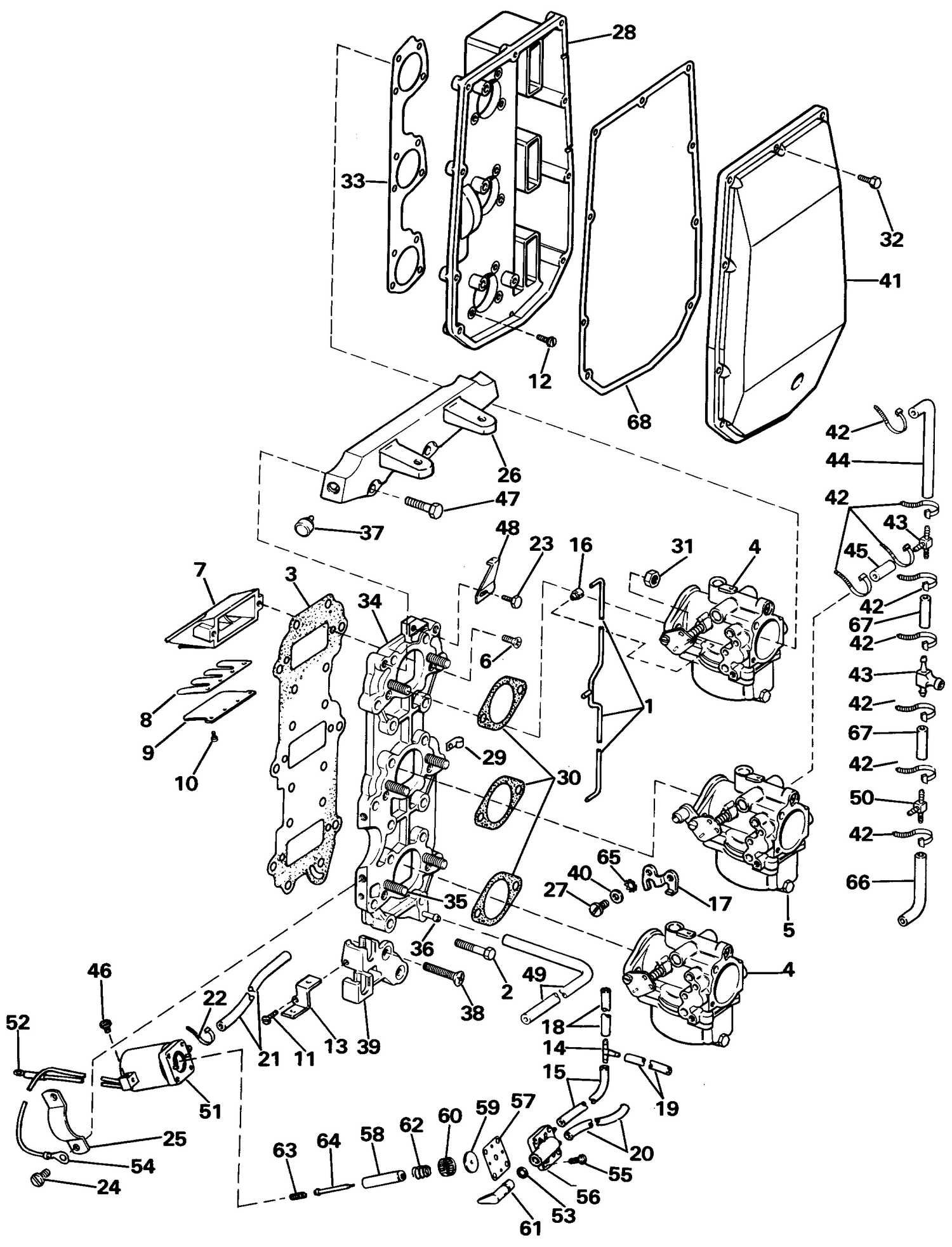

| Ref | Part Number | Description |
|---|
| 1 |
0432271 |
LINK & PIN, Middle arm This part replaces 0394733. |
| 2 |
0554306 |
SCREW, Cyl. to crankcase |
| 3 |
0326926 |
GASKET, Plat to manifold |
| 4 |
CARBURETOR |
ASSEMBLY, Upper and lower |
| 5 |
CARBURETOR |
ASSEMBLY, Middle |
| 6 |
0316116 |
SCREW |
| 7 |
0389731 |
LEAF PLATE ASSEMBLY This part replaces 0389553. |
| 11 |
0310626 |
SCREW, Retainer |
| 12 |
0327794 |
SCREW, Base to carburetor |
| 13 |
0320180 |
RETAINER, Trunnion |
| 14 |
0325569 |
T, amorçage |
| 15 |
HOSE, |
Primer to tee 57mm (2-1/4") |
| 16 |
0313329 |
LOCKWASHER, Carburetor link |
| 16 |
0318165 |
DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 17 |
0321071 |
LEVER, Throttle adjustment |
| 17 |
0329418 |
LEVER, Synchronization adj. |
| 18 |
HOSE, |
Tee to middle carb 127mm (5") |
| 19 |
0330200 |
HOSE, Primer to lower carb 25mm (1") |
| 20 |
HOSE, |
Primer to lower carb 305mm (12") |
| 21 |
HOSE, |
Tee to primer 114mm (4-1/2") |
| 24 |
0319292 |
SCREW, Clamp |
| 25 |
0330153 |
CLAMP, Water valve |
| 26 |
0330509 |
MOUNTING BRACKET This part replaces 0329341. |
| 28 |
0333009 |
BASE ASSEMBLY This part replaces 0329243. |
| 29 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 30 |
0325092 |
GASKET |
| 31 |
0316355 |
BUT, Carburetor mounting |
| 33 |
0333008 |
GASKET, Air silencer This part replaces 0321793. |
| 34 |
0389395 |
MANIFOLD, Intake |
| 37 |
0314021 |
BUMBER, Exhaust manifold |
| 38 |
0324315 |
SCREW, Anchor block |
| 39 |
0324316 |
ANCHOLR BLOCK, Trunnion |
| 41 |
0388264 |
COVER, Air silencer |
| 42 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 44 |
HOSE, |
Tee to carburetor, upper, 127mm (5") |
| 45 |
HOSE, |
Tee to carburetor, middle, 76mm (3") |
| 46 |
0329182 |
VIS, borne |
| 47 |
0303398 |
VIS, support |
| 48 |
0332682 |
TIMING POINTER This part replaces 0330127. |
| 49 |
HOSE, |
Air silencer to manifold 121mm (4-3/4") |
| 50 |
0326031 |
TEE, Carburetor hose |
| 51 |
5007356 |
Kit Ay This part replaces 0582865. |
| 56 |
0511807 |
COVER&GASKET AY |
| 57 |
0333448 |
GASKET This part replaces 0511808. |
| 59 |
0333448 |
GASKET This part replaces 0511810. |
| 66 |
HOSE, |
Tee to carburetor, lower, 41mm (1-5/8") |
| 67 |
HOSE, |
Tee to tee 25mm (1") |
