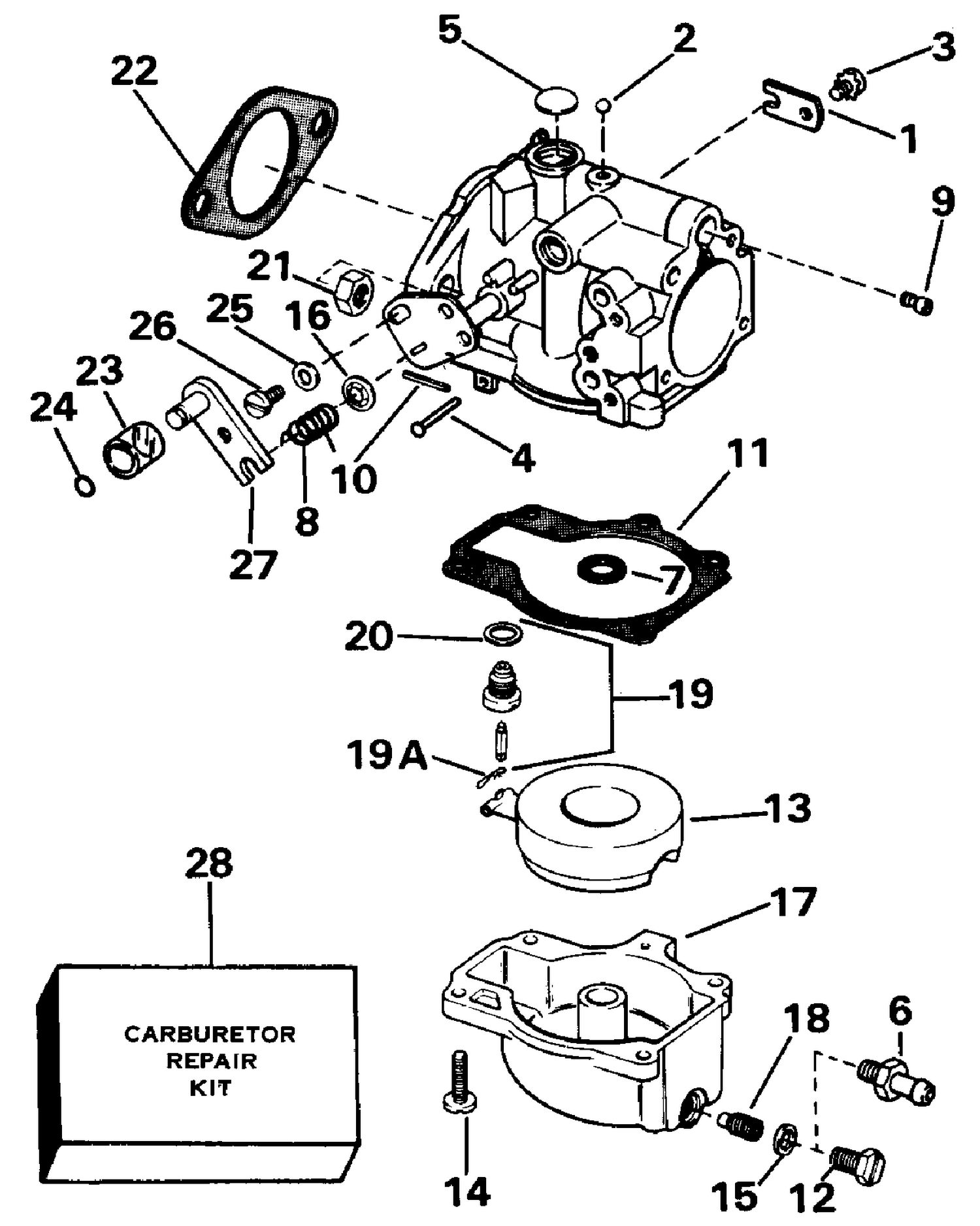

CARBURETOR - ALL 45 MODELS
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0325828 | ORIFICE #43, 250 |
| 18 | 0328525 | ORIFICE PLUG |
| 19 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 21 | 0316355 | BUT, Carburetor mounting |
| 22 | 0325092 | GASKET |
| 23 | 0397499 | ROLLER & SLEEVE ASSY. |
| 24 | 0308776 | O-RING |
| 27 | 0397036 | LEVER & PIN |
| 0397611 | 0432150 | CARB ASSY., Upper This part replaces 0397611. |
| 0398075 | 0398075 | CARB ASSY., Lower |
| 0431878 | 0431878 | CARB ASSY., Lower |
| 0431879 | 0431879 | CARB ASSY., Lower |
