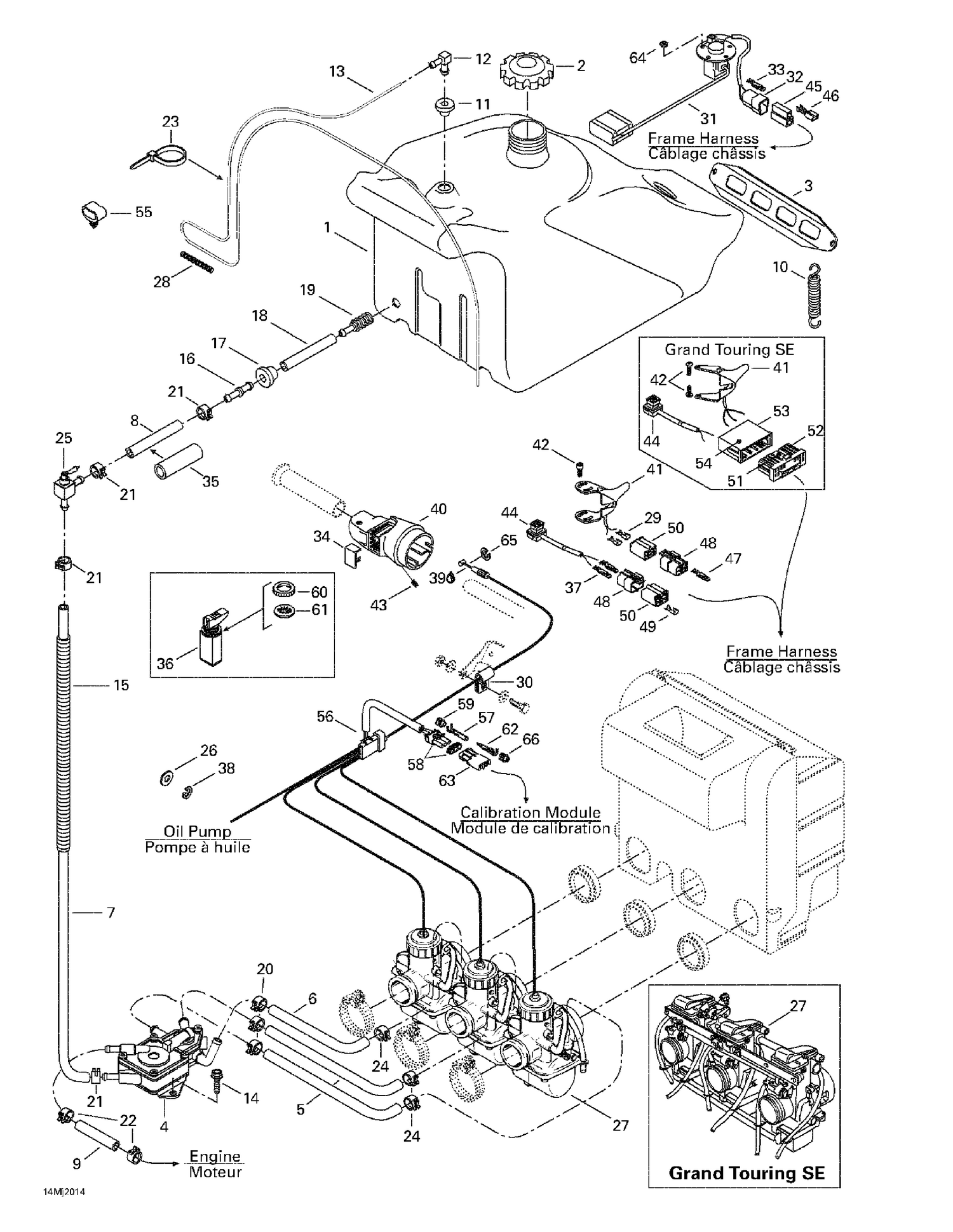

| Ref | Part Number | Description |
|---|
| 1 |
513032926 |
Fuel Tank |
| 2 |
513033722 |
Fuel Tank Cap 91 Octane This part replaces 572073900. |
| 3 |
517249200 |
Fuel Tank Bracket |
| 4 |
513032929 |
FUEL PUMP - Call your local BRP dealership |
| 7 |
513032949 |
FORMED HOSE - Call your local BRP dealership |
| 8 |
513032965 |
HOSE - Call your local BRP dealership |
| 9 |
219704549 |
Hose This part replaces 219704439. |
| 10 |
415107100 |
Spring This part replaces 414893700. |
| 11 |
513032908 |
Grommet |
| 12 |
414814100 |
Male Connector |
| 13 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 14 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 15 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 16 |
414872700 |
Male Connector |
| 17 |
707800347 |
Grommet This part replaces 570273900. |
| 18 |
415097800 |
POLYURETHANE HOSE 7.6MM - Call your local BRP dealership |
| 19 |
414872100 |
Fuel Filter Strainer |
| 20 |
414420700 |
Spring Clamp |
| 21 |
414655700 |
Spring Clamp |
| 22 |
414415200 |
Spring Clamp |
| 23 |
414115200 |
Tie-Rap 180 mm |
| 25 |
415112200 |
Shut-Off Valve |
| 26 |
234081100 |
Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 28 |
513032961 |
Spring |
| 29 |
515175253 |
FEMALE TERMINAL - Call your local BRP dealership |
| 30 |
414176000 |
Open Clamp |
| 32 |
409204500 |
MALE HOUSING - Call your local BRP dealership |
| 33 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
| 34 |
572100901 |
Switch Cover |
| 35 |
513032941 |
Hose (Rubber) |
| 37 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 38 |
414753500 |
Circlip |
| 39 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 42 |
732601143 |
Flange Screw |
| 43 |
414440800 |
Socket Set Screw M8 X 10 |
| 45 |
409204600 |
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 46 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 47 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
| 48 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| 49 |
561503200 |
Female Terminal PACKARD |
| 50 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| 51 |
Not |
Available As Spare Part - Female Terminal |
| 52 |
Not |
Available As Spare Part - Female Terminal Housing (18 Circuits) |
| 53 |
Not |
Available As Spare Part - Male Terminal Housing (18 Circuits) |
| 54 |
515175232 |
Male Terminal |
| 55 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 57 |
278000223 |
Female Terminal |
| 58 |
278000273 |
Male Housing, 3 Circuits |
| 59 |
278000218 |
Wire Seal |
| 60 |
512059364 |
NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 61 |
394103300 |
Lock Washer, Interior Teeth |
| 62 |
278000222 |
Male Terminal |
| 63 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 64 |
232551414 |
Elastic Stop Nut M5 |
| 65 |
414274500 |
Circlip |
