Home / BRP / EVINRUDE / 1998 / 55 / 01- Crankcase

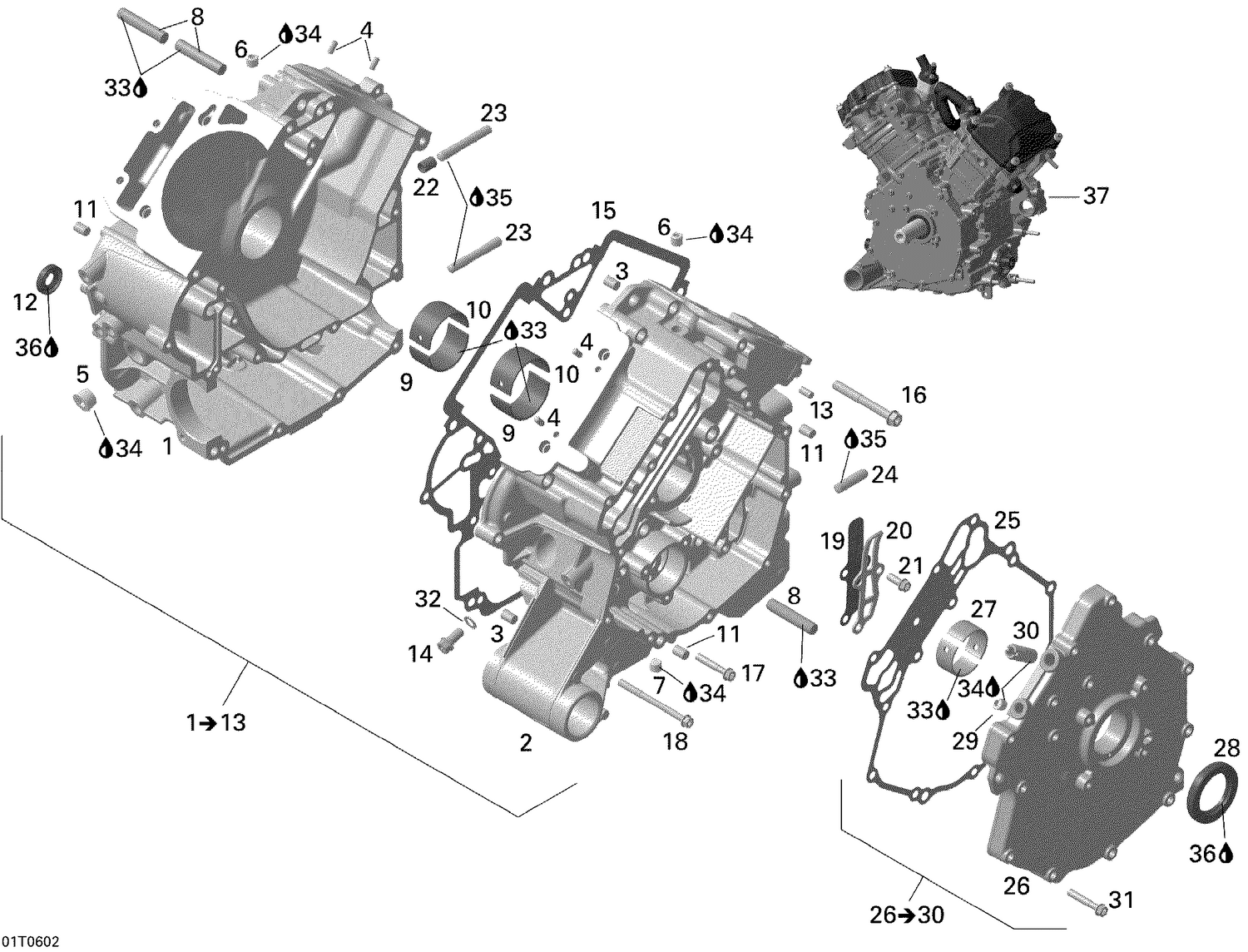

01- Crankcase

01- Crankcase

Parts (37)

RefPart NumberDescription
1 Not Available As Spare Part - Crankcase, MAG Side
2 Not Available As Spare Part - Crankcase, PTO Side
3 420632010 Center Pin 8 X 12
4 420929650 Drive Pin 5 X 10
5 420240170 Plug Screw M18 X 1.5 - Call your local BRP dealership
6 420641323 Plug Screw M10 X 1
7 420840651 PLUG SCREW M12 X 1.5 - Call your local BRP dealership
8 420229302 Location Pin 10 M6x50 This part replaces 420229301.
9 420233960 Plain Bearing
10 420233965 Plain Bearing
11 420632010 Center Pin 8 X 12
12 420650315 Oil Seal This part replaces 420650310.
13 420932780 Needle Pin
14 420440852 Torx Flange Screw M8 X 16
15 420651220 Gasket
16 420440402 Torx Flange Screw M8 X 65
17 420440274 Torx Flange Screw M6 X 35 This part replaces 420440277.
18 420440657 Torx Flange Screw M6 X 75 This part replaces 420440652.
19 420224721 Reed Valve This part replaces 420224720.
20 420224725 Reed Valve Stop
21 420641048 Torx Flange Screw M6 X 16 This part replaces 420440167.
22 420929670 Dowel Pin 10 X 13 This part replaces 420929671.
23 420240811 STUD M8 X 68 - Call your local BRP dealership
24 420840716 STUD M8 X 21 - Call your local BRP dealership
25 420651211 Gasket This part replaces 420651210.
26 Not Available As Spare Part - PTO Cover
27 420233995 Bearing Sleeve
28 420631933 Oil Seal This part replaces 420631932.
29 420641323 Plug Screw M10 X 1
30 420256332 Hose Nipple This part replaces 420256331.
31 420440274 Torx Flange Screw M6 X 35 This part replaces 420440277.
32 420950141 Sealing Ring
33 Not Available As Spare Part - Engine Oil 4 Strokes, 5w40, 12 X 1 Liter
34 293800060 Loctite 243, 10 ml
35 219703000 Sealant Loctite 648 This part replaces 413711400.
36 293550030 Grease, Super Lube
37 421000672 REBUILD-BLOCK-LONG 810 06 TO 08 - Call your local BRP dealership This part replaces 420081030.
