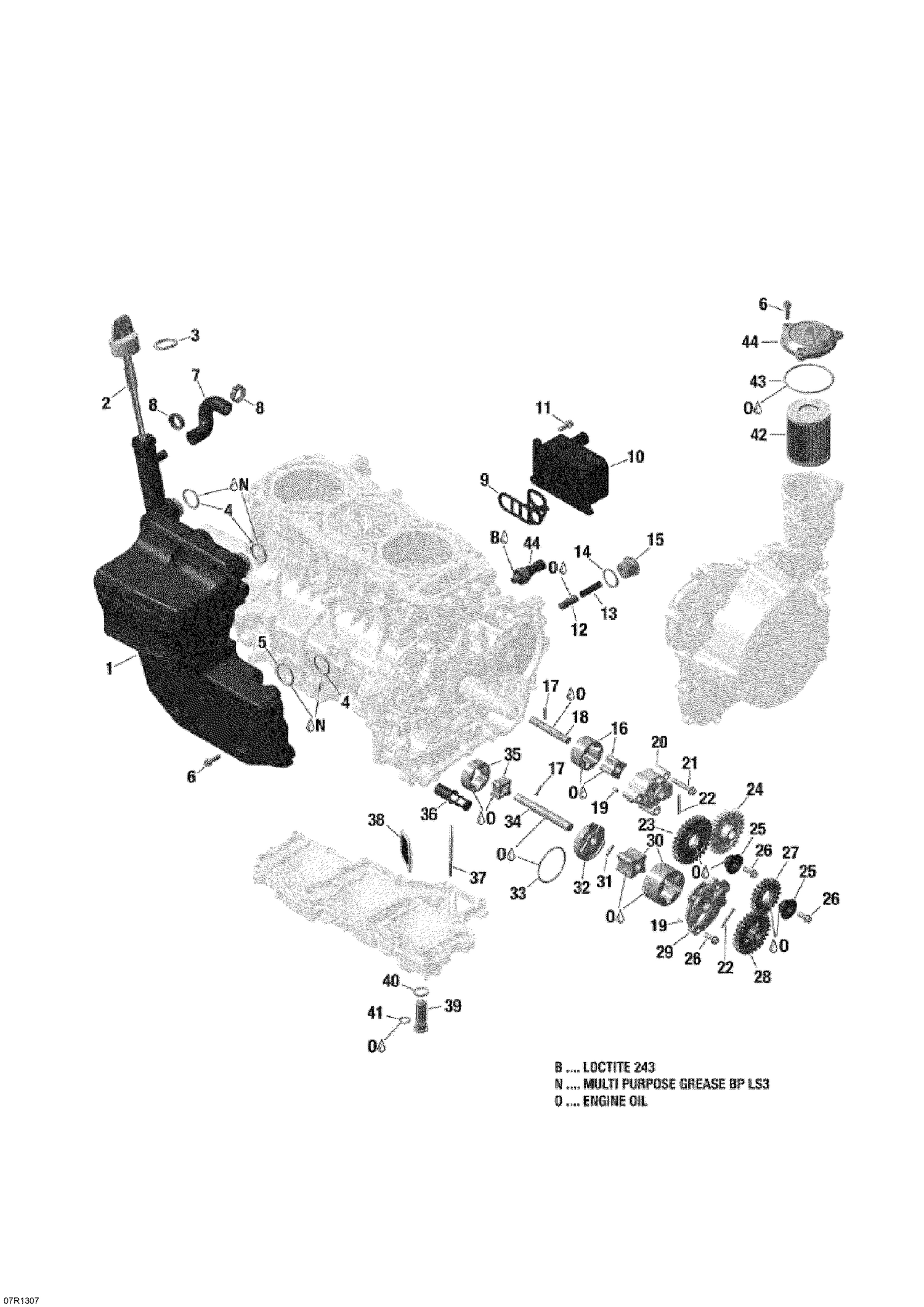

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| N |
413707000 |
Dow Corning 111, 150 g |
| 3 |
420431790 |
Gasket Ring |
| 4 |
420931634 |
O-Ring This part replaces 420931632. |
| 5 |
420430068 |
O-Ring This part replaces 420430067. |
| 6 |
420440207 |
Flanged Torx Screw M6X20-SW8/T30 |
| 7 |
420460021 |
Air Vent Line |
| 8 |
420951273 |
Clamp |
| 9 |
420431283 |
Gasket This part replaces 420431282. |
| 10 |
420891914 |
Oil Radiator This part replaces 420891912. |
| 11 |
420440234 |
Flanged Torx Screw M6 X 25 |
| 12 |
420256510 |
Pressure Regulating Piston |
| 13 |
420239445 |
Spring DM6,95 D1,15 L46 |
| 14 |
420650465 |
Gasket Ring |
| 15 |
420640278 |
SCREW PLUG M22 X 1.5 - Call your local BRP dealership |
| 16 |
420256681 |
Oil Pump Rotor, Suction |
| 17 |
420232731 |
Needle Pin This part replaces 420232730. |
| 18 |
420837911 |
OIL PUMP SHAFT - Call your local BRP dealership |
| 19 |
420929075 |
Needle Pin ISO 8734-4X8-A-ST |
| 20 |
420611861 |
Oil Pump Housing |
| 21 |
420641258 |
Flanged Torx Screw M6 X 35 |
| 22 |
420232431 |
Needle Pin This part replaces 420232430. |
| 23 |
420835055 |
Idle Gear, 31 Teeth |
| 24 |
420834882 |
Oil Pump Gear, 29 Teeth |
| 25 |
420947396 |
Graduated Spacer This part replaces 420947390. |
| 26 |
420440162 |
Flanged Torx Screw M6 X 16 |
| 27 |
420835051 |
Idle Gear, 22 Teeth |
| 28 |
420834887 |
Oil Pump Gear, 28 Teeth This part replaces 420834885. |
| 29 |
420611980 |
Oil Pump Cover |
| 30 |
420256831 |
Oil Pump Rotor This part replaces 420256830. |
| 31 |
420632221 |
Needle Pin This part replaces 420632220. |
| 32 |
420611950 |
Oil Pump Cover |
| 33 |
420631830 |
O-Ring DIN 3771-46X2,5-N, 72 NBR 872 |
| 34 |
420837915 |
OIL PUMP SHAFT - Call your local BRP dealership |
| 35 |
420256671 |
Rotor Set This part replaces 420256670. |
| 36 |
420856658 |
OIL SIEVE - Call your local BRP dealership |
| 37 |
420856650 |
Oil Sieve |
| 38 |
420856655 |
Oil Sieve |
| 39 |
420941841 |
Screw Plug M14 X 1.5 |
| 40 |
420230500 |
Gasket Ring |
| 41 |
420430115 |
O-Ring |
| 42 |
420956123 |
Oil Filter |
| 43 |
420230923 |
O-Ring This part replaces 420650500. |
| 44 |
420612135 |
Oil Filter Cover This part replaces 420210418. |
| 45 |
420256915 |
Oil Pressure Switch |
