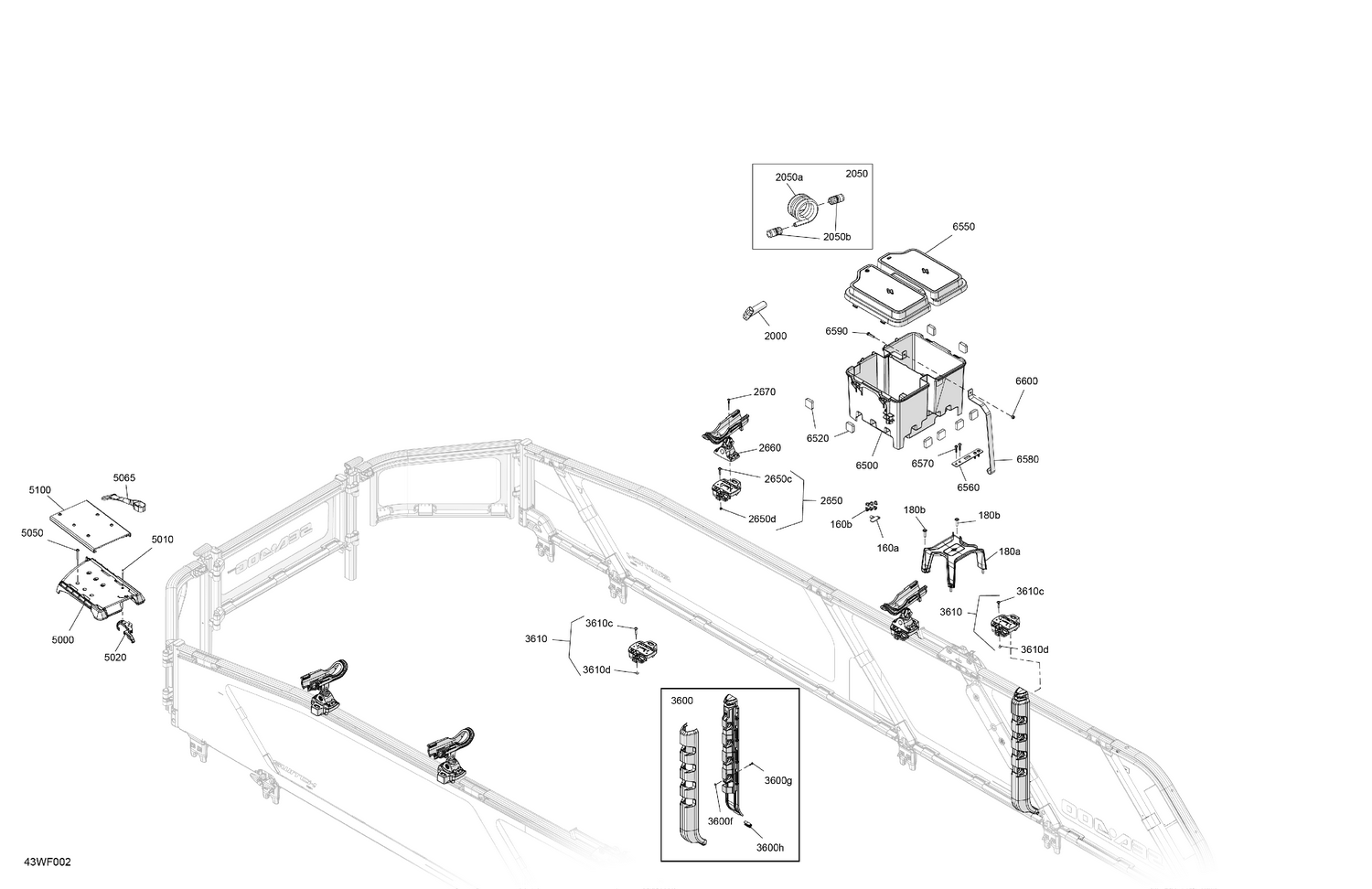

09- MISCELLANEOUS - Utility
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 160a | 269801011 | Key |
| 160b | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 180a | 278004681 | Retaining Plate |
| 180b | 250000399 | Hexagonal Cap Screw M6 X35 |
| 2000 | 293710209 | Pistol Nozzle |
| 2050a | 269801048 | Filler Neck Hose |
| 2050b | 293710217 | Garden Hose Adapter |
| 2650c | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 2650d | 232561200 | Brass Elastic Stop Nut M6 |
| 2660 | 295101308 | Rod Support Kit |
| 2670 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 3600f | 234042600 | Flat Washer 4 mm, Stainless |
| 3600g | 250000287 | Flange Torx Screw K40 X 16 |
| 3600h | 281300597 | Balustrade Fastener |
| 3610c | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 3610d | 232561200 | Brass Elastic Stop Nut M6 |
| 5000 | 269801873 | Fixed Electric Motor Support |
| 5010 | 250400100 | Spring Pin 3/16 X 3/4 |
| 5020 | 269801846 | Overmolded Latch Lever |
| 5050 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 5065 | 269801849 | Electric Motor Leash Kit |
| 5100 | 269801352 | Mobile Electric Motor Support |
| 6500 | 269801356 | Battery Support |
| 6520 | 269801820 | Bonded Foam Support |
| 6550 | 269801357 | Battery Cover |
| 6560 | 269801729 | Strap Anchorage |
| 6570 | 250000879 | Plastite Torx Screw M6.81X30 |
| 6580 | 269801505 | Tie Down Strap |
| 6590 | 207083560 | Hex. Screw M8 X 35 |
