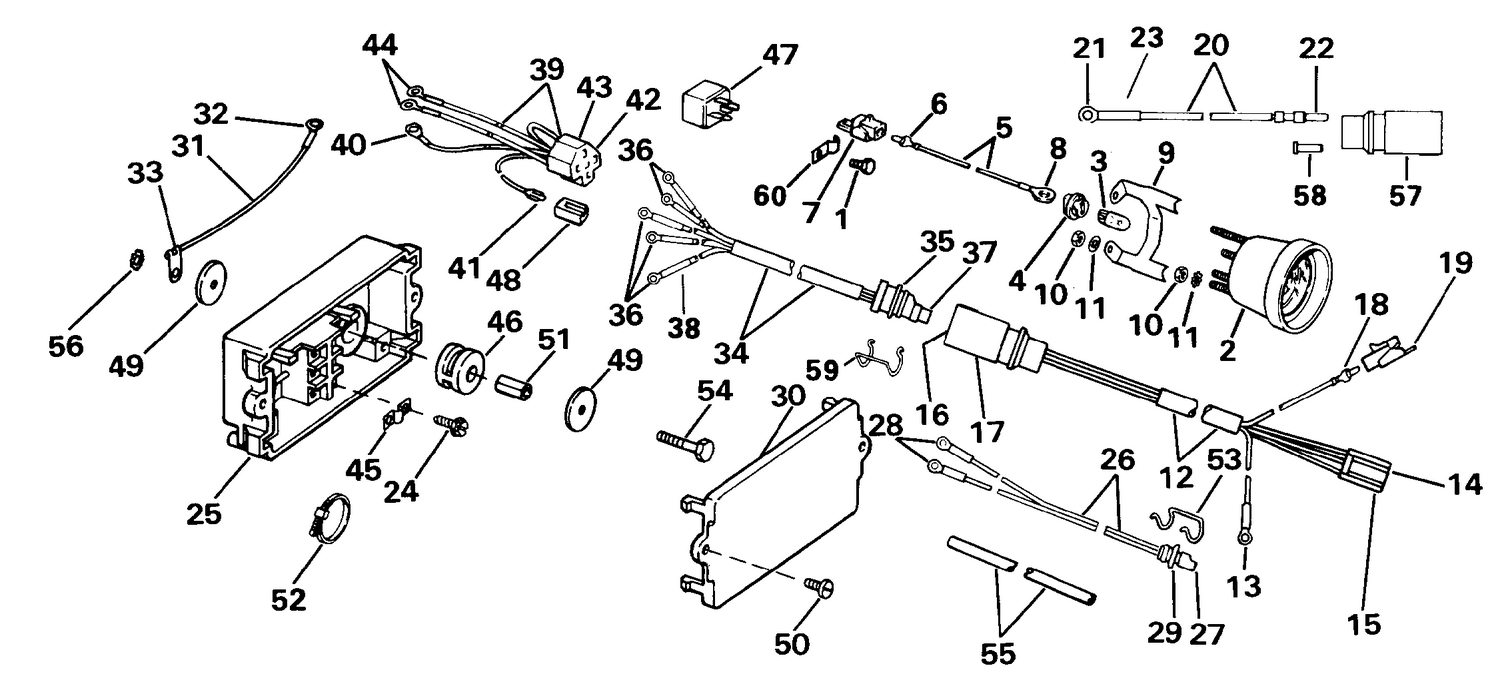

| Ref | Part Number | Description |
|---|
| 2 |
0174679 |
KIT JAUGE CORRECTION D'ASSIETTE/RELEVAGE |
| 5 |
0583255 |
LEAD ASSEMBLY |
| 9 |
0125409 |
BRACKET |
| 18 |
0512904 |
BULLET TERMINAL |
| 20 |
0582093 |
LEAD ASSY This part replaces 0582092. |
| 24 |
0329182 |
VIS, borne |
| 25 |
0512776 |
BASE Junction box |
| 26 |
0583105 |
CABLE ASSY., Sending unit |
| 30 |
0583707 |
COVER ASSY |
| 31 |
0582671 |
LEAD ASSY. Junction box ground |
| 34 |
0583158 |
CONNECTOR |
| 39 |
0582986 |
CONN ASSY., Blue leads (trim up) |
| 39 |
0582987 |
CONN ASSY., Green leads (trim down) |
| 45 |
0315004 |
FIL DE LIAISON, bornier |
| 46 |
0315057 |
MOUNT, Bracket |
| 50 |
0329182 |
VIS, borne |
| 51 |
0331984 |
CLAMP, Hose |
| 52 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 53 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 54 |
0303398 |
VIS, support |
| 55 |
0512790 |
SLEEVE, Motor & sending leads |
| 59 |
0512743 |
DISPOSITIF DE RETENUE |
| 0583107 |
0583107 |
JUNCTION BOX & COVER ASSY |
