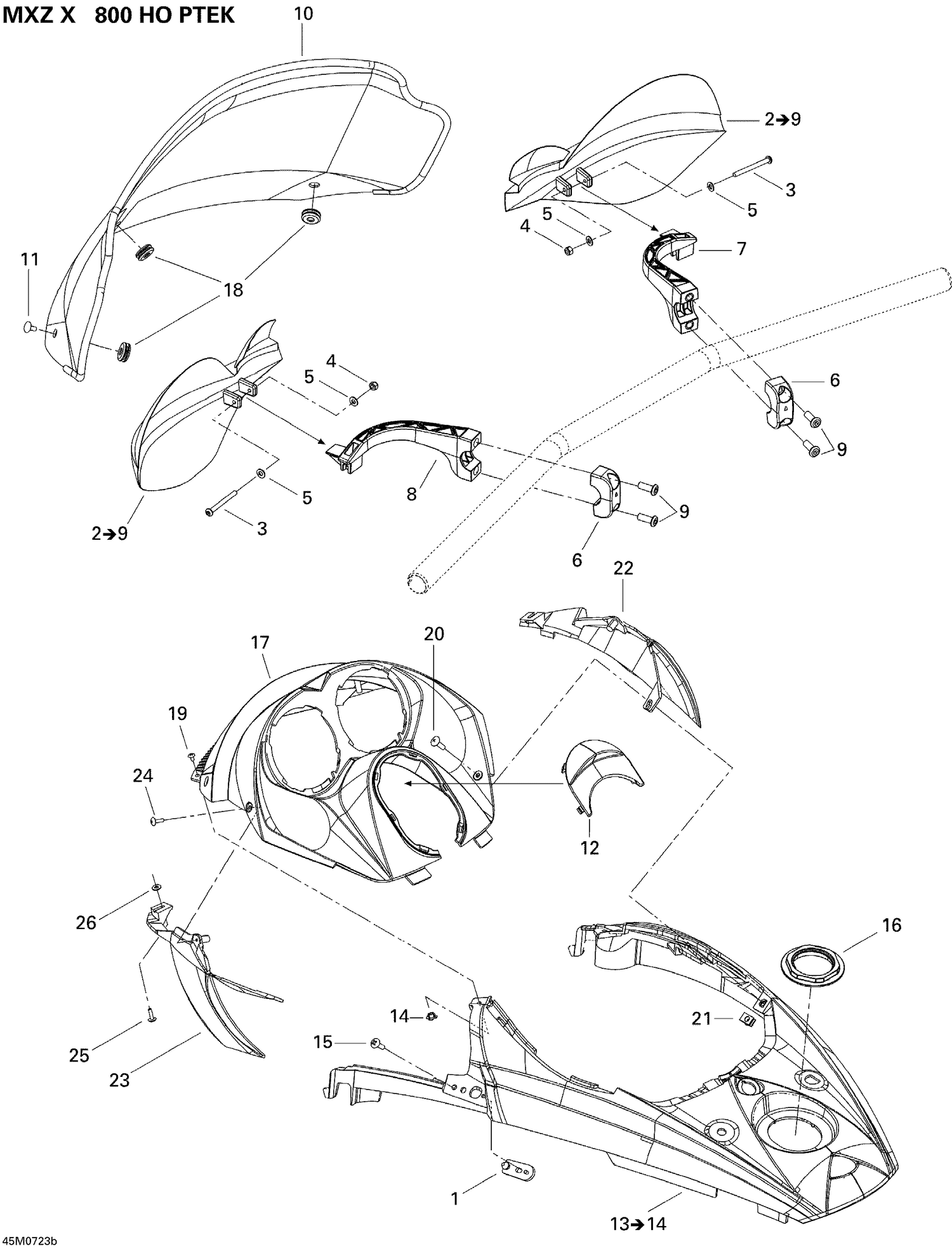

| Ref | Part Number | Description |
|---|
| 1 |
517302616 |
HOOD LATCH - Call your local BRP dealership |
| 3 |
205444086 |
Socket Head Screw M4 X 40 |
| 4 |
232541484 |
Elastic Stop Nut M4 |
| 5 |
234041480 |
Flat Washer 4 mm |
| 6 |
517303264 |
U-Clamp |
| 7 |
517303590 |
RH DEFLECTOR SUPPORT - Call your local BRP dealership |
| 8 |
517303591 |
LH DEFLECTOR SUPPORT - Call your local BRP dealership |
| 9 |
250000172 |
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 10 |
517303045 |
LOW WINDSHIELD - Call your local BRP dealership |
| 11 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 12 |
517302592 |
CONSOLE CAP - Call your local BRP dealership |
| 14 |
250100030 |
T-NUT, M4 - Call your local BRP dealership |
| 15 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 16 |
517302575 |
CONSOLE NUT - Call your local BRP dealership |
| 17 |
517303538 |
INDICATOR SUPPORT - Call your local BRP dealership |
| 18 |
517307161 |
Grommet This part replaces 517302841. |
| 19 |
250000127 |
Torx Screw M4 X 8 |
| 20 |
250000724 |
Torx Screw M5 X 20 This part replaces 250000130. |
| 21 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 22 |
517302798 |
RH Air Deflector |
| 23 |
517302799 |
LH AIR DEFLECTOR - Call your local BRP dealership |
| 24 |
250000723 |
Phillips Screw K40 X 16 This part replaces 250000084. |
| 25 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
