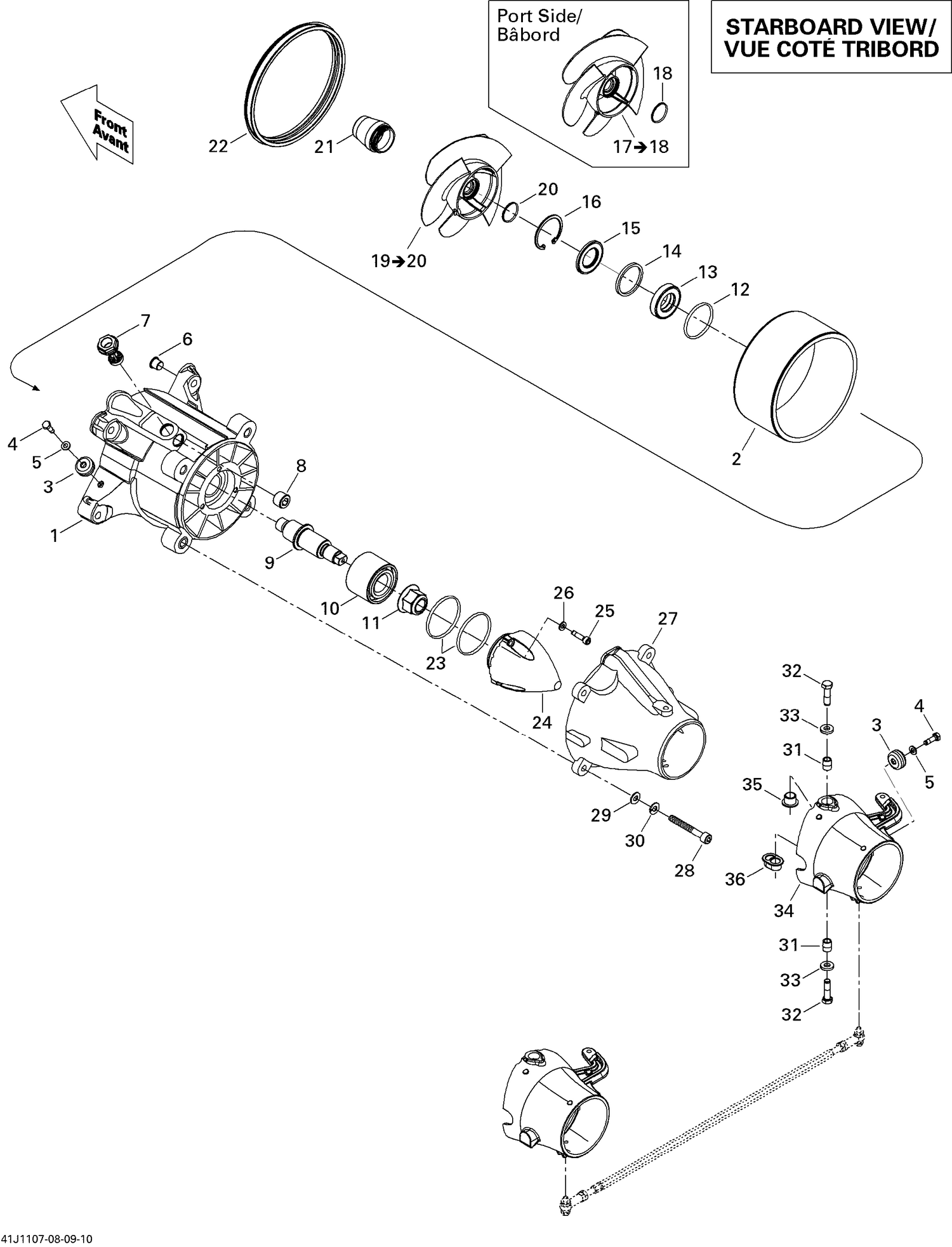

05- Pump
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 271002161 | Housing Impeller Anodized This part replaces 267000417. |
| 2 | 267000419 | Wear Ring |
| 3 | 271001813 | Anode Zinc This part replaces 271001487. |
| 4 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 5 | 234061600 | Stainless Flat Washer M6 |
| 6 | 267000093 | Bushing |
| 7 | 267000282 | Plug |
| 8 | 267000469 | Black, Plastic Plug |
| 9 | 267000388 | Impeller Shaft |
| 10 | 267000900 | Angled Bearing This part replaces 267000030. |
| 11 | 250100104 | Elastic Flange Nut M20 |
| 12 | 293300090 | O-Ring |
| 13 | 271002071 | Seal This part replaces 293200086. |
| 14 | 271001393 | Spacer |
| 15 | 293200089 | Oil Seal |
| 16 | 293370038 | Circlip |
| 21 | 271002225 | Guard This part replaces 267000206. |
| 22 | 293200087 | Neoprene Seal |
| 23 | 293300086 | O-Ring |
| 24 | 267000428 | Impeller Cover |
| 25 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 26 | 234061600 | Stainless Flat Washer M6 |
| 27 | 204160302 | Black, Venturi - Call your local BRP dealership |
| 28 | 250000464 | Socket Head Screw M8 X 100, Scotch Grip |
| 29 | 293050001 | Flat Washer M8.5 x 18 |
| 30 | 234181601 | Lock Washer 8 mm, Stainless |
| 31 | 271001816 | Sleeve This part replaces 271000122. |
| 32 | 211000047 | SCREW-SPECIAL M8 - Call your local BRP dealership |
| 33 | 293050001 | Flat Washer M8.5 x 18 |
| 34 | 271001787 | STEERING NOZZLE, BLACK - Call your local BRP dealership |
| 35 | 293900001 | Venturi Bushing |
