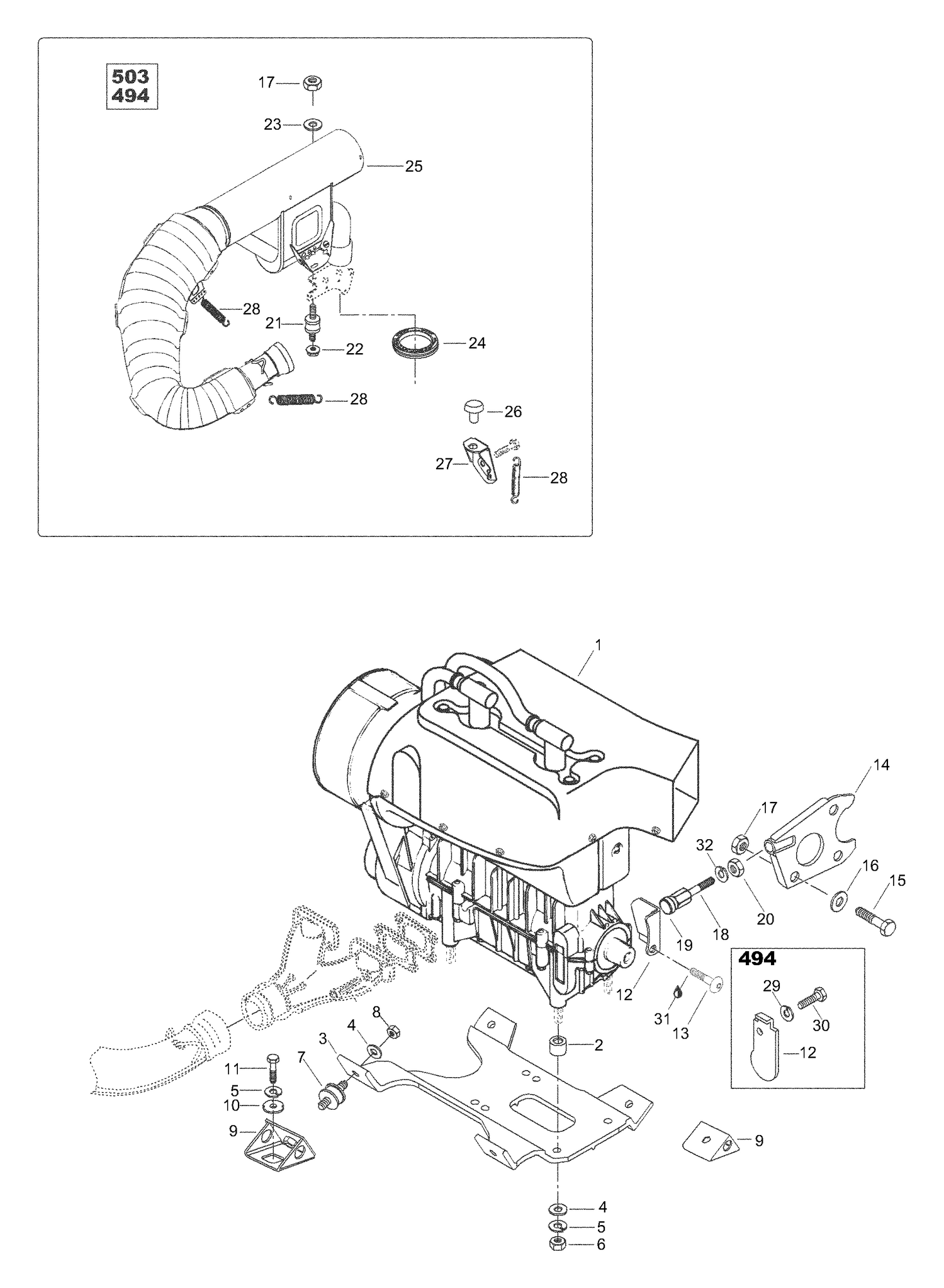

| Ref | Part Number | Description |
|---|
| 1 |
400409412 |
Engine <<494>> |
| 2 |
503128100 |
Spacer |
| 3 |
512054400 |
Engine support |
| 4 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 5 |
20047 |
Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 6 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 7 |
570127700 |
RUBBER MOUNT - Call your local BRP dealership |
| 8 |
33082 |
Nut elastic M10 |
| 9 |
512050900 |
Support |
| 10 |
512056700 |
Lock washer |
| 11 |
40040 |
Screw M10x25 |
| 12 |
512052900 |
Stopper plate |
| 13 |
Not |
Available As Spare Part - Screw M8x20 - DOES NOT APPLY TO THIS MODEL |
| 14 |
512055600 |
Support plate |
| 15 |
40037 |
Screw M8x25 |
| 16 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 17 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 18 |
512058800 |
STOPPER SCREW - Call your local BRP dealership |
| 19 |
512059056 |
Gummi damper |
| 20 |
33218 |
Nut M12 |
| 21 |
514052838 |
Rubber bumper |
| 22 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 23 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 24 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 25 |
514048400 |
Muffler |
| 26 |
514048200 |
Rubber bumper |
| 27 |
514048600 |
Muffler support |
| 28 |
415107100 |
Spring |
| 29 |
20052 |
Spring washer |
| 30 |
40029 |
Screw M6x16 |
| 31 |
Not |
Available As Spare Part - Loctite 271, 10ml - DOES NOT APPLY TO THIS MODEL |
