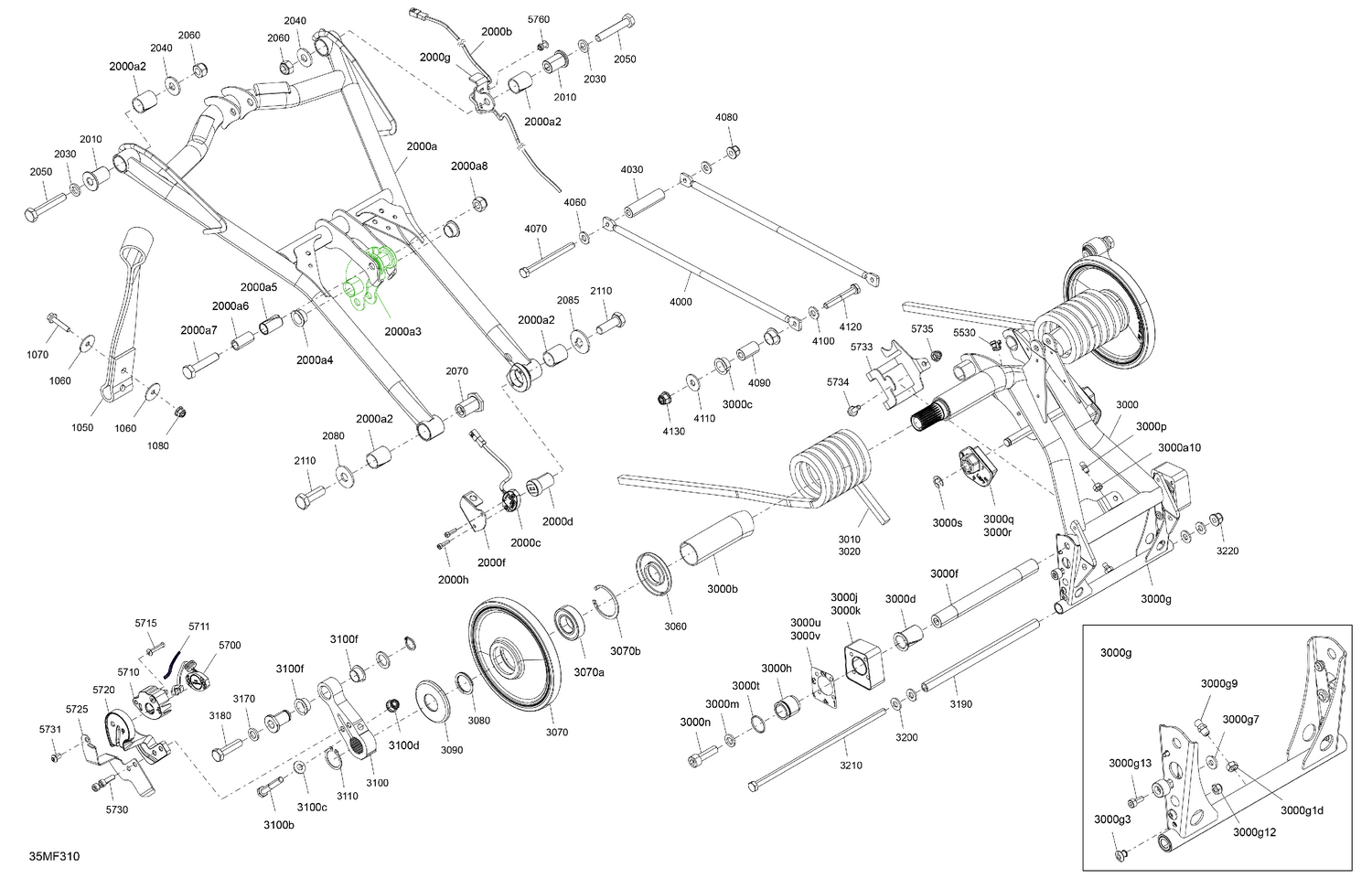

05- Suspension - Rear - Upper Section
Parts (89)
| Ref | Part Number | Description |
|---|---|---|
| 1050 | 503195313 | Stopper Strap |
| 1060 | 503193995 | Washer |
| 1070 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 1080 | 233261466 | Hex. Flange Elastic Nut M6 |
| 2000a2 | 503191556 | Extended Bushing |
| 2000a3 | 503196878 | Rocker |
| 2000a4 | 503191555 | Swivel Bushing |
| 2000a5 | 503193037 | Bushing |
| 2000a6 | 503189282 | Bushing |
| 2000a7 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 2000a8 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 2000b | 515178739 | Rear Suspension Wiring Harness |
| 2000c | 503195951 | Hall Effect Sensor |
| 2000d | 503196864 | Axle Suspension Arm Ass'y |
| 2000f | 503196400 | Protection Sensor |
| 2000g | 503196510 | Retaining Plate |
| 2000h | 205541660 | Socket Screw M4 X 16 (Scotch Grip) |
| 2010 | 503197934 | Axe |
| 2030 | 503191926 | Washer |
| 2040 | 503191926 | Washer |
| 2050 | 207006056 | Hex. Cap Screw M10 X 60 |
| 2060 | 233601466 | Elastic Locking Nut M10 |
| 2070 | 503193716 | Lower Axle |
| 2080 | 250200113 | Flat Washer, 12 mm |
| 2085 | 503196366 | Washer |
| 2110 | 250000537 | Hex. Cap Screw M12 X 35 |
| 3000a10 | 232061404 | Hexagonal Nut M6 |
| 3000b | 503192767 | Bushing |
| 3000c | 503191555 | Swivel Bushing |
| 3000d | 503191640 | Cushion |
| 3000f | 503195743 | Lower Shaft |
| 3000g12 | 232551414 | Elastic Stop Nut M5 |
| 3000g13 | 205041060 | Socket Head Screw M4X 10 |
| 3000g1d | 232061404 | Hexagonal Nut M6 |
| 3000g3 | 390402200 | Pop Rivet 3/16" |
| 3000g7 | 517225900 | Flat Washer |
| 3000g9 | 408200700 | Grease Fitting |
| 3000h | 503195700 | Guide |
| 3000j | 503195701 | LH Cam |
| 3000k | 503195702 | RH Cam |
| 3000m | 503192496 | Washer |
| 3000n | 205503554 | Socket Head Screw M10 X 35 |
| 3000p | 408200700 | Grease Fitting |
| 3000q | 503191565 | LH Cam Adjuster |
| 3000r | 503191566 | RH Cam Adjuster |
| 3000s | 293370013 | E-Circlip |
| 3000t | 503195853 | O-Ring |
| 3000u | 516004900 | LH Block Sticker Decal |
| 3000v | 516004901 | RH Block Sticker Decal |
| 3010 | 503196052 | Black, LH Square Spring |
| 3020 | 503196053 | Black, RH Square Spring |
| 3060 | 503190434 | Labyrinth Seal |
| 3070a | 503193548 | Ball Bearing |
| 3070b | 415129780 | Retaining Ring |
| 3080 | 503189146 | Axle Spring |
| 3090 | 503192592 | Labyrinth Ring |
| 3100b | 207085056 | Hex. Screw M8 |
| 3100c | 503192494 | Washer |
| 3100d | 233281466 | Elastic Flange Nut M8 |
| 3100f | 503191555 | Swivel Bushing |
| 3110 | 293370080 | Retaining Ring |
| 3170 | 250200143 | Flat Washer |
| 3180 | 207204056 | Cap Screw Hex. M10 X 40 |
| 3190 | 503196358 | Pivot Arm Axle |
| 3200 | 503192494 | Washer |
| 3210 | 503192440 | Bolt M8 X 248mm |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503196493 | Link Rod |
| 4030 | 503190643 | Axle Bar (Long) |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503192555 | Axle Bar |
| 4100 | 503192494 | Washer |
| 4110 | 234082410 | Flat Washer 8 mm |
| 4120 | 207085556 | Hex. Screw M8 X 55 |
| 4130 | 233281466 | Elastic Flange Nut M8 |
| 5530 | 293720125 | Grommet |
| 5700 | 503195951 | Hall Effect Sensor |
| 5710 | 503195631 | Rear Sensor Support |
| 5711 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 5715 | 293150093 | Pop Rivet 3/16” |
| 5720 | 503196898 | Lever Sensor Ass'y |
| 5725 | 503196897 | Guard |
| 5730 | 250001239 | Screw Socket Head M6 X 25 |
| 5731 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 5733 | 503196928 | Tank Support Shock Absorber |
| 5734 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 5735 | 233281466 | Elastic Flange Nut M8 |
