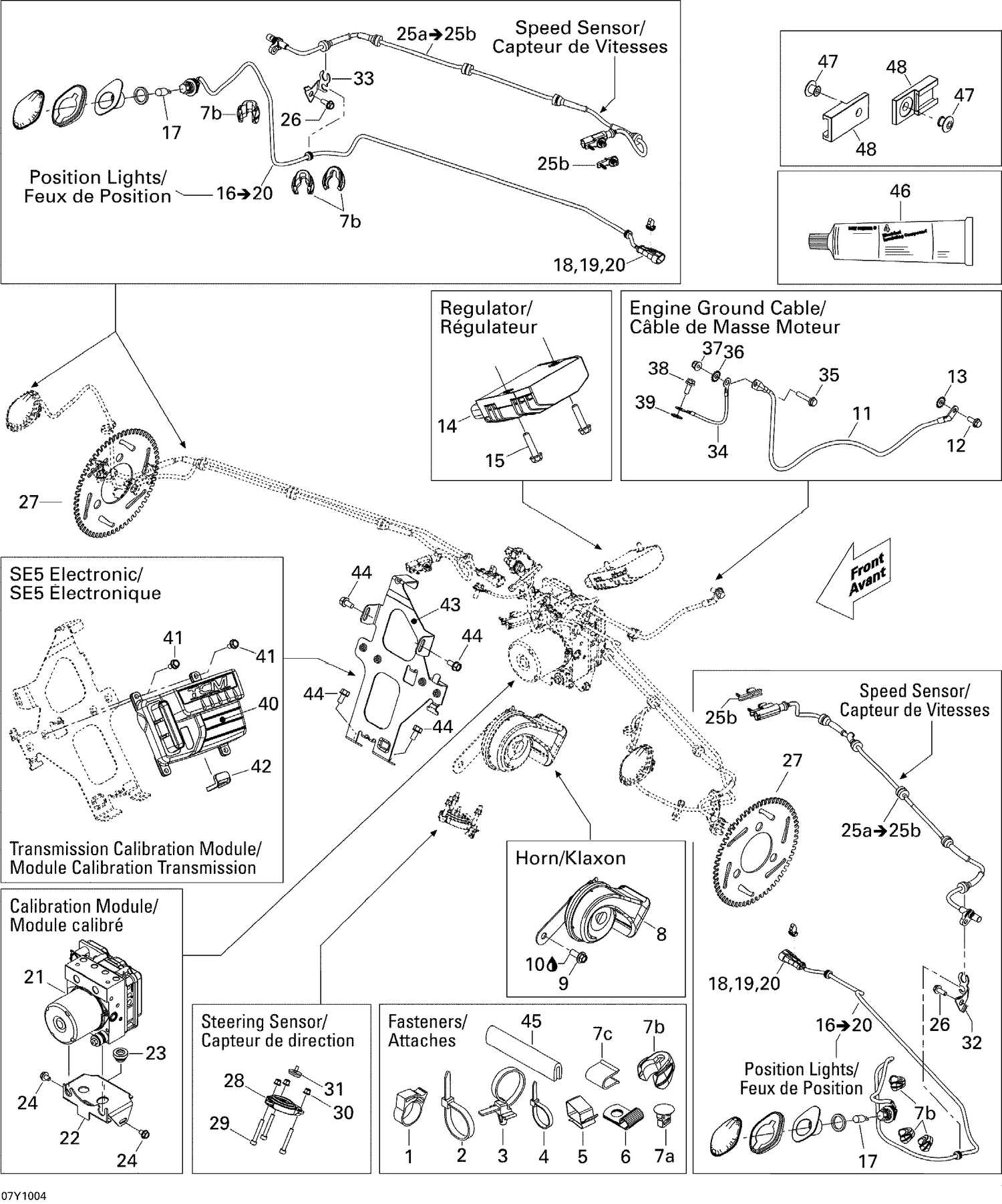

10- Electrical Accessories, Front SE5 Electronic

10- Electrical Accessories, Front SE5 Electronic

Parts (43)

RefPart NumberDescription
1 293650082 Clamp
2 293750008 Tie Wrap 368 mm
3 293750009 Tie-Rap 173 mm
4 414115200 Tie-Rap 180 mm
5 414227300 Clip
6 415052400 Bracket
7a 293750044 Tie Rap Mount
7b 710001452 WIRE BRACKET - Call your local BRP dealership
8 710004229 HORN - Call your local BRP dealership This part replaces 710001777.
9 207682044 Hex. Flange Screw M8 X 20
10 293800060 Loctite 243, 10 ml
11 710000177 ENGINE GROUND CABLE - Call your local BRP dealership
12 207661644 Hex. Flange Screw M6 X 16
13 250200041 Lock Washer Serrated M6
14 219800252 REGULATOR KIT - Call your local BRP dealership
15 210262550 Hex. Flange Forming Screw M6 X 25 This part replaces 210262580.
17 410922994 BULB 5W. - Call your local BRP dealership
18 409209400 Male Terminal Housing, 2 Circuits
19 409012900 Male Terminal
20 278001013 Wire Seal
21 705600626 CALIBRATION MODULE 0265236033 - Call your local BRP dealership
22 705600602 MODULE BRACKET - Call your local BRP dealership
23 710000938 STOPPER - Call your local BRP dealership
24 210261250 Hex. Flange Screw M6 X 12 This part replaces 210261280.
25b 219800059 Speed Sensor Clip
26 210261650 Hex. Flange Screw M6 X 16 This part replaces 210261680.
27 705600436 TONE WHEEL - Call your local BRP dealership
28 709400363 Steering Position Sensor
29 205053588 Socket Head Screw M5 X 35
30 233251434 Flange Elastic Nut M5 This part replaces 233251414.
31 709400362 ENCODER MAGNET - Call your local BRP dealership
32 710002019 LH WIRE SUPPORT - Call your local BRP dealership This part replaces 710001249.
33 710002018 RH WIRE SUPPORT - Call your local BRP dealership This part replaces 710001250.
34 710001165 GROUND HARNESS - Call your local BRP dealership
35 207563034 Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
36 250200041 Lock Washer Serrated M6
37 233261414 Hex. Flange Elastic Nut M6 x 1.0
38 207661644 Hex. Flange Screw M6 X 16
39 250200041 Lock Washer Serrated M6
43 705202002 MODULE SUPPORT - Call your local BRP dealership
44 210261250 Hex. Flange Screw M6 X 12 This part replaces 210261280.
45 219704354 Trim 1000Mm Long
46 219704453 Was 293550004 Dielectric Grease, 150 g
