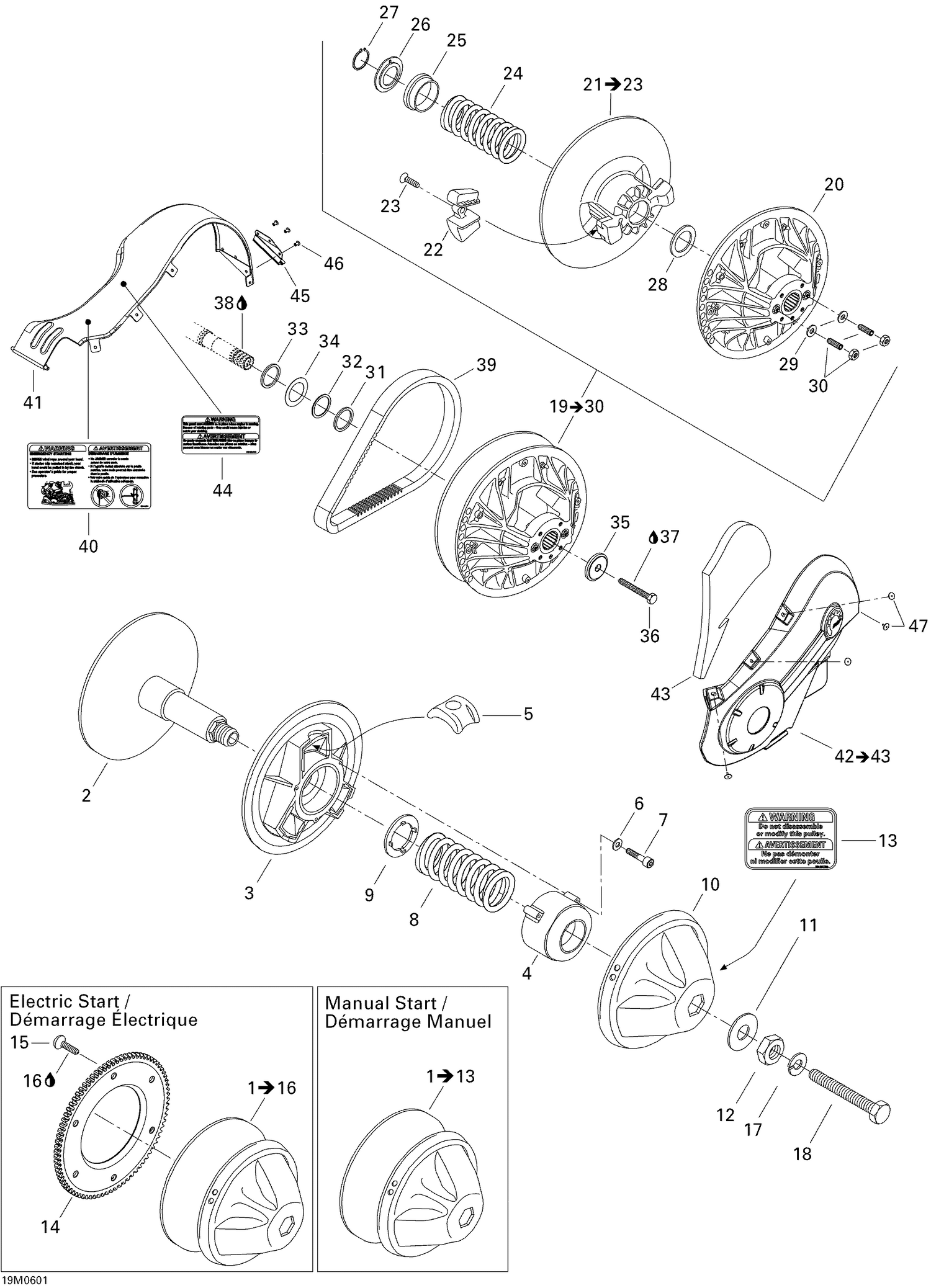

| Ref | Part Number | Description |
|---|
| 2 |
415129124 |
Inner Flange |
| 3 |
417126692 |
SLIDING FLANGE - Call your local BRP dealership |
| 4 |
415128602 |
SPRING COVER - Call your local BRP dealership |
| 5 |
415129126 |
Unit |
| 6 |
420245370 |
WASHER - Call your local BRP dealership |
| 7 |
415128606 |
SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership |
| 8 |
415129151 |
SPRING, VIOLET-PINK-PINK - Call your local BRP dealership |
| 9 |
417126694 |
SPRING SEAT - Call your local BRP dealership |
| 10 |
415128609 |
Cap |
| 11 |
415128610 |
WASHER - Call your local BRP dealership |
| 12 |
417118300 |
NUT - Call your local BRP dealership |
| 13 |
516001726 |
Security Label |
| 17 |
392002800 |
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership |
| 18 |
417113800 |
BOLT - Call your local BRP dealership |
| 20 |
415129046 |
FIXED FLANGE - Call your local BRP dealership |
| 22 |
Not |
Available As Spare Part - Slider Shoe |
| 23 |
Not |
Available As Spare Part - Screw |
| 24 |
415129048 |
Spring, Blue-white-orange |
| 25 |
415129049 |
LOCK RING - Call your local BRP dealership |
| 26 |
415129050 |
Washer |
| 27 |
415129051 |
STOPPER SPRING - Call your local BRP dealership |
| 28 |
415129052 |
SPRING PROTECTOR - Call your local BRP dealership |
| 29 |
420245370 |
WASHER - Call your local BRP dealership |
| 30 |
415129076 |
SCREW & NUT ASSY. - Call your local BRP dealership |
| 31 |
417300252 |
Spacer |
| 32 |
417300265 |
Spacer |
| 33 |
417300252 |
Spacer |
| 34 |
504112000 |
Shim |
| 35 |
517302322 |
Strength Washer |
| 36 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 37 |
293800060 |
Loctite 243, 10 ml |
| 38 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 39 |
417300334 |
Drive Belt This part replaces 417300298. |
| 40 |
516002674 |
EMERGENCY STARTING LABEL - Call your local BRP dealership |
| 41 |
417300276 |
BELT GUARD - Call your local BRP dealership |
| 43 |
417300246 |
Foam |
| 44 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership |
| 45 |
417300216 |
BELT GUARD BRACKET - Call your local BRP dealership |
| 46 |
390909200 |
Avex Rivet |
