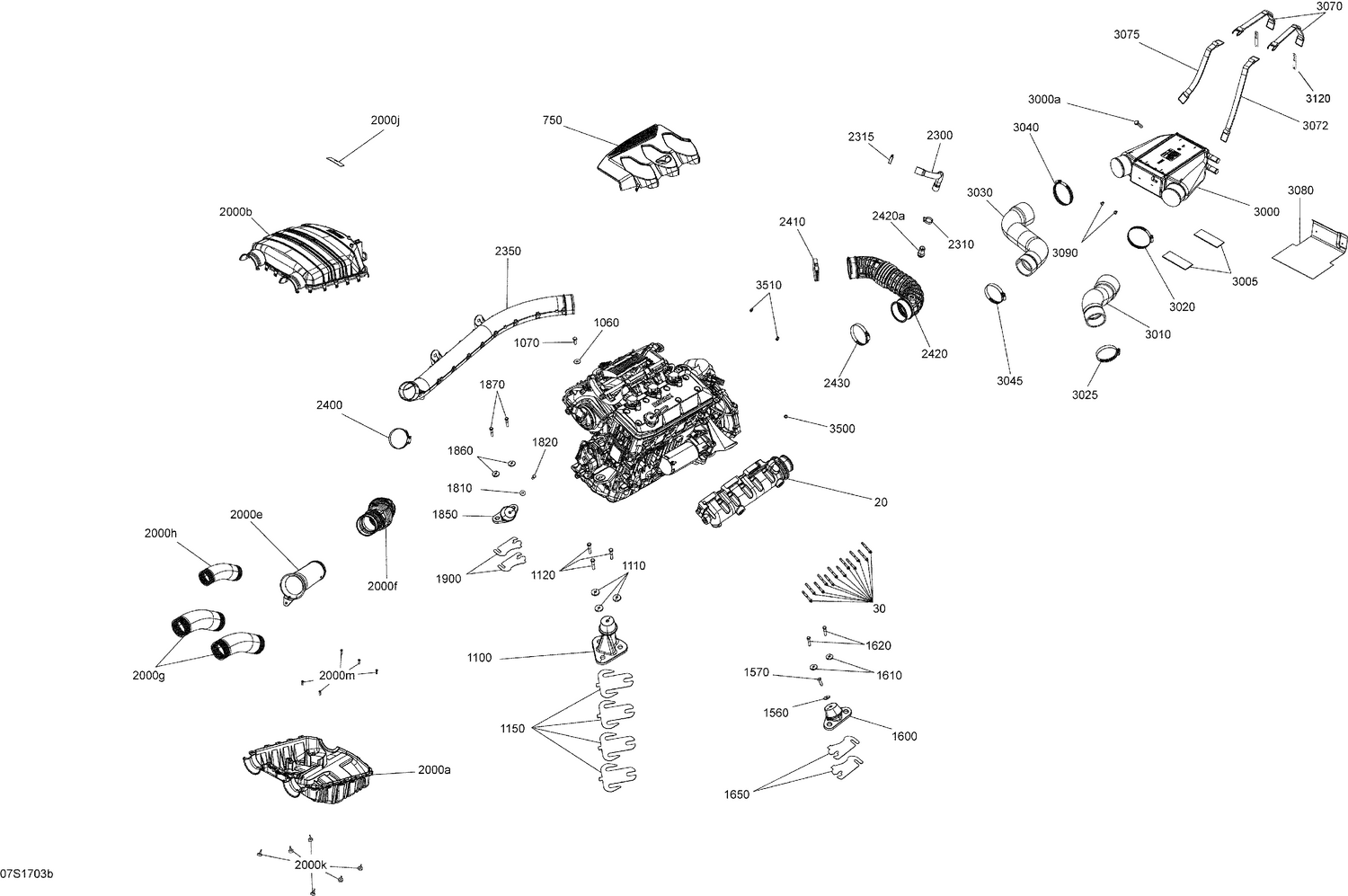

01- Engine - All Models
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 296000422 | Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001553. |
| 30 | 420641198 | Torx Flange Screw M6 X 45 |
| 1060 | 234082600 | Flat Washer 8 mm, Stainless |
| 1070 | 207382560 | Hex. Screw M8 X 25, Scotch Grip |
| 1100 | 270000886 | Rubber Mount |
| 1110 | 250200018 | Cone Washer |
| 1120 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 1150 | 270000770 | Shim 1.3 mm |
| 1560 | 234082600 | Flat Washer 8 mm, Stainless |
| 1570 | 207382560 | Hex. Screw M8 X 25, Scotch Grip |
| 1600 | 270001081 | Engine Support Ass'y This part replaces 270000882. |
| 1610 | 250200018 | Cone Washer |
| 1620 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 1650 | 270000762 | Shim 1.3 mm |
| 1810 | 234082600 | Flat Washer 8 mm, Stainless |
| 1820 | 207382560 | Hex. Screw M8 X 25, Scotch Grip |
| 1850 | 270001081 | Engine Support Ass'y This part replaces 270000882. |
| 1860 | 250200018 | Cone Washer |
| 1870 | 250000782 | Hexagonal Head Cap Screw M8 X 45 |
| 1900 | 270000762 | Shim 1.3 mm |
| 2000e | 273000359 | Intake Hose |
| 2000f | 273000322 | HOSE CONNECTOR - Call your local BRP dealership |
| 2000g | 273000290 | Air Silencer Hose |
| 2000j | 219903177 | Air Silencer Notice Decal |
| 2000k | 708000759 | Rubber Stopper |
| 2000m | 250000287 | Flange Torx Screw K40 X 16 |
| 2300 | 270000950 | Formed Hose |
| 2310 | 293650051 | Tridon Gear Clamp |
| 2315 | 293650051 | Tridon Gear Clamp |
| 2350 | 273000233 | HOSE INTAKE - Call your local BRP dealership |
| 2400 | 293650179 | Tridon Clamp |
| 2410 | 293650179 | Tridon Clamp |
| 2420a | 273000234 | Breather Valve |
| 2430 | 293650179 | Tridon Clamp |
| 3000a | 271001942 | Anode Zinc |
| 3020 | 293650244 | Tridon Gear Clamp |
| 3025 | 293650179 | Tridon Clamp |
| 3040 | 293650244 | Tridon Gear Clamp |
| 3045 | 293650179 | Tridon Clamp |
| 3090 | 293730016 | Black, Dart |
| 3500 | 293750002 | Tie Wrap 142 mm |
