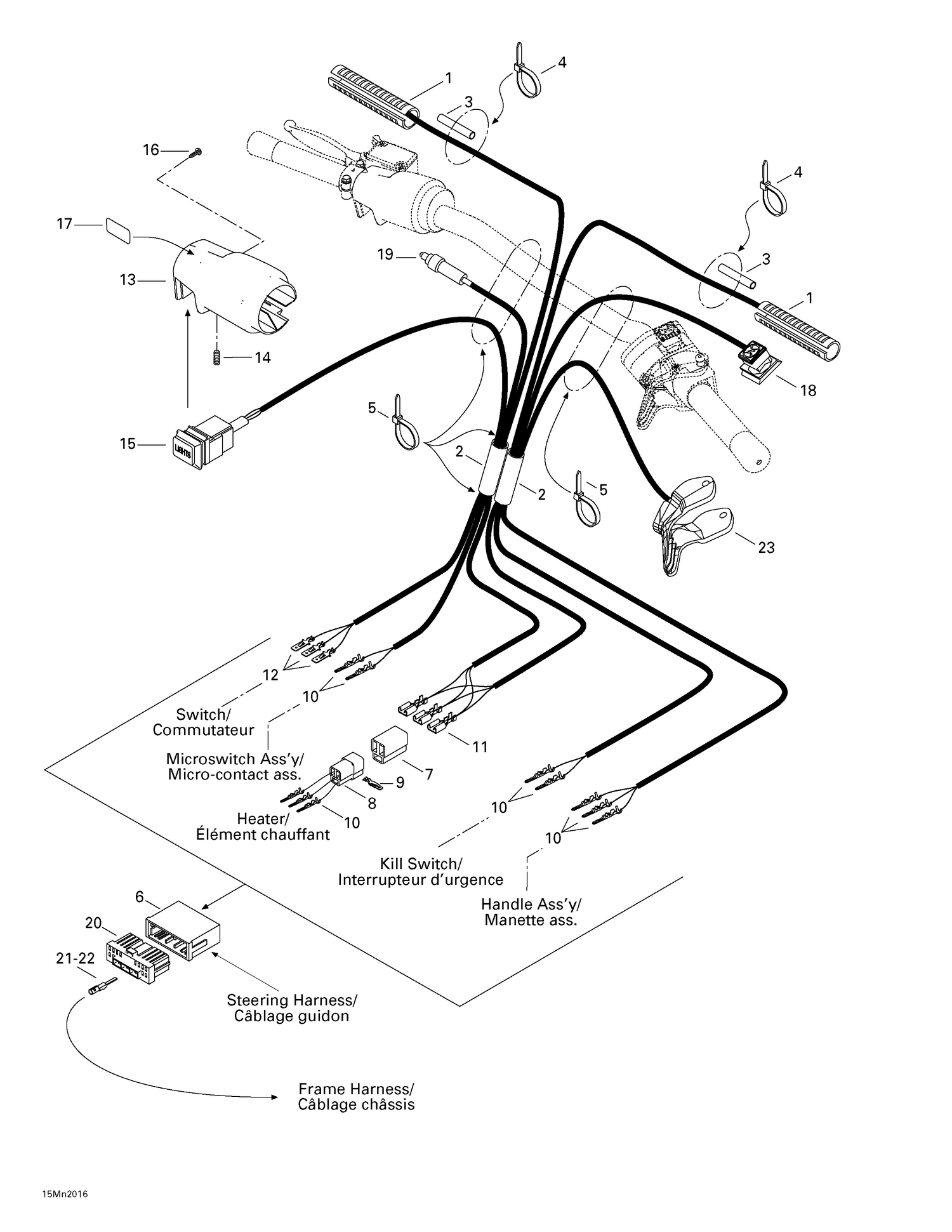

| Ref | Part Number | Description |
|---|
| 1 |
515175573 |
Heating Grip This part replaces 515175162. |
| 2 |
515175314 |
GAINE LOW TEMP.VINYL - Call your local BRP dealership |
| 3 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 4 |
293750001 |
Tie Wrap 94 mm |
| 5 |
414115200 |
Tie-Rap 180 mm |
| 6 |
515175352 |
MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 7 |
409204300 |
Female Housing |
| 8 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 9 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 10 |
515175232 |
Male Terminal |
| 11 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 12 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 13 |
515175307 |
Brake Housing |
| 14 |
414440800 |
Socket Set Screw M8 X 10 |
| 15 |
515175393 |
Switch |
| 16 |
250000022 |
SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 17 |
415025500 |
Switch Decal |
| 18 |
515175410 |
Kill Switch |
| 19 |
507032366 |
Microswitch This part replaces 507032284. |
| 20 |
515175350 |
Female Terminal Housing, 13 Circuits |
| 21 |
Not |
Available As Spare Part - Femelle Terminal |
| 22 |
Not |
Available As Spare Part - Femelle Terminal |
