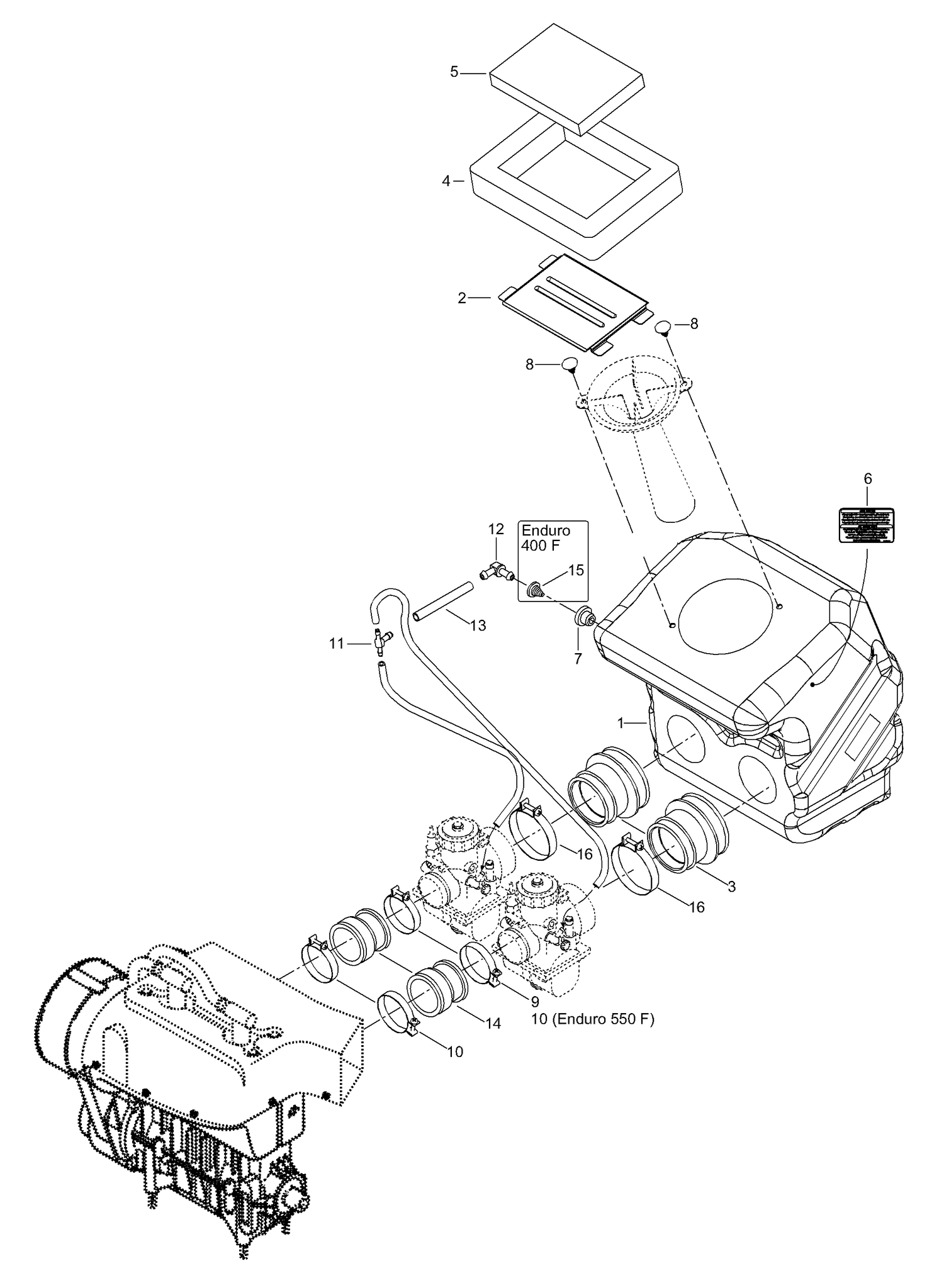

| Ref | Part Number | Description |
|---|
| 2 |
508000004 |
INTAKE GRILL - Call your local BRP dealership |
| 3 |
508000203 |
Intake adaptor |
| 4 |
508000245 |
Lower foam |
| 5 |
508000154 |
Air filter |
| 6 |
516001191 |
Caution Label, Air Intake |
| 7 |
513032908 |
Grommet |
| 8 |
414644300 |
Black, Dart |
| 9 |
408803800 |
Clamp |
| 10 |
414532700 |
COLLAR - Call your local BRP dealership |
| 11 |
Not |
Available As Spare Part - T-fitting - DOES NOT APPLY TO THIS MODEL |
| 12 |
Not |
Available As Spare Part - Connector - DOES NOT APPLY TO THIS MODEL |
| 13 |
Not |
Available As Spare Part - Hose 6.5/9.5 - DOES NOT APPLY TO THIS MODEL |
| 14 |
512059396 |
Carburetor adaptor |
| 15 |
572051500 |
Cap |
