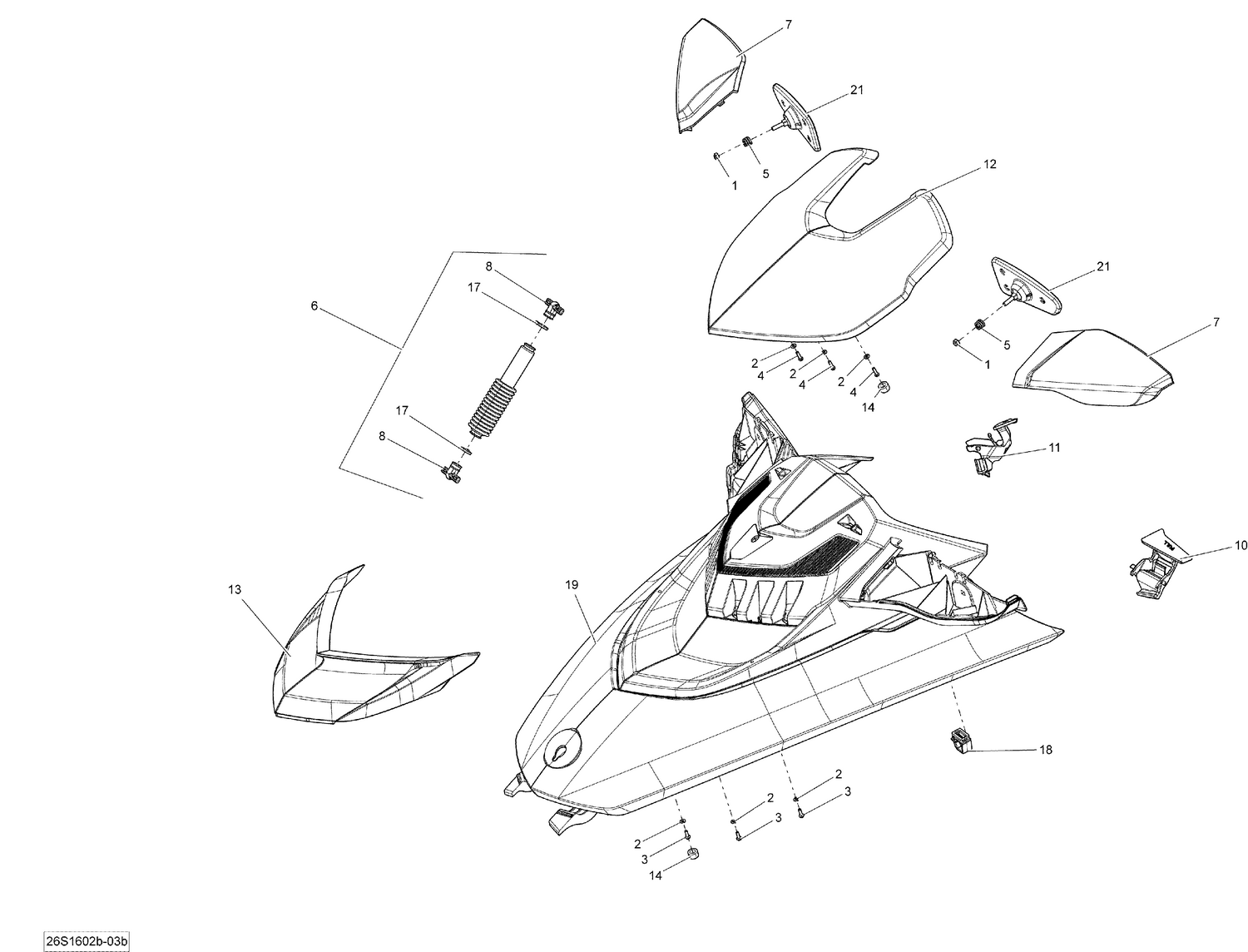

09- Front Cover - With Suspension
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 232561200 | Brass Elastic Stop Nut M6 |
| 2 | 234041600 | Flat Washer 4 mm, Stainless |
| 3 | 241141360 | Hex. Flange Screw K40 X 13 |
| 4 | 241141660 | Hex. Flange Screw K40 X 16 |
| 5 | 269500453 | Mirror Spring |
| 6 | 269501664 | Shock Absorber |
| 7 | 269502203 | Black LH Mirror Housing |
| 7 | 269502204 | Black RH Mirror Housing |
| 8 | 269501984 | Shock Absorber End Fitting This part replaces 269501717. |
| 10 | 269501964 | Left Latch |
| 11 | 269501965 | Right Latch |
| 12 | 269502209 | Black Upper Front Deflector |
| 13 | Not | Available As Spare Part - Not Available |
| 14 | 291001203 | Spacer |
| 17 | 293750001 | Tie Wrap 94 mm |
| 18 | 293830135 | Rubber Bumper |
| 19 | Not | Available As Spare Part - Not Available |
| 21 | 269501920 | RH Mirror Ass'y |
